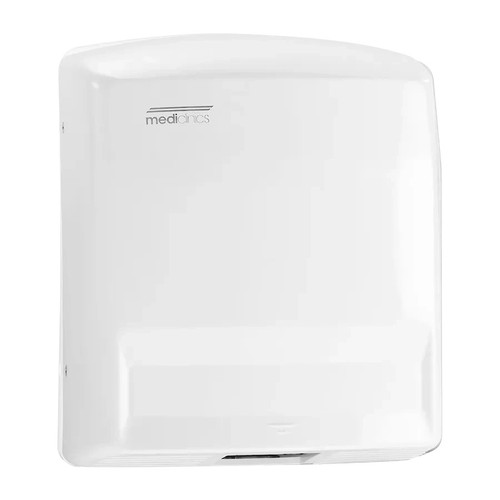

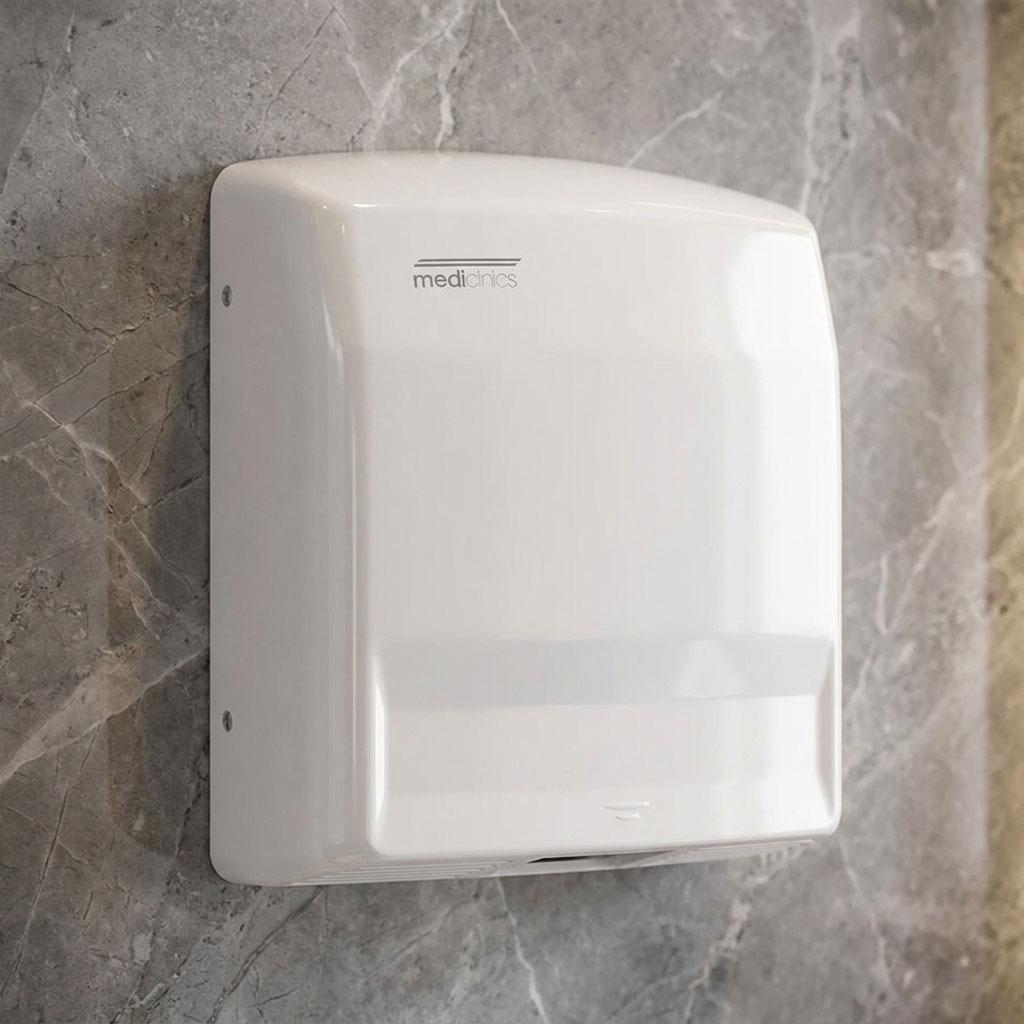

This hand dryer is a high-performance solution engineered for medium to small washrooms with medium to low traffic frequency, providing a reliable and efficient drying experience. Constructed with a 3mm thick white ABS thermoplastic cover and a fire-resistant PP-V0 plastic base, the unit features a modern one-piece design that ensures durability and aesthetic integration into various professional environments. The device is Class II rated and incorporates a Zamak air outlet grill along with a NiCr heating element mounted on a mica frame for optimal thermal management and safety.
Operating on a 220V-240V supply, the system utilizes a maintenance-free 140W induction motor that reaches 2,800 RPM to deliver an effective airflow of 215 m³/h and an air velocity of 50km/h. This configuration results in a drying time of approximately 38 seconds, with air temperatures reaching 57°C at a 10cm distance. The unit consumes 7A of current and features a total power rating of 1,640W, with 1,500W dedicated to the heating element, ensuring consistent performance during high-demand periods.
Advanced automation is provided by a fully adjustable infrared electronic detection sensor, which allows for a customizable detection range between 5cm and 25cm via an integrated potentiometer. The dryer initiates automatically when hands are placed under the air outlet and continues operation as long as they remain within the sensor's field, stopping precisely 2 seconds after removal to conserve energy. Safety is prioritized through the inclusion of thermal cut-offs in both the motor and the heating element, protecting the internal components from overheating during extended use.
With dimensions of 303mm in height, 253mm in width, and 150mm in depth, this 3kg surface-mounted unit is designed for straightforward installation using a base plate with four 6mm diameter holes. It operates at a noise level of 57 dBA at 2 meters, complying with UNE EN ISO 11201:2010 V2 standards for acoustic comfort. The product meets rigorous international standards, including IEC 60335-1 and IEC 60335-2-23, and holds multiple certifications such as CE, GS, EMC, RoHS, and the CB Scheme, guaranteeing compliance and quality for commercial applications.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Medium/small washrooms; medium/low-traffic frequency
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: IEC 60335-1; IEC 60335-2-23
COLOUR: White
MATERIAL: ABS thermoplastic (cover); fire resistant plastic PP-V0 (base, fan scroll and fan wheel); Zamak (air outlet grill); NiCr heating element on mica frame
IP RATING: IP21 (indoors)
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 1,640W

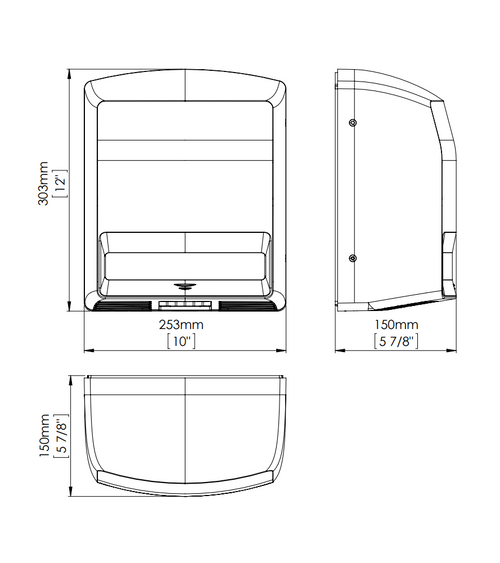

DIMENSIONS: 303mm (height) x 253mm (width) x 150mm (depth)
WEIGHT: 3kg
MOUNTING: Surface mounted (wall mounting)
CLASS: II
OPERATION: Place the hands under the air outlet; the dryer starts automatically and continues operating while the hands remain within the sensor detection range; stops 2 seconds after the hands are removed from the airflow
RPM: 2,800
MOTOR: 140W (induction motor)
NOISE: 57 dBA (at 2m; measured according to UNE EN ISO 11201:2010 V2)
MOTION SENSOR: Yes (fully adjustable 5-25 cm IR electronic detection sensor by means of a potentiometer)
INSTALLATION: Base plate with 4 Ø 6 mm holes for wall mounting
FEATURES: Maintenance-free induction motor; safety thermal cut-off installed in the motor and heating element; one-piece cover; modern design
CONSUMPTION: 7A
HEATING ELEMENT: 1,500W (waved wire NiCr on mica frame with thermal cut-off)
COVER THICKNESS: 3mm
DRYING TIME: 38 seconds
EFFECTIVE AIRFLOW: 215 m³/h (3,590 L/min)
AIR SPEED: 50km/h
AIR TEMPERATURE: 57°C (at 10cm distance/21ºC)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
