This hand dryer is a high-performance solution engineered for medium to small washrooms with medium to low traffic frequency. It features a robust 3mm thick ABS thermoplastic cover and a fire-resistant plastic PP-V0 base, ensuring durability and safety in various environments. The unit is designed for surface mounting and incorporates a Zamak air outlet grill, providing a modern aesthetic while maintaining structural integrity.
Technical performance is driven by a maintenance-free 140W induction motor operating at 2,800 RPM, which generates an effective airflow of 215 cubic meters per hour. The integrated NiCr heating element provides 1,500W of power, resulting in a total wattage of 1,640W and an air temperature of 57 degrees Celsius at a 10cm distance. This configuration enables an efficient drying time of approximately 38 seconds per cycle, initiated by a manual push-button mechanism for controlled operation.
Safety and compliance are paramount, with the device meeting IEC 60335-1 and IEC 60335-2-23 standards and carrying certifications such as CE, GS, EMC, and RoHS. The internal components are protected by a safety thermal cut-off installed in both the motor and the heating element to prevent overheating.
Operational noise is maintained at a comfortable 57 dBA measured at two meters, making it suitable for environments where acoustic control is necessary. The installation process is streamlined via a base plate with four 6mm diameter holes for secure wall mounting. This comprehensive drying system combines energy efficiency with a 45-second continuous operation cycle, offering a dependable and hygienic solution for professional sanitary facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Medium/small washrooms; medium/low-traffic frequency
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: IEC 60335-1; IEC 60335-2-23
COLOUR: White
MATERIAL: ABS thermoplastic (cover); fire resistant plastic PP-V0 (base, fan scroll and fan wheel); Zamak (air outlet grill); NiCr heating element on mica frame
IP RATING: IP21 (indoors)
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 1,640W

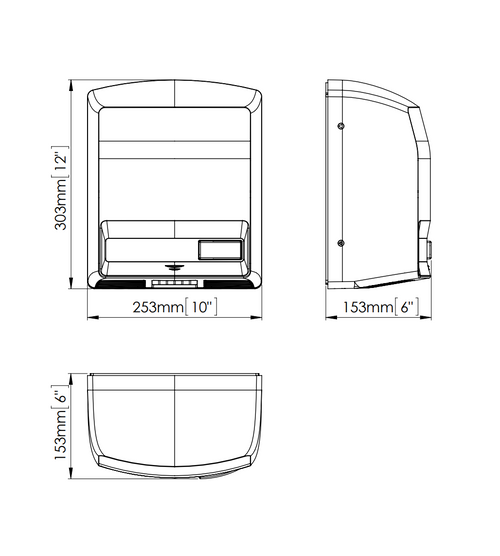

DIMENSIONS: 303mm (height) x 253mm (width) x 153mm (depth)
WEIGHT: 3kg
MOUNTING: Surface mounted (wall mounting)
CLASS: II
OPERATION: Press the push-button to initiate the drying process; place both hands under the air outlet and rub them together; continuous operation for 45 seconds per cycle
RPM: 2,800
MOTOR: 140W (induction motor)
NOISE: 57 dBA (at 2m; measured according to UNE EN ISO 11201:2010 V2)
INSTALLATION: Base plate with 4 Ø 6 mm holes for wall mounting
FEATURES: Maintenance-free induction motor; safety thermal cut-off installed in the motor and heating element; one-piece cover; modern design
CONSUMPTION: 7A
HEATING ELEMENT POWER: 1,500W
COVER THICKNESS: 3mm
DRYING TIME: 38 seconds
EFFECTIVE AIRFLOW: 215 m³/h (3,590 L/min)
AIR SPEED: 50km/h
AIR TEMPERATURE: 57°C (at 10cm distance/21ºC)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
