This hand dryer is a high-performance solution engineered for high-traffic environments such as airports, large hotels, and sports centers. Featuring a robust 1.5mm thick steel cover with a white finish and an aluminium base plate, the unit is designed for long-term durability and resistance to vandalism. The internal architecture includes a fire-resistant plastic fan scroll and an aluminium fan wheel, ensuring structural integrity and safety during continuous operation.
Technical performance is driven by a 250W universal brush motor operating at 5,500 RPM, paired with a 2000W NiCr heating element to deliver a total power output of 2250W. This configuration generates an air speed of 100km/h and an air temperature of 50 degrees Celsius at a 10cm distance, facilitating an efficient drying time of approximately 29 seconds. The motor is classified as Class F and includes a thermal cut-off for enhanced operational safety and reliability.
User interaction is managed via a manual push-button mechanism that initiates a 35-second drying cycle, complemented by a 360-degree rotating nozzle for versatile positioning. To ensure a comfortable user experience, the device is equipped with four silent blocks integrated into the base plate to eliminate vibrations and maintain low noise levels. The unit is rated IP21 and Class I, operating on a standard 220V-240V supply with a 10A consumption rate.
Installation is streamlined through a base plate featuring four 8mm mounting holes, making it suitable for heavy-duty wall applications in official organizations and recreational areas. The product is certified under CE, GS, EMC, RoHS, and CB Scheme standards, reflecting its compliance with international quality and safety regulations. With its combination of powerful airflow and easy maintenance, this hand dryer represents a reliable choice for demanding commercial sanitary facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Airports; large hotels; sport centers; large recreational areas; large official organizations; heavy traffic bathrooms
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COLOUR: White (finish)
MATERIAL: Steel (cover); aluminium (base plate); fire resistant plastic UL 94-V0 (fan scroll); aluminium (fan wheel); chrome plated Zamak (nozzle)
IP RATING: IP21 (indoors)
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 2250W

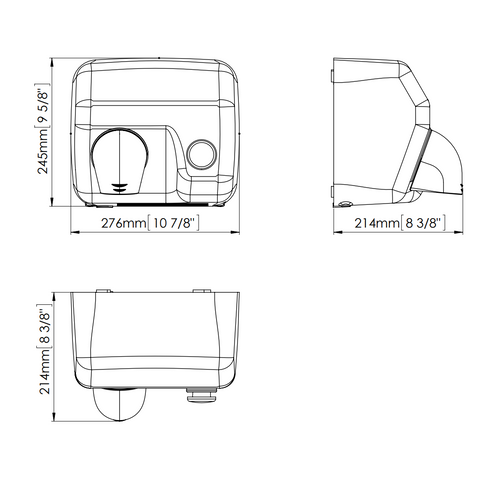

DIMENSIONS: 245mm (height) x 276mm (width) x 214mm (depth)
WEIGHT: 4.65kg
CLASS: I
RPM: 5,500
MOTOR: 250W; universal brush motor; Class F; thermal cut-off included
OPERATION: Press push-button to initiate drying process; place hands under the rotating nozzle and rub hands together; continuous operation for 35 seconds per cycle
INSTALLATION: Base plate with 4 Ø 8 mm holes for wall mounting
HEATING ELEMENT: 2000W (NiCr wire on mica frame with thermal cut-off)
COVER THICKNESS: 1.5mm
DRYING TIME: 29 seconds
AIR SPEED: 100km/h
AIR TEMPERATURE: 50°C (at 10cm distance/21°C)
CONSUMPTION: 10A
FEATURES: Easy maintenance; low noise levels; high level of user safety; powerful airflow; 360° rotating nozzle; anti-vandal features; long durability; complete reliability; silent blocks (4 units assembled in the rear part of the base plate to eliminate vibrations)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme
