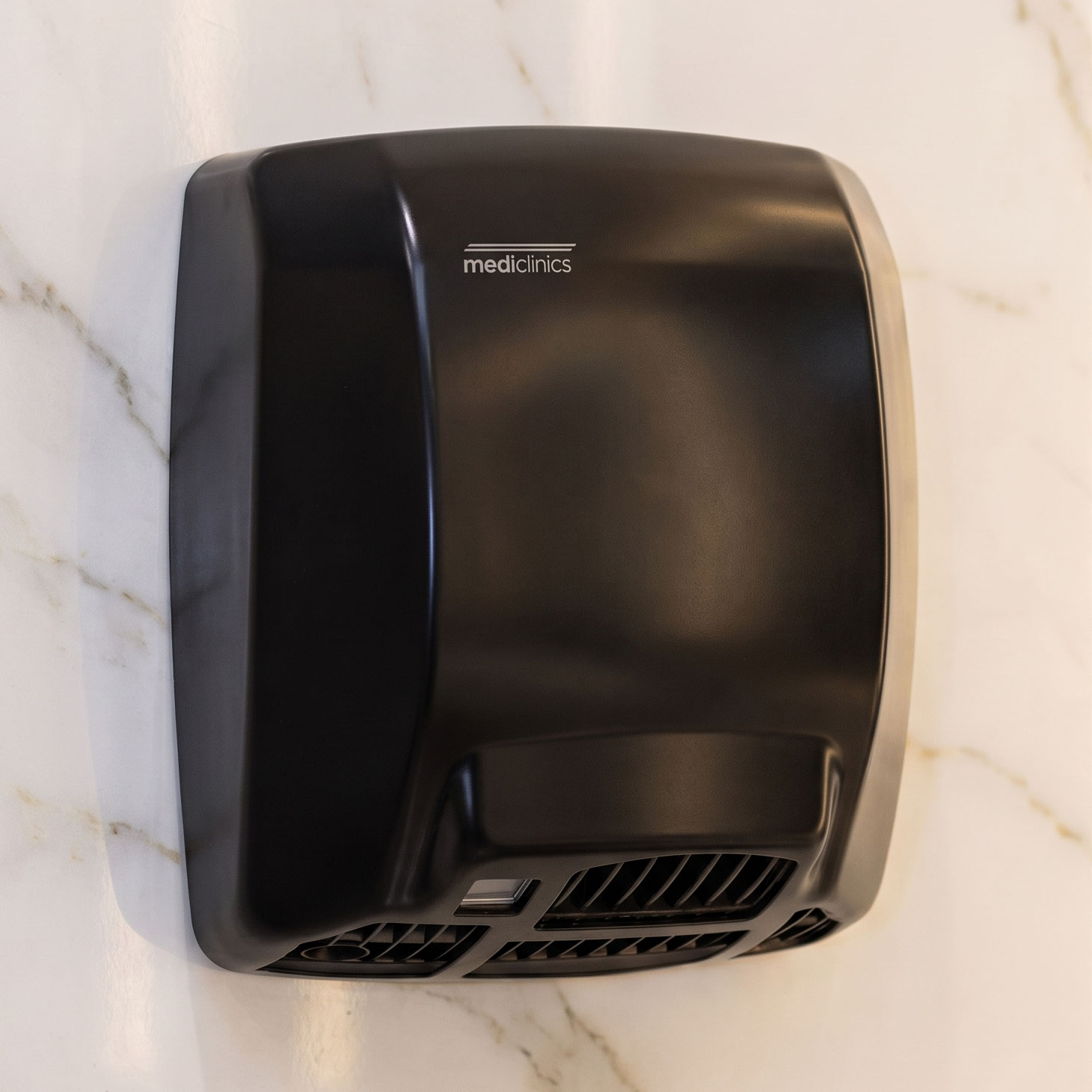

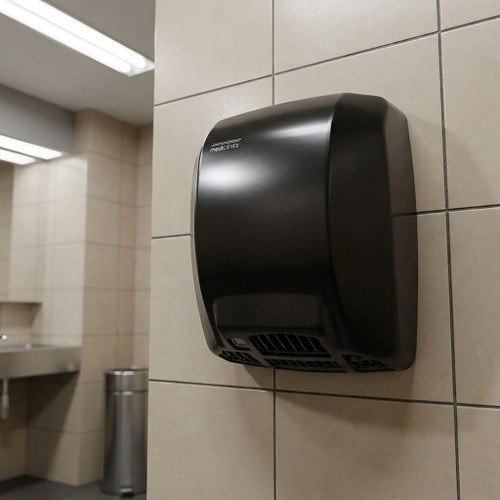

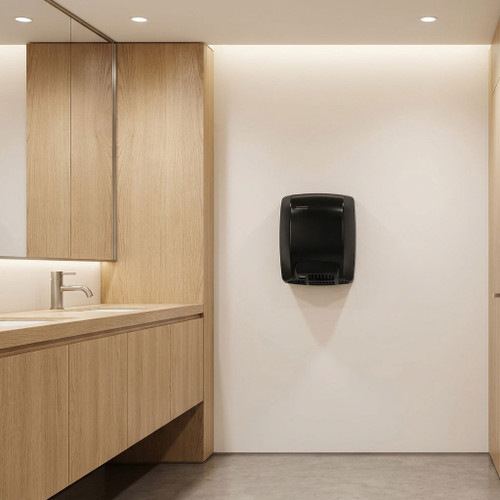

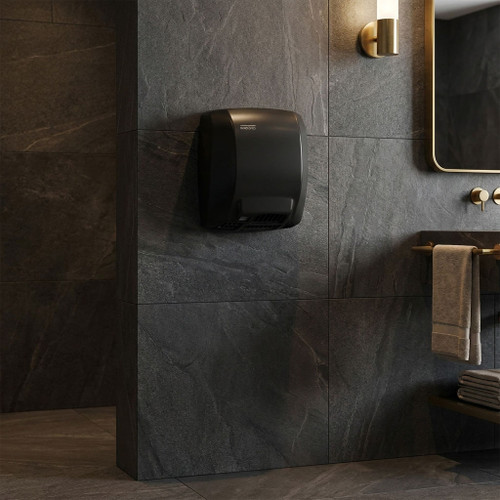

This hand dryer is a high-performance solution engineered for high-traffic environments such as airports, large hotels, and sports centers. It features a robust 1.5mm thick steel cover with a black finish and a base constructed from fire-resistant plastic PA 6-V0, ensuring durability and safety in demanding public spaces. The unit is designed for wall mounting and incorporates silent blocks to damp mechanical vibrations, providing a stable and quiet operation at 65 dBA.
Technically advanced, the device utilizes Logic Dry technology to automatically regulate the outlet air temperature across four possible levels, optimizing energy efficiency and user comfort. It is equipped with a fully adjustable infrared electronic detection sensor that allows for hands-free operation within a 5 to 25 cm range. The universal brush motor and 2,500W heating element deliver an effective airflow of 450 cubic meters per hour at a speed of 95km/h, achieving a drying time of approximately 29 seconds.
Safety and longevity are prioritized through the inclusion of thermal limiters in both the heating element and the motor, alongside a safety thermal cut-off mechanism. The dryer includes anti-vandalism features and an automatic disconnection function that triggers after 120 seconds of continuous use to prevent misuse and conserve energy. With a Class II electrical rating and IP23 protection, the unit is built to withstand the rigors of official organizations and large recreational areas while maintaining a long life cycle.
This professional-grade appliance operates on a voltage range of 220V to 240V and offers adjustable wattage from 250W to 2,750W to suit specific installation requirements. It complies with international standards including CE, GS, EMC, RoHS, and the CB Scheme, reflecting its high-quality construction and reliability. Measuring 325mm in height and 275mm in width, this compact yet powerful hand dryer provides an ecological energy-saving solution for modern commercial facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Airports; large hotels; sports centers; large recreational areas; official organizations
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COLOUR: Black (finish)
MATERIAL: Steel (cover); fire resistant plastic PA 6-V0 (base and fan scroll); aluminium (fan wheel); NiCr heating element on mica frame
IP RATING: IP23
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 250W-2,750W (adjustable)

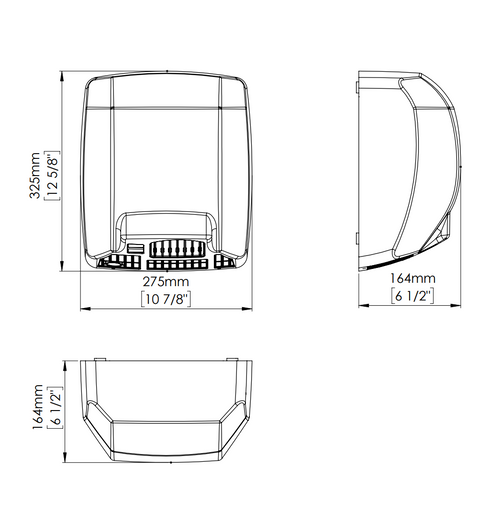

DIMENSIONS: 325mm (height) x 275mm (width) x 164mm (depth)
WEIGHT: 4.25kg
MOUNTING: Wall mounting
CLASS: II
RPM: 4,500
MOTOR: 250W (universal brush motor)
NOISE: 65 dBA (at 2m; measured according to UNE EN ISO 11201:2010 V2)
MOTION SENSOR: Yes (fully adjustable 5cm-25cm IR electronic detection sensor by means of a potentiometer)
OPERATION: Dryer starts automatically when hands are placed under the air outlet; continues operating while hands remain within sensor detection range; stops 2 seconds after hands are removed; automatic disconnection after 120 seconds of continuous use
INSTALLATION: Base plate with 4 Ø 8 mm holes for wall mounting; includes silent blocks to damp mechanical vibrations
FEATURES: Logic Dry technology (automatically regulates outlet air temperature to 4 possible levels); anti-vandalism features; safety thermal limiters in heating element and motor; safety thermal cut-off; ecologic energy saving feature; longer life cycle
CONSUMPTION: 1.2A-12A
HEATING ELEMENT: 2,500W
COVER THICKNESS: 1.5mm
DRYING TIME: 29 seconds
EFFECTIVE AIRFLOW: 450 m³/h (7,500 L/min)
AIR SPEED: 95km/h
AIR TEMPERATURE: 50°C (at 10 cm distance/21°C)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme
