This bathroom heater fan is a versatile 3-in-1 climate control solution designed for efficient ventilation, radiant heating and integrated illumination within residential bathroom environments. Finished in black, the unit features a robust metal construction and a streamlined fascia measuring 457mm x 360mm, allowing it to sit discreetly within modern ceiling layouts while maintaining a durable and refined appearance.
Ventilation performance is delivered through a high-efficiency ball bearing motor rated at 60W, producing an air extraction capacity of up to 460m³/hr. This airflow capability supports effective removal of steam, humidity and airborne contaminants, contributing to improved indoor air quality. The system connects to standard ducting via a 150mm outlet and is designed for recessed installation using a 440mm x 320mm cutout, ensuring secure and stable ceiling integration.
Lighting is provided by an integrated fixed LED system with a total output of 13W, offering selectable Tri-CCT functionality to suit different operational requirements. Colour temperature options include 3000K, 4000K and 5000K, delivering luminous outputs of 900lm, 950lm and 900lm respectively. This flexibility allows the fitting to transition seamlessly between warm ambient lighting, neutral task illumination and crisp daylight output depending on user preference.
Thermal comfort is achieved through an 800W R7s heat lamp that provides rapid radiant warmth when required. The unit incorporates multiple safety measures, including triple overheating protection via thermostat, thermal cutout and fuse, along with a contact switch activated heat lamp for added operational security. Supplied with a wall controller featuring three independent switches, flexible ducting and a side entry draft stopper, the system supports intuitive control and efficient installation. An IP22 rating confirms suitability for internal bathroom use, while the product is supported by a 2-year warranty on the heat lamp and a 3-year in-home warranty on the unit, ensuring long-term reliability and peace of mind.
COLOUR: Black
MATERIAL: Metal

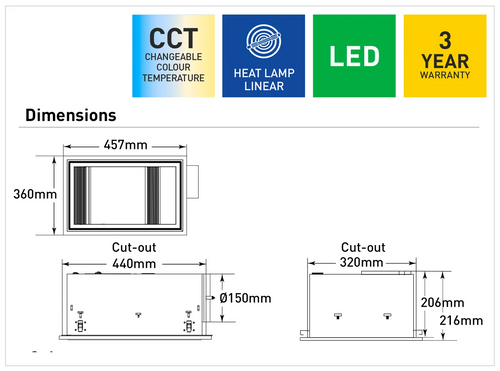

DIMENSIONS: 457mm x 360mm x 216mm
CUTOUT: 440mm x 320mm
DUCT OUTLET: 150mm
AIRFLOW: 460m³/hr
MOTOR: Ball bearing motor
MOTOR WATTAGE: 60W
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 13W
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 900lm (3000K), 950lm (4000K), 900lm (5000K)
HEAT WATTAGE: 800W (1 x R7s)
IP RATING: IP22
INCLUDES: Wall controller with 3 switches, flexible duct, side entry draft stopper
FEATURES: Triple overheating protection (thermostat, thermal cutout and fuse); contact switch activated heat lamp
WARRANTY: 2 years (heat lamp), 3 years (in-home)
