This bathroom heater fan is a high-performance 3-in-1 ventilation solution designed for residential bathroom environments, combining efficient air extraction, radiant heating and integrated LED illumination within a single recessed unit. Finished in black, the fitting features a durable metal housing and a low-profile fascia measuring 560mm x 360mm, allowing it to integrate cleanly into modern ceiling designs while maintaining a discreet visual presence.
Engineered for effective ventilation, the unit delivers an air extraction rate of up to 500m³/hr, supporting rapid removal of steam and airborne moisture to help maintain indoor air quality. The ball bearing motor is rated at 60W and is designed for reliable, consistent operation, while the 150mm duct outlet supports efficient airflow when connected to standard ducting systems. The recessed installation requires a cutout of 540mm x 320mm, ensuring a secure and stable ceiling fit.
Illumination is provided by an integrated fixed LED system with a total LED wattage of 22W, delivering selectable Tri-CCT output to suit different lighting preferences and functional requirements. The fitting offers colour temperature options of 3000K, 4000K and 5000K, with corresponding luminous outputs of 1000lm, 1200lm and 1100lm, allowing the light to be tuned for warm ambient use, neutral task lighting or crisp daylight illumination as required.
For thermal comfort, the unit incorporates an 800W R7s heat lamp designed to provide fast, direct radiant warmth during cooler conditions. Supplied with a wall controller featuring three dedicated switches, along with flexible ducting and a side entry draft stopper, the system supports intuitive operation and efficient installation. Backed by a 2-year warranty on the heat lamp and a 3-year in-home warranty on the unit, this bathroom heater fan delivers a dependable and integrated climate control solution for everyday residential use.
COLOUR: Black
MATERIAL: Metal housing

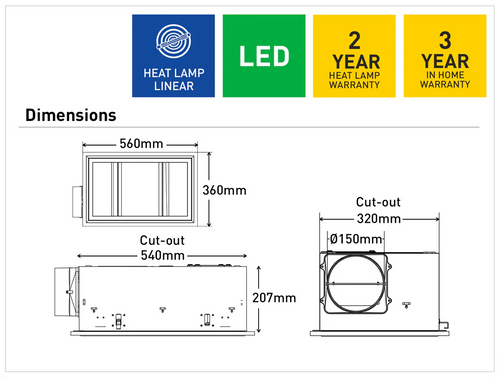

DIMENSIONS: 560mm x 360mm x 207mm
CUTOUT: 540mm x 320mm
DUCT OUTLET: 150mm (diameter)
AIRFLOW: 500m³/hr
MOTOR: Ball bearing motor
MOTOR WATTAGE: 60W
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 22W (2 x 11W)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 1000lm (3000K), 1200lm (4000K), 1100lm (5000K)
HEAT WATTAGE: 800W (1 x R7s)
INCLUDES: Wall controller with 3 switches, flexible duct, side entry draft stopper
FEATURES: High air extraction
WARRANTY: 2 years (heat lamp), 3 years (in-home)
