This bathroom heater is a compact yet powerful 3-in-1 ventilation solution engineered to deliver efficient heating, lighting, and air extraction within small to medium-sized bathroom environments. Finished in matt black, it integrates seamlessly with a wide range of modern interior colour schemes. With a robust 1000W R7s heat tube and high-performance ball bearing motor, it ensures rapid thermal response and dependable air circulation at a rate of 420m³/hr. The integrated 10W LED panel offers tricolour lighting functionality, allowing users to toggle between warm white, cool white, and daylight white colour temperatures, achieving a total luminous output of 800lm to suit diverse lighting preferences.
Designed with structural precision and user safety in mind, the housing comprises durable polypropylene (PP) paired with an aluminium fascia and frosted white glass diffuser for a refined, minimal aesthetic. Its ingress protection rating of IPX2 renders it suitable for humid environments, while the built-in thermal overload protection and included back draft stopper further enhance operational safety. The unit's quiet operation, with a noise rating of less than 40dB, ensures minimal disruption to ambient acoustics.
Installation efficiency is supported by a recessed design requiring a minimum ceiling depth of 220mm and a cutout of 390mm x 325mm. The physical dimensions of 210mm height, 440mm width, and 350mm depth facilitate streamlined integration into existing ceiling structures. A 125mm side-ducted exhaust port prevents debris ingress and supports effective air discharge. The product is supplied with a 1.5m duct, two clips for secure ducting, an external grille, and a 3-gang wall switch controller for comprehensive control over each function.
Engineered for compatibility with an optional bathroom remote control (not included), this model accommodates enhanced user convenience through remote operation. With an input voltage of 220–240V at 50–60Hz, this bathroom heater is built for compliance with standard residential circuits. It is warranted for two years for in-home use and must be installed by a licensed electrician to ensure performance and compliance. This product offers a highly reliable and scientifically refined solution for bathrooms requiring integrated heating, ventilation, and lighting.
COLOUR: Matt Black
MATERIAL: Polypropylene (PP) housing, aluminium fascia with frosted white glass
IP RATING: IPX2

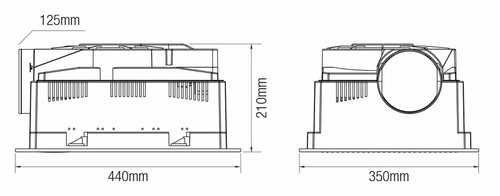

DIMENSIONS: 210mm (height) x 440mm (width) x 350mm (depth)
CUTOUT: 390mm x 325mm
VOLTAGE: 220-240V 50-60Hz
WATTAGE: 60W
DUCTING SIZE: 125mm (at side to prevent object falling through)
AIRFLOW: 420m³/hr
NOISE: <40dB
HEATING WATTAGE: 1000W (1 x R7s heat tube, 238mm)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 10W
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 800lm
MINIMUM CEILING DEPTH: 220mm
CAPABILITIES: Built-in thermal overload protection; back draft stopper included
COMPATIBILITY: Compatible with bathroom remote control (not included)
INCLUDES: 1.5m duct, 2x clips for ducting, 1x external grille, 1x 3 gang wall switch controller
INSTALLATION: By licensed electrician only
WARRANTY: 2 years (in-home warranty)
