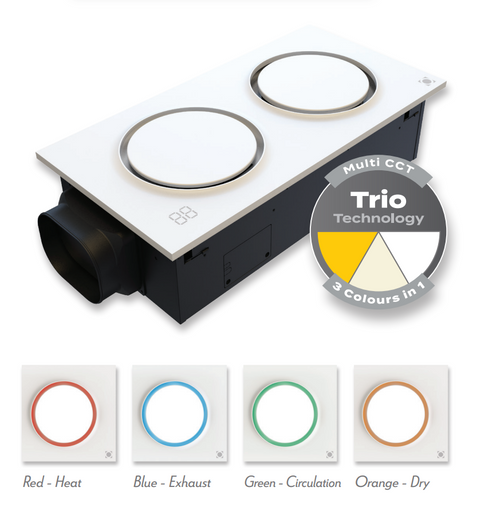

This bathroom heater fan delivers a comprehensive solution for thermal comfort, ventilation, and lighting in residential wet areas. Engineered with a slimline twin circle form factor, the unit integrates six independent functions:heater, exhaust fan, circulating fan, dry heat, ventilation, and illumination. Its 2250W total output is driven by a high-efficiency 75W DC motor, providing powerful yet quiet operation with a noise level of ≤48dB. The 2150W PTC heating element ensures rapid thermal output, while the circulating fan minimises localised heat accumulation and improves ambient distribution across the space.
The lighting component features an integrated 25W LED with Tri-CCT functionality, offering selectable colour temperatures of 3000K (warm white), 4000K (cool white), and 5000K (daylight white). This adjustable lighting system delivers a lumen output ranging from 1500lm to 1850lm depending on the selected setting, supported by a high CRI of ≥80 to ensure accurate colour rendering. The fixed LED chips are optimised for long-term use, providing stable and efficient illumination without the need for globe replacement. A digital display discreetly communicates real-time ambient temperature and mode status.
With a high-performance air extraction rate of 500m³/h and a 150mm duct outlet, this unit ensures effective removal of moisture and odours, thereby reducing condensation and maintaining indoor air quality. The system incorporates patented Heat Breeze Technology to balance heating and ventilation simultaneously, a key feature in preventing humidity-related issues in enclosed environments. Installation requirements include a 595mm x 280mm cutout and a minimum clearance of 200mm, with the fascia measuring 615mm x 315mm to integrate neatly into modern ceilings.

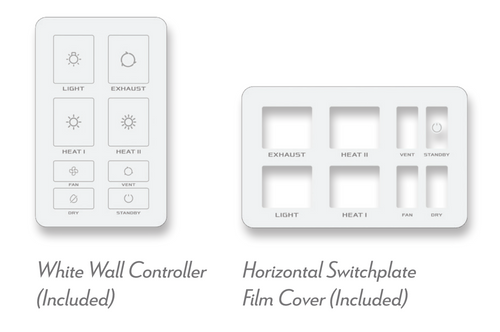

User interface is streamlined through an included 8-switch digital wall controller, finished in white, featuring an ALL-OFF override function for safety and convenience. The controller allows seamless switching between modes and offers visual confirmation through colour-coded indicators. Additional components include a horizontal switchplate film cover, 3m flexible duct, and an external grille, all bundled to simplify installation. This product is backed by a 5-year in-home warranty, underscoring its reliability and build quality for long-term performance in demanding bathroom conditions.
COLOUR: White
IP RATING: IPX2
DIMENSIONS: 615mm x 315mm x 163mm
CUTOUT: 595mm x 280mm
VOLTAGE: 240V AC
WATTAGE: 2250W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 1500lm (3000K), 1850lm (4000K), 1750lm (5000K)
CRI: ≥80
LED WATTAGE: 25W
MOTOR WATTAGE: 75W (DC motor)
AIR EXTRACTION: 500m³/h
HEAT WATTAGE: 2150W
HEAT TYPE: PTC heating element
NOISE: ≤48dB
DUCT SIZE: 150mm
WALL CONTROL: Yes (8-switch digital wall controller with ALL-OFF function)
INSTALLATION: Minimum 200mm height clearance required
CAPABILITIES: Slimline twin circle design; circulating fan to reduce temperature build-up; digital temperature display; mode colour indicator
INCLUDES: 8-switch digital wall controller (white), horizontal switchplate film cover, 3m flexible duct, exterior grille
OPERATION: Heater, exhaust fan, circulating fan, dry heat, vent, and light; Heat Breeze Technology with ambient temperature display; auto shut-off after 2 hours (override available)
WARRANTY: 5 years (in-home)
