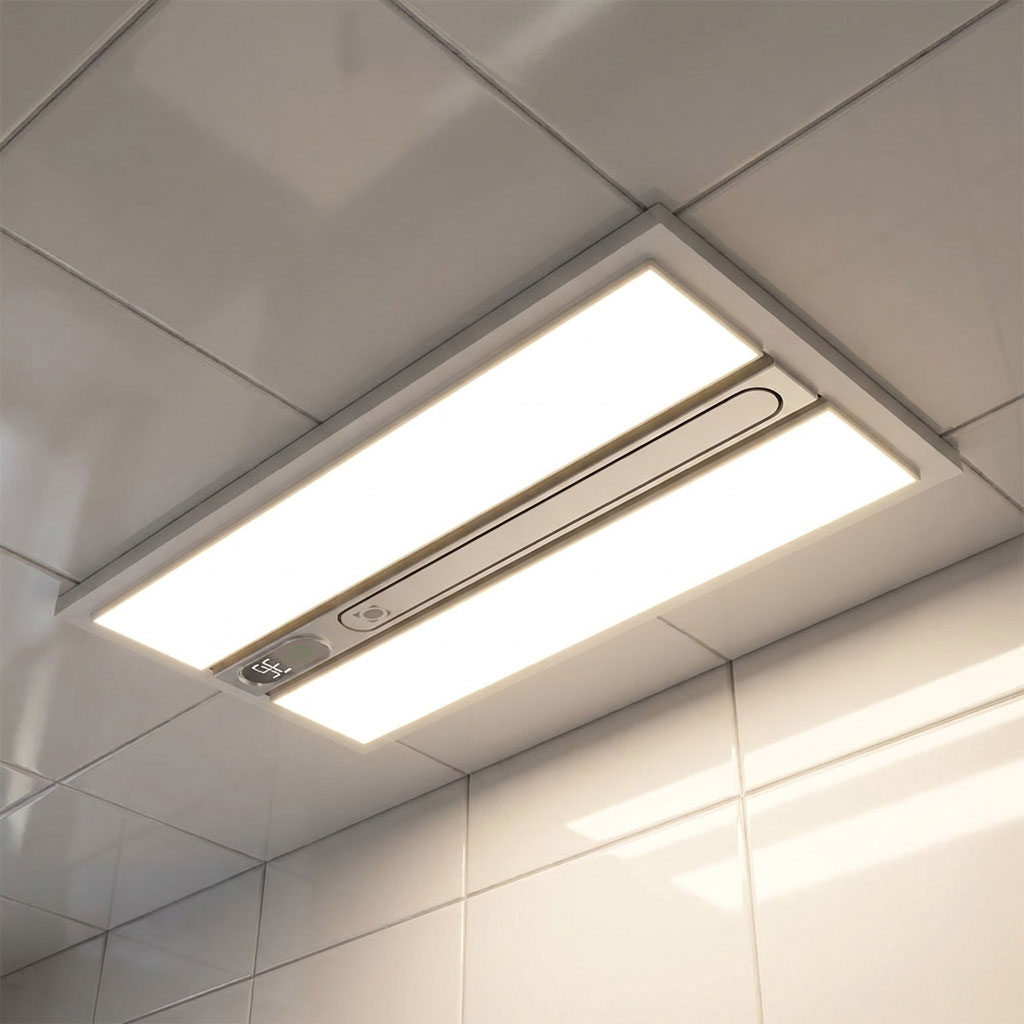

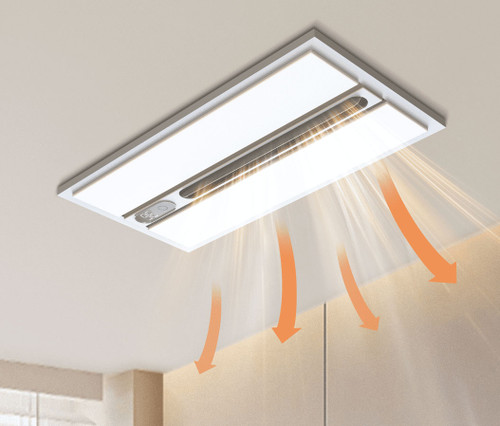

This bathroom heater delivers a multi-functional climate control solution tailored for modern residential bathrooms, combining heating, ventilation, air circulation, and lighting into one integrated unit. Engineered with a slim 615mm by 315mm fascia and a discreet 163mm profile, this unit is optimised for flush ceiling installation, requiring a minimum clearance of 200mm. The white finish provides a clean, neutral appearance that blends seamlessly with contemporary bathroom décor. The design houses a powerful 60W DC motor and a PTC heating element, providing up to 2150W of efficient dry heat. The 6-in-1 functionality includes primary and secondary heating modes, an exhaust fan, a circulating fan to reduce stratification of warm air, a sway function to disperse warmth, and a Tri-CCT LED light source, offering full-spectrum illumination with selectable colour temperatures.
The LED lighting component features a 25W integrated chip system, delivering up to 2150 lumens at 4000K, with switchable settings at 3000K and 5000K for customisable ambience. With a colour rendering index (CRI) of ≥80, this fixture ensures accurate colour reproduction for enhanced visibility and comfort in humid environments. The unit incorporates a digital ambient temperature display and visual mode indicators, enhancing both user control and aesthetic appeal. Acoustic performance is refined with a maximum noise output of ≤48dB, supporting a quiet and comfortable bathroom environment.
Operational safety is prioritised through an automatic two-hour shut-off function, which can be overridden via the digital wall controller. This eight-switch wall control is included and allows intuitive access to all heating, lighting, fan, and sway functions. The system also includes a horizontal switchplate film cover, a 3m flexible duct, and an external grille, facilitating seamless and complete installation. The high-capacity 150mm duct enables efficient extraction at a rate of 500m³/h, reducing condensation and supporting air quality management.
This bathroom heater is rated IPX2, providing basic moisture protection suitable for bathroom environments. Installation is straightforward for licensed electricians, with all control and ducting components supplied. Its precision-engineered heat distribution, multifunctional operation, and long-lasting LED system make this product a robust and versatile choice for climate and lighting control in high-humidity zones. The unit is backed by a 5-year in-home warranty, ensuring reliability and peace of mind in long-term use.
COLOUR: White
IP RATING: IPX2
DIMENSIONS: 615mm x 315mm x 163mm
CUTOUT: 595mm x 280mm
VOLTAGE: 240V AC
WATTAGE: 2250W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 1900lm (3000K), 2150lm (4000K), 2100lm (5000K)
CRI: ≥80
LED WATTAGE: 25W
MOTOR WATTAGE: 60W DC
AIR EXTRACTION: 500m³/h
HEAT WATTAGE: 2150W
HEAT TYPE: PTC heating element
NOISE: ≤48dB
DUCT SIZE: 150mm
WALL CONTROL: Yes (8-switch digital wall controller with ALL-OFF function)
INCLUDES: 8-switch digital wall controller (white), horizontal switchplate film cover, 3m flexible duct, exterior grille
OPERATION: 6-in-1 functions – Heater, Exhaust Fan, Circulating Fan, Dry Heat, Sway and Light Unit; Patented Heat Breeze Technology; mode colour indicator; automatic 2-hour safety shut-off with override; digital ambient temperature display
INSTALLATION: Minimum 200mm ceiling clearance required
WARRANTY: 5 years (in-home warranty)
