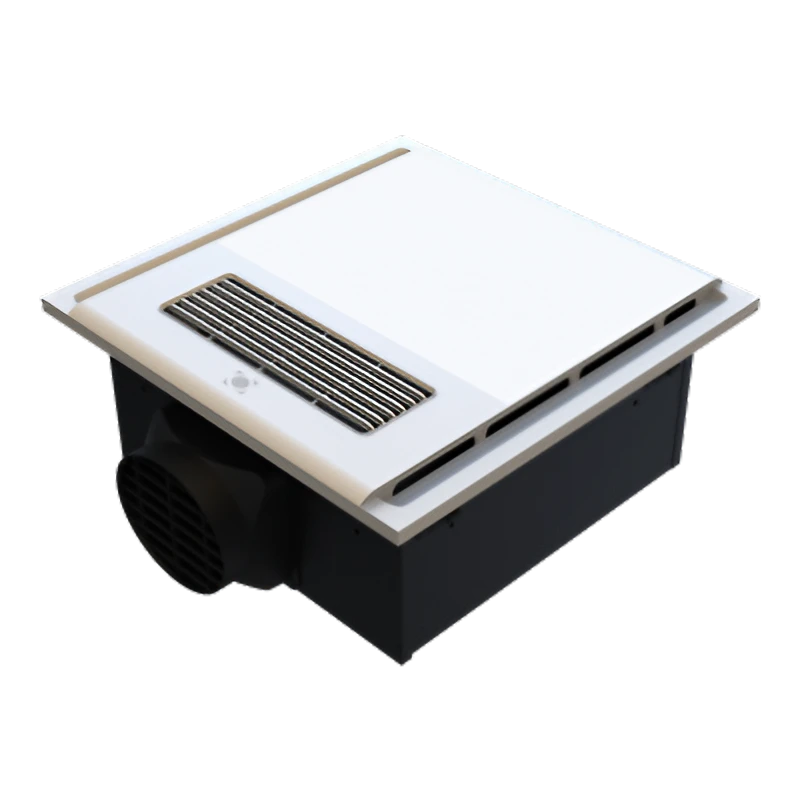

This 4-in-1 bathroom heater is a precision-engineered fixture designed to integrate heating, ventilation, circulation, and lighting within a single compact unit. With its clean white finish and 390mm square fascia, it delivers a flush-mounted aesthetic that complements contemporary bathroom interiors. It is particularly suited for retrofit applications, with a 330mm x 350mm cutout that allows seamless replacement of older 2- or 4-lamp infrared heater units. The design accommodates installations where only two cores from existing 5-core wiring are available, eliminating the need for additional switching cables.
The heating system incorporates a 2150W PTC heating element, which provides fast and efficient warmth while maintaining a controlled surface temperature for enhanced safety. A 60W AC motor powers both the heating and ventilation functions, supporting an air extraction rate of 300m³/h to effectively remove humidity and airborne particulates. This airflow performance helps minimise condensation buildup and maintain air quality, while a noise output of ≤46dB ensures quiet operation. The integrated Heat Breeze Technology promotes even thermal distribution and includes an automatic two-hour safety shut-off, which may be overridden via the wall-mounted controller.
Lighting is delivered through a fixed 12W LED panel, offering three selectable colour temperatures—3000K (warm white), 4000K (cool white), and 5000K (daylight white)—to suit various aesthetic and functional preferences. Luminous outputs range from 850lm to 950lm depending on the selected colour temperature, with a colour rendering index of ≥80 for accurate visual clarity. The light source is embedded directly into the unit for durability and consistent performance, avoiding the need for globe replacements. The LED configuration is ideal for both ambient lighting and task illumination within bathroom environments.
The system is supplied with a six-switch digital wall controller in white, featuring dedicated mode selection and an ALL-OFF function for quick shutdown. The package includes a horizontal switchplate film cover, 3-metre flexible duct, and an exterior grille, supporting a complete and efficient installation. Rated IPX2 for indoor damp-area use, the heater also features a 100mm duct outlet for effective ventilation routing. With its modern flush design, robust construction, and five-year in-home warranty, this unit represents a high-quality solution for bathroom climate and lighting control.
COLOUR: White
IP RATING: IPX2
DIMENSIONS: 390mm x 390mm x 158mm
CUTOUT: 330mm x 350mm
VOLTAGE: 240V AC
WATTAGE: 2250W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 850lm (3000K), 950lm (4000K), 900lm (5000K)
CRI: ≥80
LED WATTAGE: 12W
MOTOR: 60W AC
AIR EXTRACTION: 300m³/h
HEAT WATTAGE: 2150W
HEAT TYPE: PTC heating element
NOISE: ≤46dB
DUCT SIZE: 100mm
WALL CONTROL: Yes (6-switch digital wall controller with ALL-OFF function)
INSTALLATION: Retrofit using existing 5-core wiring (no extra switch wires required)
INCLUDES: Digital wall controller (white), horizontal switchplate film cover, 3m flexible duct, exterior grille
OPERATION: Heater, exhaust fan, circulating fan, and light; includes Heat Breeze Technology and auto shut-off after 2 hours unless overridden
APPLICATIONS: Bathroom retrofit replacing 2 or 4 heat infrared models
FEATURES: Flush-like fascia design; large size to cover older models; safety shut-off after 2 hours
WARRANTY: 5 years (in-home warranty)
