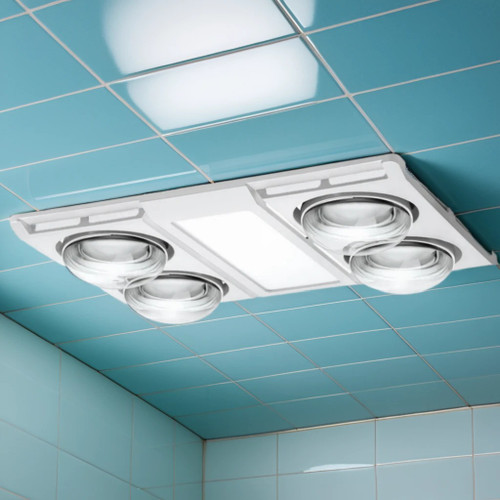

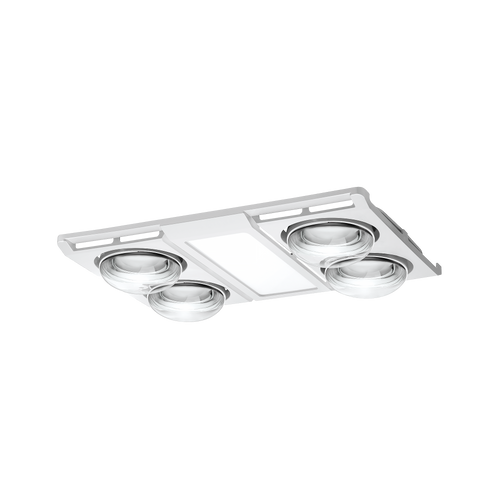

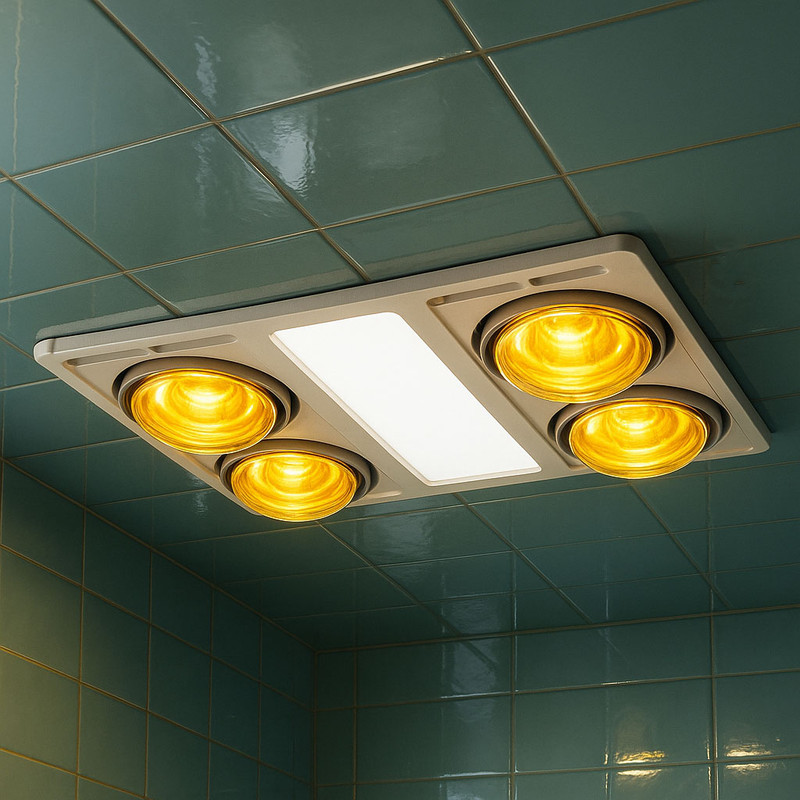

This bathroom heater fan is a high-performance 3-in-1 solution engineered to deliver efficient ventilation, instant radiant heating, and energy-saving LED illumination in one integrated unit. Designed specifically for small to medium-sized bathrooms, it combines a robust ball bearing motor with a turbo blade fan to achieve a powerful extraction rate of 460m³/hr while maintaining quiet operation at or below 50dB. The unit is equipped with four 275W infrared heat lamps for rapid warmth and includes a 12W fixed LED light with tri-colour adjustability, offering 3000K warm white, 4000K cool white, and 5000K daylight white to suit varying lighting preferences.
This heater fan is constructed using a durable polypropylene housing and an aluminium fascia with a frosted polycarbonate lens, ensuring both thermal efficiency and longevity. The slimline profile measures 480mm in length, 360mm in width, and 200mm in height, and it requires a 435mm by 275mm ceiling cutout for installation. The side duct outlet measures 120mm in diameter and is compatible with the included 3-metre aluminium ducting (125mm diameter), allowing for effective and flexible venting. The aerodynamic fan design and internal thermal safety switch enhance both airflow performance and safety during operation.
User control is simplified with the included four-gang wall switch, allowing seamless management of the heating, lighting, and exhaust functions. The heating system supports two-stage power control, with selectable output at either 50% or 100% capacity to suit seasonal comfort levels. The integrated LED produces a luminous output of at least 900 lumens, ensuring sufficient task lighting in humid conditions, and the self-closing back shutter and draft stopper further reduce energy loss and backflow.
Rated IPX2 for water resistance and compliant with SAA-192865-EA standards, this unit meets electrical requirements for wet-area installations. Additional safety and comfort features include a thermal cut-out mechanism, side vent access, and a low-profile design that integrates seamlessly into modern bathrooms. Backed by a two-year in-home warranty (excluding heat lamps), this 3-in-1 bathroom heater fan is a dependable and energy-conscious choice for residential installations requiring reliable air movement, effective warmth, and adaptable lighting.
COLOUR: White
MATERIAL: Aluminium (fascia), PP plastic housing, frosted polycarbonate (lens)
IP RATING: IPX2
VOLTAGE: 220-240V 50Hz

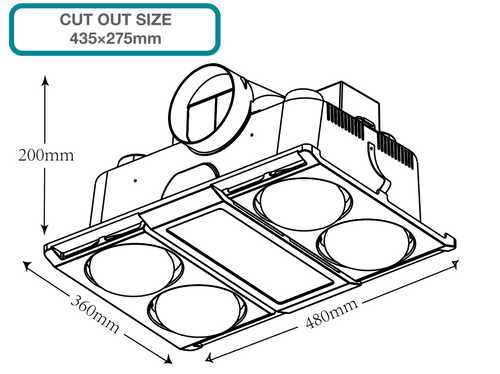

DIMENSIONS: 480mm (length) x 360mm (width) x 200mm (height)
CUTOUT: 435mm x 275mm
MOTOR: Ball bearing motor
WATTAGE: 1152W (4 x 275W for heating, 12W for LED light, 40W for fan)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: ≥900lm
AIRFLOW: 460m³/hr
NOISE: ≤50dB
DUCTING SIZE: 120mm (side duct outlet)
ALUMINIUM DUCT: 125 x 3000mm
CONTROL: Yes (Switchable heat settings - 50% or 100% heat)
COMPLIANCE: SAA-192865-EA
FEATURES: Turbo blade fan design, slimline fitting, quiet operation, high performance air and steam extraction, internal thermal safety switch, draft stopper, easy side vent access, self-closing back shutter
INSTALLATION: By licensed electrician only
WARRANTY: 2 years (in-home; excludes heat lamps)
