This LED downlight is a high-performance lighting solution engineered with a 20W fixed LED chip and an integrated tri-colour switch located on the driver. This feature allows for the selection of three distinct correlated colour temperatures: 3000K warm white, 4000K cool white, and 5700K daylight white. The luminaire delivers a luminous flux of up to 2000 lumens, depending on the selected colour temperature, and maintains a high colour rendering index of over 80 to ensure accurate chromatic representation. It is designed for operation on a standard 220-240V voltage range with a power factor of 0.9.

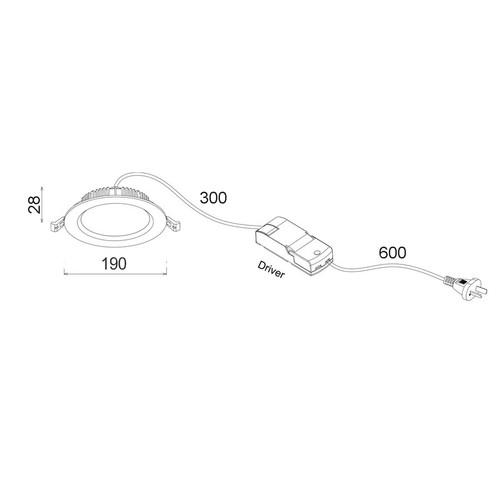

Constructed from a combination of polycarbonate and aluminium, the fitting features an opal polycarbonate diffuser that provides a wide 110-degree beam angle for uniform light distribution. The physical dimensions include a shallow 28mm depth and a 190mm diameter, making it suitable for installation in ceiling cutouts ranging from 155mm to 170mm in diameter. The unit is rated IP20 for the body and IP44 for the front face, offering protection against moisture and dust ingress from the room side. It is supplied with an external constant current LED driver and a 900mm flex and plug for streamlined connectivity.
The technical specifications of this downlight ensure long-term reliability, with a rated lifespan of 30,000 hours and a three-year warranty. It is designed to function effectively within an ambient temperature range of -20°C to 40°C, demonstrating its suitability for diverse environmental conditions. The dimmable functionality allows for precise control over light intensity, enhancing the versatility of the luminaire in various architectural applications. This product conforms to AS/NZ electrical standards, reflecting its adherence to rigorous safety and performance benchmarks.
This white round downlight represents a sophisticated integration of LED technology and durable materials, providing a versatile solution for modern lighting requirements. The inclusion of an external driver and pre-wired flex facilitates efficient installation, while the fixed LED chip ensures consistent performance throughout the product's life cycle. With its combination of high lumen output, selectable colour temperatures, and robust construction, this luminaire is an ideal choice for those seeking a dependable and technically advanced lighting component.
PRODUCT TYPE: LED Downlight
COLOUR: White
WARRANTY: 3 years
IP RATING: IP20 body, IP44 front face
MATERIAL: Polycarbonate and aluminium
DIFFUSER: Opal PC
LUMENS: 1800lm, 2000lm, 1900lm
COLOUR TEMP: 3000K (warm white), 4000K (cool white) 5700K (daylight white)
SWITCH: Yes (on driver)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 110°
LIFE SPAN: 30,000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes
DEPTH: 28mm
DIAMETER: 190mm
CUTOUT: 155-170mm in diameter
WATTAGE: 20W
POWER FACTOR: 0.9
VOLTAGE: 220-240V
DRIVER: External constant current LED driver
INCLUDES: 900mm flex and plug
