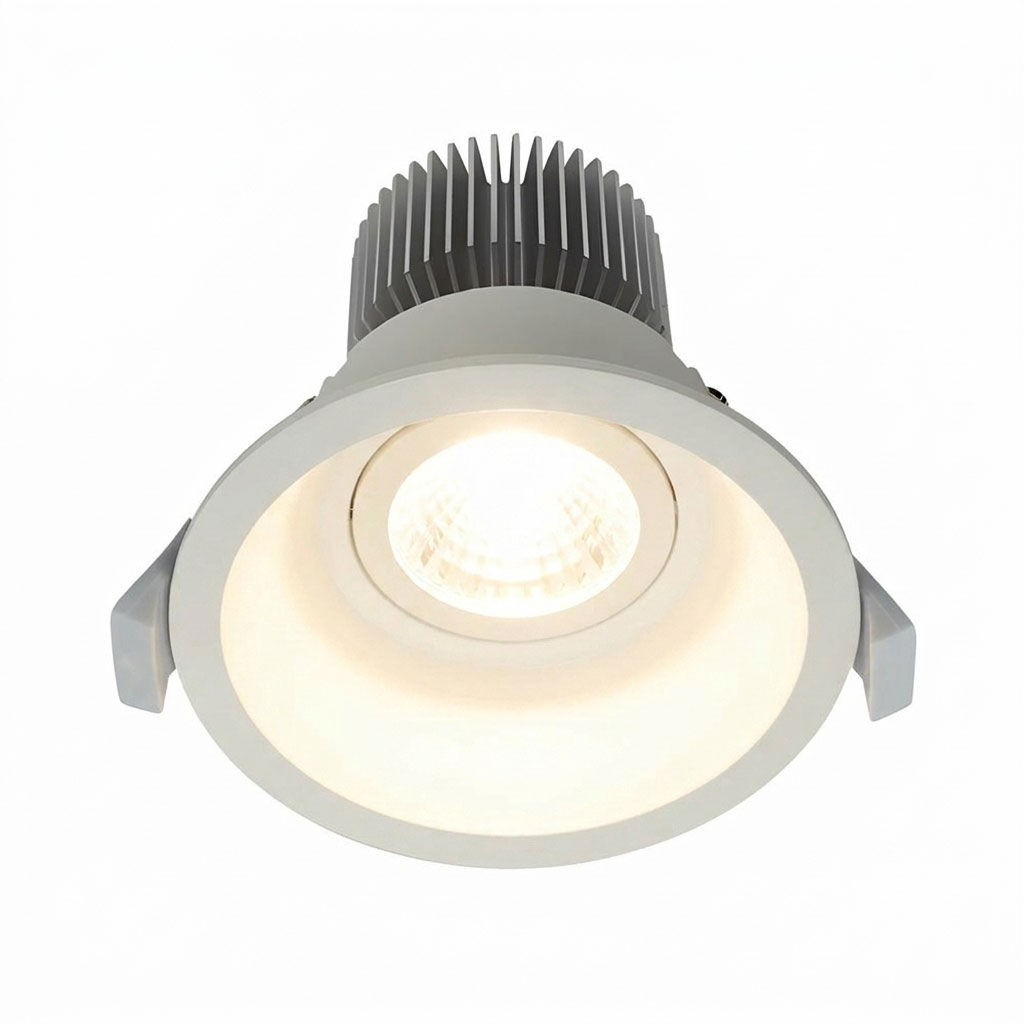

This downlight is a precision-engineered 10 W LED luminaire designed to deliver stable, high-efficiency illumination for indoor applications where consistent photometric performance and clean aesthetics are required. It incorporates integrated CCT control, enabling rapid selection of Warm White (3000 K), Cool White (4200 K), or Daylight (6000 K) via a tri-CCT switch housed within the fitting, allowing the output spectrum to be matched to task requirements and interior finishes. Across the selectable colour temperatures, the unit provides luminous flux of 750 lm, 850 lm, or 800 lm with a controlled 50° beam distribution, producing uniform downlighting with balanced centre intensity and a CRI of 80 for accurate, natural rendering of colours in residential and light commercial environments.

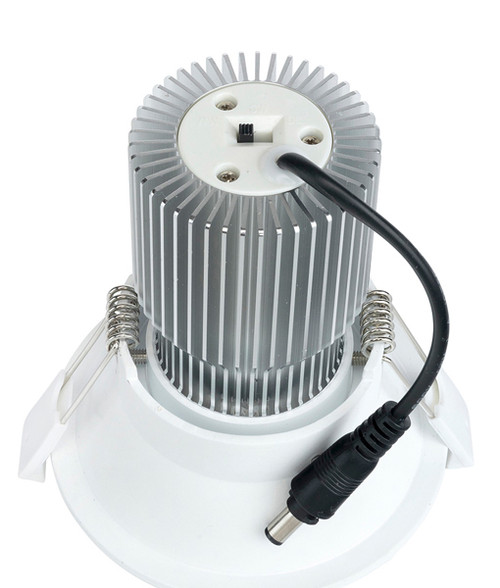

The optical and mechanical system is built around a durable aluminium body paired with a PMMA lens, combining effective thermal conduction with optical stability to support long-term lumen maintenance. The matt white finish integrates seamlessly into modern ceilings, while the adjustable design enables targeted aiming to reduce unwanted spill and improve visual comfort in accent or general lighting layouts. With an IP20 rating, the fitting is intended for indoor-only installation in dry locations, providing reliable operation within an ambient temperature range of −20 to 40 °C without compromising electrical or photometric integrity.
Electrical performance is enhanced by an inbuilt constant-current LED driver, engineered to regulate current precisely for predictable output and reduced flicker susceptibility. The driver operates with a DC output of 27–42 V at 230–260 mA and an input current of 45 mA, supporting efficient power conversion and stable LED junction conditions. The luminaire is specified for 240 V supply and is tolerant of a wide input range of 185–265 V AC at 50/60 Hz, while maintaining a high power factor of 0.9 to minimise reactive power and contribute to improved overall circuit efficiency.
Designed for longevity and dependable service life, this fitting offers an estimated 30,000-hour lifespan, reducing maintenance frequency and lifecycle cost compared with conventional lamp-based solutions. Its compact form factor—107 mm in height, 100 mm in diameter, and a 90 mm cutout—supports straightforward retrofit into standard ceiling apertures. Supplied complete with a fixed LED light source, the unit includes a flex and plug with a 1.64 m cable for efficient installation, and it is backed by a 3-year warranty to provide assurance of quality and ongoing performance.
TYPE: Downlight
COLOUR: Matt White
ADJUSTABLE: Yes
WARRANTY: 3 years
IP RATING: IP20 (indoor only)
SWITCH: Tri CCT switch in the fitting
MATERIAL: Aluminium (body), PMMA (lens)
COLOUR TEMP: Switchable between Warm White (3000K), Cool White (4200K) and Daylight (6000K)
LUMENS: 750 lm / 850 lm / 800 lm
GLOBE TYPE: LED (fixed in fitting)
NUMBER OF GLOBES: 1
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: 80
BEAM ANGLE: 50°
LIFE SPAN: 30,000 hours
AMBIENT TEMP: -20 to 40°C
DIMMABLE: Yes
HEIGHT: 107mm
DIAMETER: 100mm
CUTOUT: 90mm
WATTAGE: 10W
POWER FACTOR: 0.9
VOLTAGE: 240V (will handle 185–265V AC - 50/60Hz)
DRIVER: Inbuilt constant current LED driver included (output: DC27-42V / 230-260mA, input: 45mA)
INCLUDES: Flex and plug (with 1.64m cable)
OPERATION: Suitable for 2-way switching, suitable for 3 wire motion and microwave sensors, suitable for dimming
