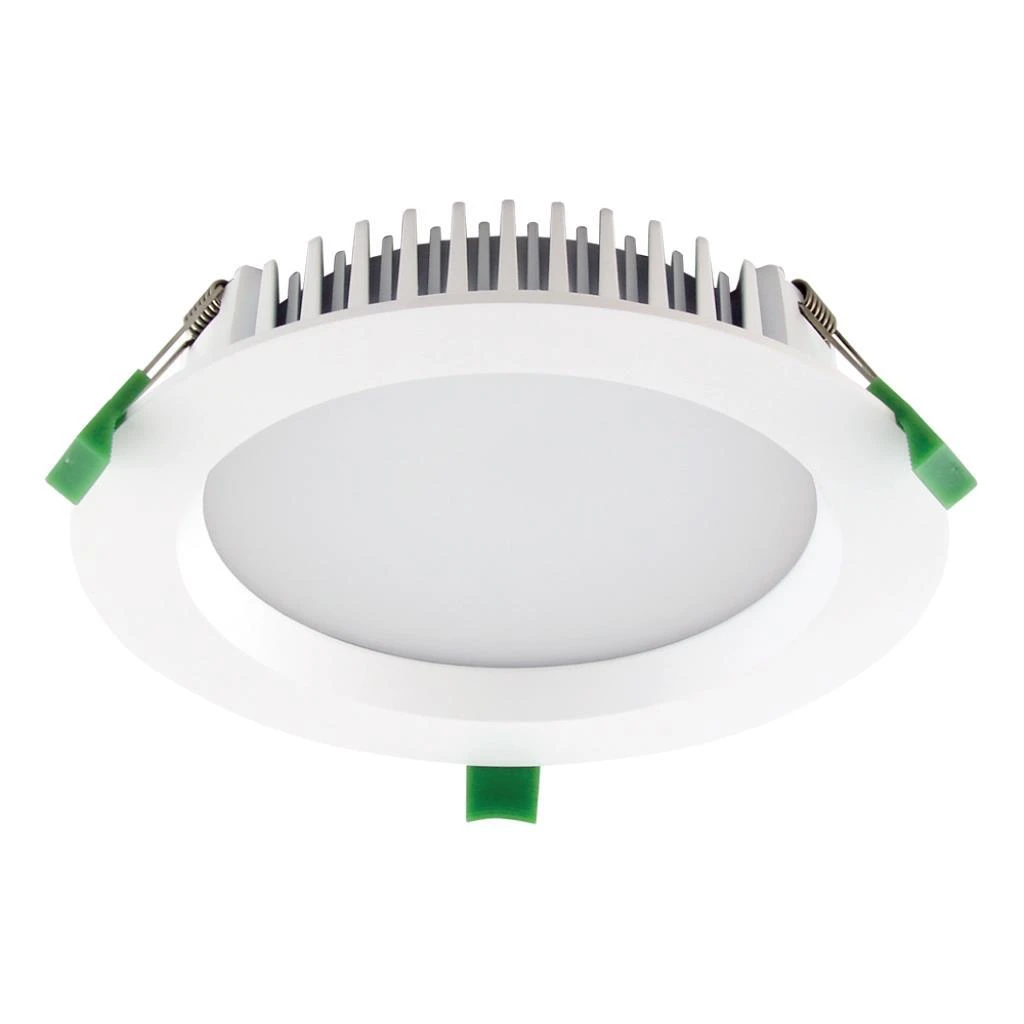

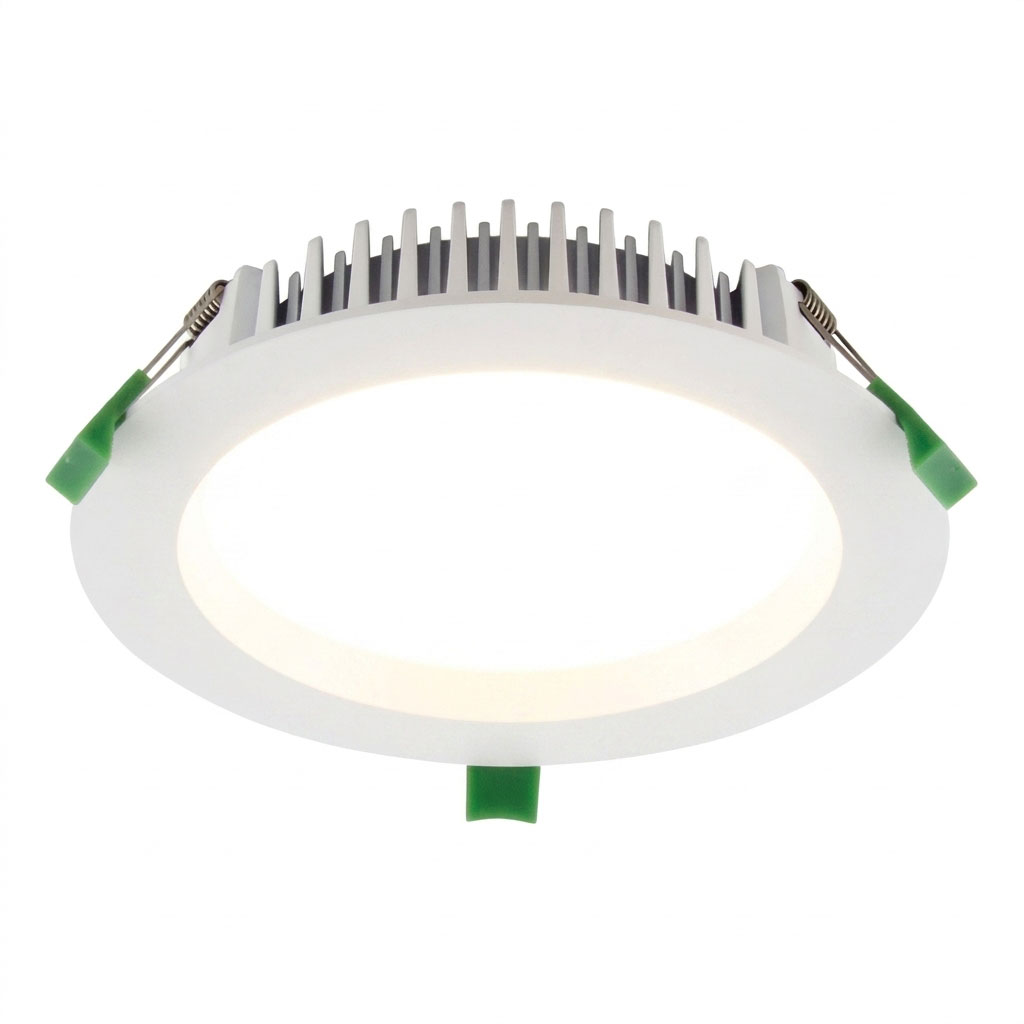

This commercial grade LED downlight is a high-performance recessed luminaire engineered for environments where ceiling depth is restricted. Featuring an ultra-slim housing with a height of only 41.5mm, the unit integrates advanced SMD LED technology to deliver a robust luminous flux of up to 1800lm. The deep-set frame design is specifically optimized to minimize glare while maintaining a wide 90-degree beam angle for comprehensive light distribution across commercial and residential spaces.
Technical versatility is a core attribute of this fixture, which incorporates TRIO technology via a rear-mounted dip switch. This allows users to select between three distinct correlated colour temperatures: 3000K warm white, 4000K cool white, and 5700K daylight white. Operating at 20W on a standard 240V AC supply, the system includes a flicker-free driver that ensures stable illumination and is fully compatible with suitable dimming hardware for precise atmospheric control.
Constructed for durability and safety, the luminaire carries an IP44 ingress protection rating, making it suitable for areas exposed to moisture, and an IC-4 rating for safe contact with building insulation. The hardware is designed for a 160mm to 170mm cutout and features a 190mm diameter face. With a rated lifespan of 50,000 hours and a high colour rendering index of ≥80, this fitting provides a reliable, long-term lighting solution that maintains chromatic accuracy and operational efficiency.
Installation is streamlined through the inclusion of a flex and plug assembly, facilitating rapid deployment in professional settings. The product is backed by a comprehensive 5-year warranty, reflecting its superior build quality and commercial-grade components. This lighting solution represents a sophisticated balance of aesthetic minimalism and industrial-strength performance, ideal for modern architectural applications requiring high-output, low-profile recessed illumination.
PRODUCT TYPE: Fixed LED Downlight
APPLICATIONS: Commercial; installations where ceiling space is minimal
WARRANTY: 5 years
COMMERCIAL GRADE: Yes
COLOUR: White
IP RATING: IP44 (weather-resistant)
LUMENS: 1700lm (for 3000K); 1750lm (for 4000K); 1800lm (for 5700K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5700K (daylight white)
VOLTAGE: 240V AC
WATTAGE: 20W
DRIVER: Included
GLOBE: LED (includes fixed LED chips in fitting)
DIMMABLE: Yes (fully dimmable with suitable dimmers)
DIMENSIONS: 190mm (diameter) x 41.5mm (height)
CUTOUT: 160mm-170mm (diameter)
MOUNTING: Recessed
CRI: ≥80
BEAM ANGLE: 90°
LIFESPAN: 50,000 hours
PHOTOMETRIC DATA: Available upon request
POWER FACTOR: 100 (up to 100 lumens per watt)
IC RATING: IC-4
LED TYPE: SMD
FEATURES: Deep-set frame to reduce glare; wide light distribution; ultra slim housing; flex and plug; TRIO technology (dip switch at the back of the fitting to change colour temperature); flicker free driver
