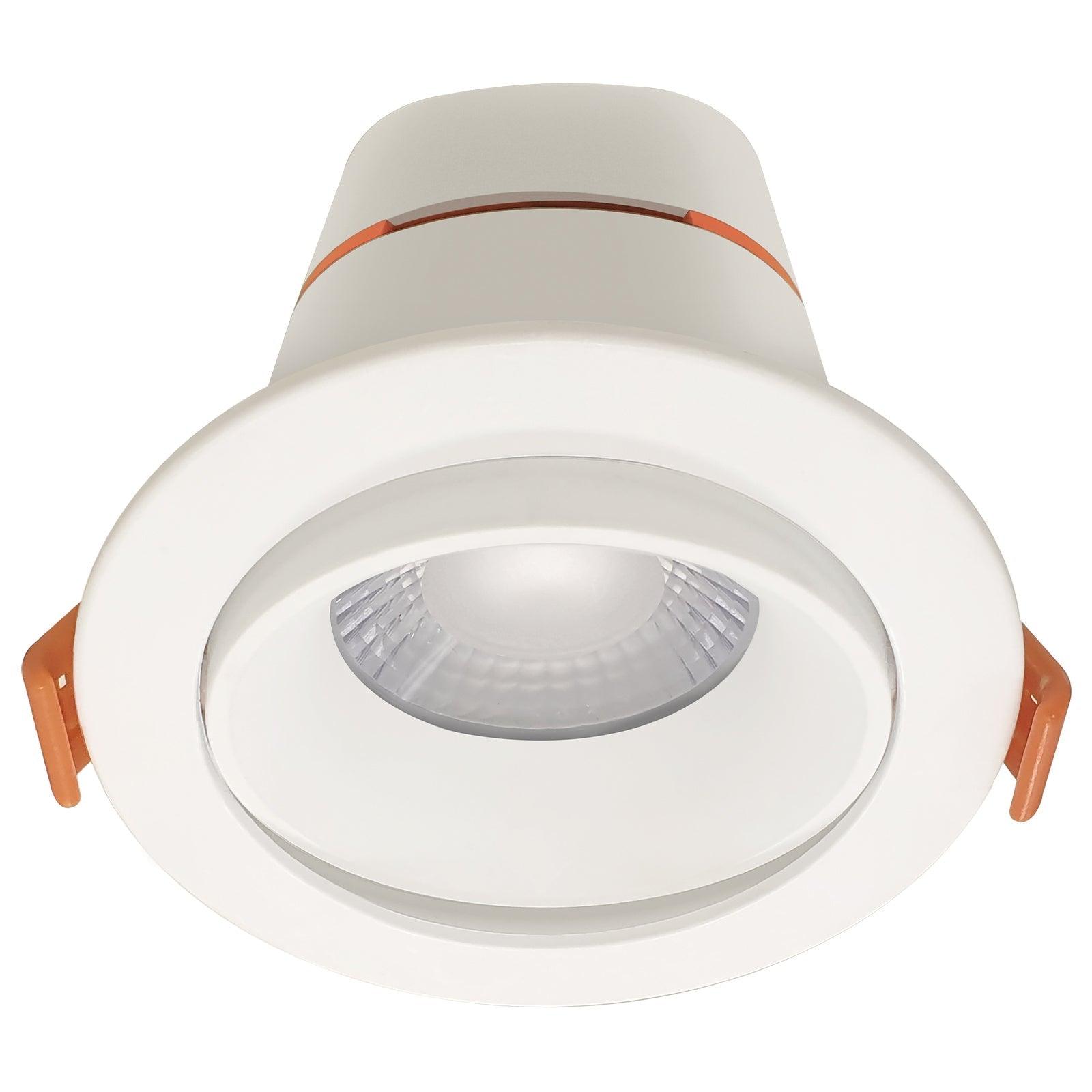

This LED downlight constitutes a high-performance architectural lighting solution, meticulously engineered to combine directional versatility with superior luminous efficacy. Utilizing an advanced 7W solid-state LED array, the fixture generates a maximum luminous flux of 900lm, ensuring high-intensity illumination while maintaining a Color Rendering Index (CRI) of >80 for exceptional chromatic accuracy. The primary optical assembly features a specialized low-glare lens paired with a concentrated 36° beam angle, which facilitates precise photometric control and minimizes visual discomfort by reducing peripheral luminance and secondary reflections.
The mechanical design is defined by an integrated gimbal mechanism, allowing for a vertical tilt of up to 25° to provide targeted accentuation of architectural features or specific task areas. This maneuverability is complemented by Tri-CCT technology, which enables the user to toggle between correlated color temperatures of 3000K, 4000K, and 5700K, ensuring the spectral output can be calibrated to meet diverse environmental requirements. Furthermore, the inclusion of a dimmable integrated driver allows for seamless modulation of light intensity, providing a highly adaptable lighting environment that supports both functional and ambient objectives.
Engineered for safety and long-term reliability, the luminaire features an IC-4 insulation contact rating, certifying that the housing may be safely abutted by or covered with building insulation without compromising thermal stability. The physical chassis, measuring 103mm in diameter with a total height of 84mm, is rated at IP44, offering robust resistance against moisture ingress and solid particulate matter. This makes the unit suitable for installation in demanding interior zones, including high-humidity areas, while the white powder-coated finish ensures a neutral, professional aesthetic that integrates flawlessly into modern ceiling planes.
The installation process is optimized for efficiency through a recessed mounting configuration compatible with standard 90mm cutouts, and the unit comes pre-fitted with a lead and plug for streamlined electrical connectivity. By balancing a low power consumption profile with high-output performance characteristics, this luminaire offers a technically superior alternative to legacy lighting systems, backed by a comprehensive three-year warranty. The synergy of adjustable directional optics and high-fidelity light output renders this downlight an essential component for projects requiring a reliable, high-quality, and energy-efficient illumination strategy.
COLOUR: White

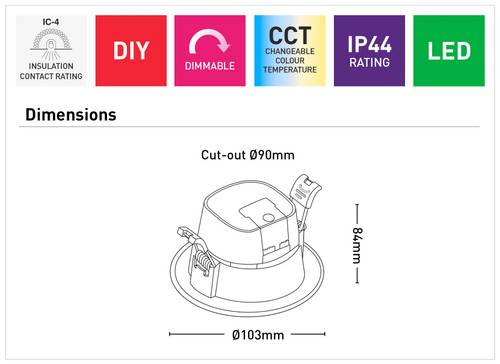

DIMENSIONS: 103mm (diameter) x 84mm (height)
CUTOUT: 90mm
IP RATING: IP44 (weather-resistant)
IC RATING: IC-4 (insulation contact rating)
LED WATTAGE: 7W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 800lm (3000K), 900lm (4000K), 860lm (5700K)
DIMMABLE: Yes
CRI: >80
BEAM ANGLE: 36°
DRIVER: Included (integrated driver)
MOUNTING: Recessed
CAPABILITIES: Gimbal tilt up to 25°
INCLUDES: Fitted with lead & plug
FEATURES: Low glare lens
INSTALLATION: DIY
WARRANTY: 3 years
