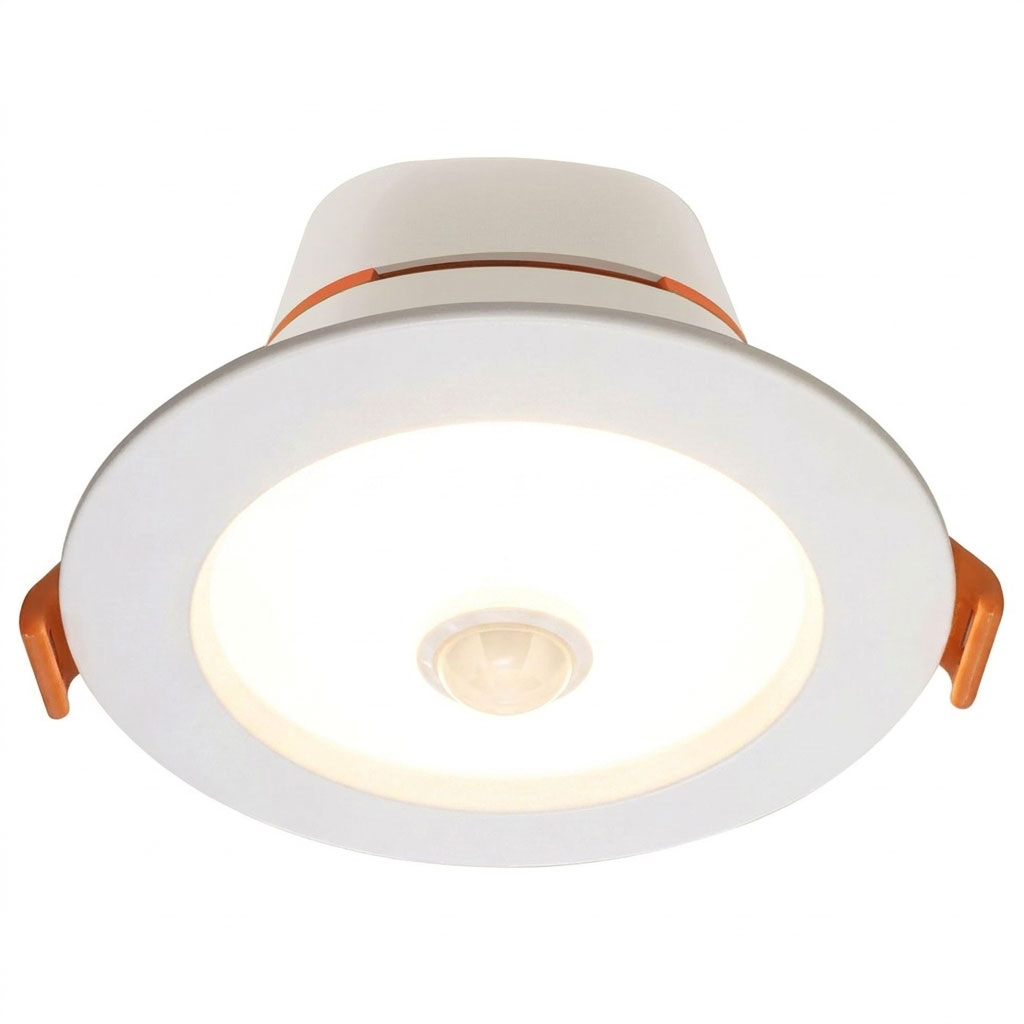

This LED downlight represents a sophisticated integration of high-efficiency solid-state lighting and automated control technology, engineered to provide a seamless architectural illumination solution. At its core, the luminaire utilizes a 7W LED array that delivers a luminous flux of up to 800lm, ensuring high-intensity output while maintaining a color rendering index (CRI) of >80 for accurate chromatic fidelity. The optical system is designed with a wide 100° beam angle, facilitating uniform light distribution and minimizing high-contrast shadows within the spatial environment.
The unit is characterized by its Tri-CCT versatility, allowing for the precise selection of correlated color temperatures between 3000K, 4000K, and 5700K to align with specific circadian or aesthetic requirements. Integrated into the white 103mm diameter housing is a high-sensitivity Passive Infrared (PIR) motion sensor, which optimizes energy consumption by modulating the power state based on occupancy detection. This intelligent sensing capability is paired with a fully dimmable integrated driver, offering granular control over the luminous environment while ensuring compatibility with modern automated building systems.
Engineered for longevity and safety, the fixture carries an IC-4 insulation contact rating, signifying that it is thermally regulated to permit direct contact with building insulation without the risk of combustion. The physical chassis is rated at IP44, providing a robust barrier against moisture ingress and particulate matter, which extends the operational utility of the device to transitional indoor-outdoor zones and high-humidity areas. This structural integrity is further supported by an optimized heat dissipation architecture, ensuring the internal LED chips operate within ideal thermal parameters to maximize their functional lifespan.
Installation is streamlined through a recessed mounting design compatible with a standard 90mm cutout, supported by a 1200mm cord and plug for simplified connectivity. The combination of a 72mm low-profile height and a sleek white finish allows the luminaire to integrate unobtrusively into various ceiling compositions. Backed by a comprehensive five-year warranty, this lighting solution exemplifies a commitment to technical reliability and performance, providing a durable, high-quality asset for both residential and light commercial applications.
COLOUR: White
DIMENSIONS: 103mm (diameter) x 72mm (height)
CUTOUT: 90mm
IP RATING: IP44 (weather-resistant)
IC RATING: IC-4 (insulation contact rating)
LED WATTAGE: 7W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 700lm (3000K), 800lm (4000K), 750lm (5700K)
DIMMABLE: Yes
CRI: >80
BEAM ANGLE: 100°
DRIVER: Included (integrated driver)
MOUNTING: Recessed
INCLUDES: 1200mm cord and plug
MOTION SENSOR: Yes (PIR)
INSTALLATION: DIY
WARRANTY: 5 years
