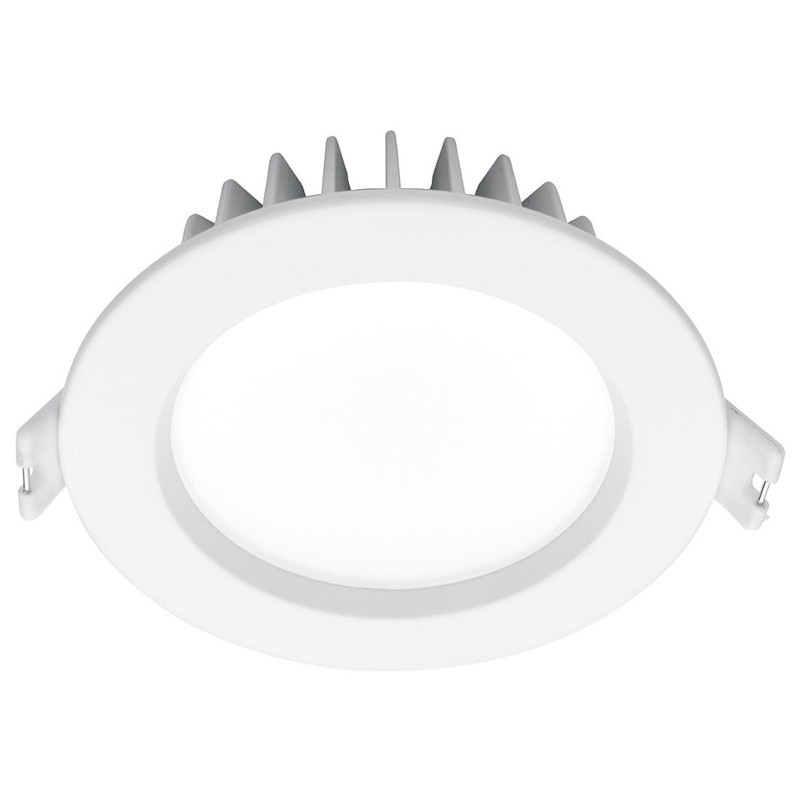

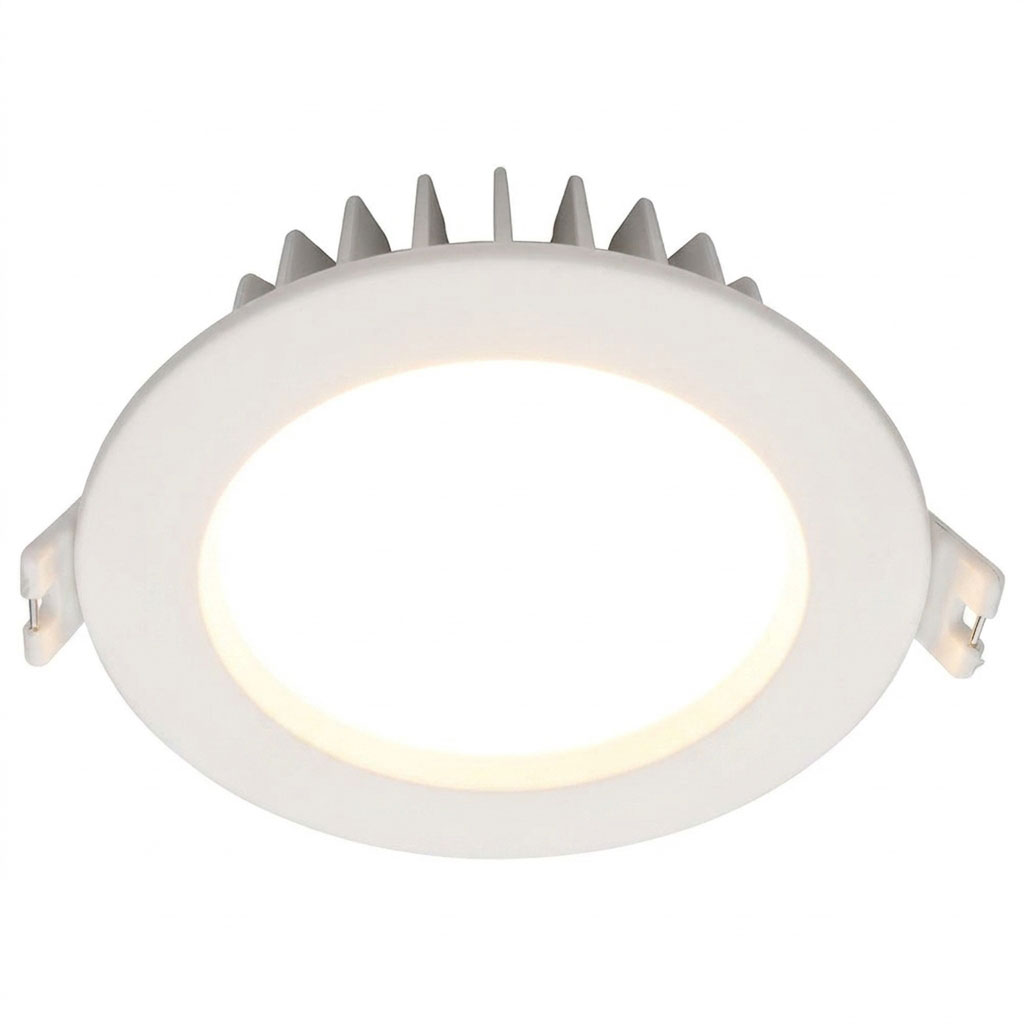

This LED downlight is designed to deliver high-efficiency recessed illumination for residential and light commercial interiors, integrating a compact form factor with a refined white finish that complements contemporary ceiling architectures. The luminaire incorporates a fixed 10W LED light source driven by an independent driver, providing stable electrical regulation and consistent luminous output throughout its operating life. With an external diameter of 103mm and a 90mm cutout requirement, the fitting enables precise integration into standard ceiling cavities while maintaining a low-profile installation depth of 37mm.
The optical system is engineered to provide uniform, wide-area illumination through a 100° beam angle, supporting effective ambient lighting with controlled glare. High colour rendering performance, with a CRI exceeding 80, ensures accurate visual representation of interior surfaces and furnishings. The luminaire delivers balanced luminous flux across its selectable colour temperature settings, achieving up to 1050 lumens at 4000K, with optimised output at 3000K and 5000K to suit a range of functional and aesthetic lighting applications.
Tri-CCT technology enables on-site selection between warm white, cool white, and daylight white outputs, allowing lighting tone to be adapted to different spatial requirements without replacing the fitting. The integrated dimming capability supports compatibility with suitable dimming systems, providing fine control over illuminance levels to accommodate task-focused lighting as well as reduced-output ambient scenarios. The fixed LED architecture minimises maintenance requirements and supports long-term operational stability.
Constructed with an aluminium housing and a durable plastic diffuser, the downlight achieves an IP44 rating for weather-resistant performance in protected areas exposed to moisture, such as bathrooms and covered ceilings. An IC-4 insulation contact rating permits safe installation in proximity to ceiling insulation, aligning with modern building practices. Supplied with a lead and plug for simplified connection, the luminaire is presented as a dependable and efficient lighting solution, supported by a three-year warranty to provide assurance of product quality and longevity.
COLOUR: White
MATERIAL: Aluminium housing with plastic diffuser
DIMENSIONS: 103mm (diameter) x 37mm (height)
CUTOUT: 90mm
IP RATING: IP44 (weather-resistant)
IC RATING: IC-4 (insulation contact rating)
LED WATTAGE: 10W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 950lm (3000K), 1050lm (4000K), 1000lm (5000K)
DIMMABLE: Yes
CRI: >80
BEAM ANGLE: 100°
DRIVER: Included (independent driver)
MOUNTING: Recessed
INCLUDES: Lead and plug
INSTALLATION: DIY
WARRANTY: 3 years
