This LED downlight is a sophisticated indoor lighting solution engineered for recessed ceiling applications, featuring a robust housing constructed from high-grade aluminium and plastic with a durable polycarbonate diffuser. The unit integrates advanced COB LED chips and an inbuilt constant-current driver to ensure stable performance and a significant operational lifespan of 30,000 hours. Designed with a fixed round profile, it provides a focused 60-degree beam angle while maintaining low glare for enhanced visual comfort in residential or commercial environments.
Technical versatility is a primary attribute of this luminaire, which incorporates a rear-mounted switch allowing users to select between three distinct colour temperatures: 3000K warm white, 4000K cool white, and 6000K daylight white. The system delivers a maximum luminous flux of 800 lumens at the 4000K setting, ensuring high-intensity illumination with a colour rendering index of 80 or higher. Furthermore, the fixture is fully dimmable and compatible with 220V-240V AC power supplies, offering precise control over the ambient lighting levels to suit specific requirements.
Safety and installation efficiency are prioritized through the inclusion of a 1-meter flex and plug, facilitating a straightforward connection process for licensed electricians. The device carries an IC-4 rating, permitting it to be abutted against or covered by building insulation, and features an IP54 rating for the front face to protect against dust and moisture ingress. With a compact 100mm diameter and a height of 85mm, the unit is designed to fit standard cutouts ranging from 85mm to 90mm, making it an ideal choice for various ceiling configurations.
Operating effectively within an ambient temperature range of -20°C to 40°C, this Class II luminaire demonstrates exceptional thermal management and a high power factor of 0.9. The product is backed by a comprehensive 3-year warranty, reflecting its reliability and high-quality construction standards. Whether utilized in dining rooms, living areas, or specialized cafe settings, this LED downlight provides a consistent and energy-efficient lighting solution that meets modern architectural and electrical standards.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Suitable for 2-way switching
WARRANTY: 3 years
COLOUR: Black
MATERIAL: Plastic and aluminium (housing and heatsink); Polycarbonate (diffuser)
IP RATING: IP20 (IP54 for front face only)
LUMENS: 700lm (for 3000K); 800lm (for 4000K); 750lm (for 6000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 6000K (daylight white)
VOLTAGE: 220V-240V AC
WATTAGE: 9W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes

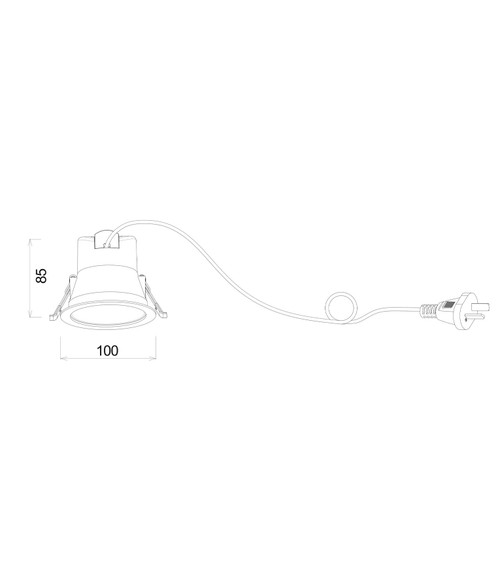

DIMENSIONS: 100mm (diameter) x 85mm (height)
CUTOUT: 85mm-90mm (diameter)
CLASS: II
MOUNTING: Recessed
CRI: ≥80
BEAM ANGLE: 60°
LIFESPAN: 30,000 hours
OPERATION: Rear switch for Tri-CCT
POWER FACTOR: 0.9
AMBIENT TEMP: -20°C to 40°C
IC RATING: IC-4
PHOTOMETRIC DATA: Available upon request
INSTALLATION: Must be installed by a licensed electrician; check with a licensed electrician for minimum and maximum dimmer loads
FEATURES: Fixed round design; low glare; flex and plug (1m); inbuilt constant-current LED driver; COB LED chips
REMARKS: May be used with other untested dimmers
