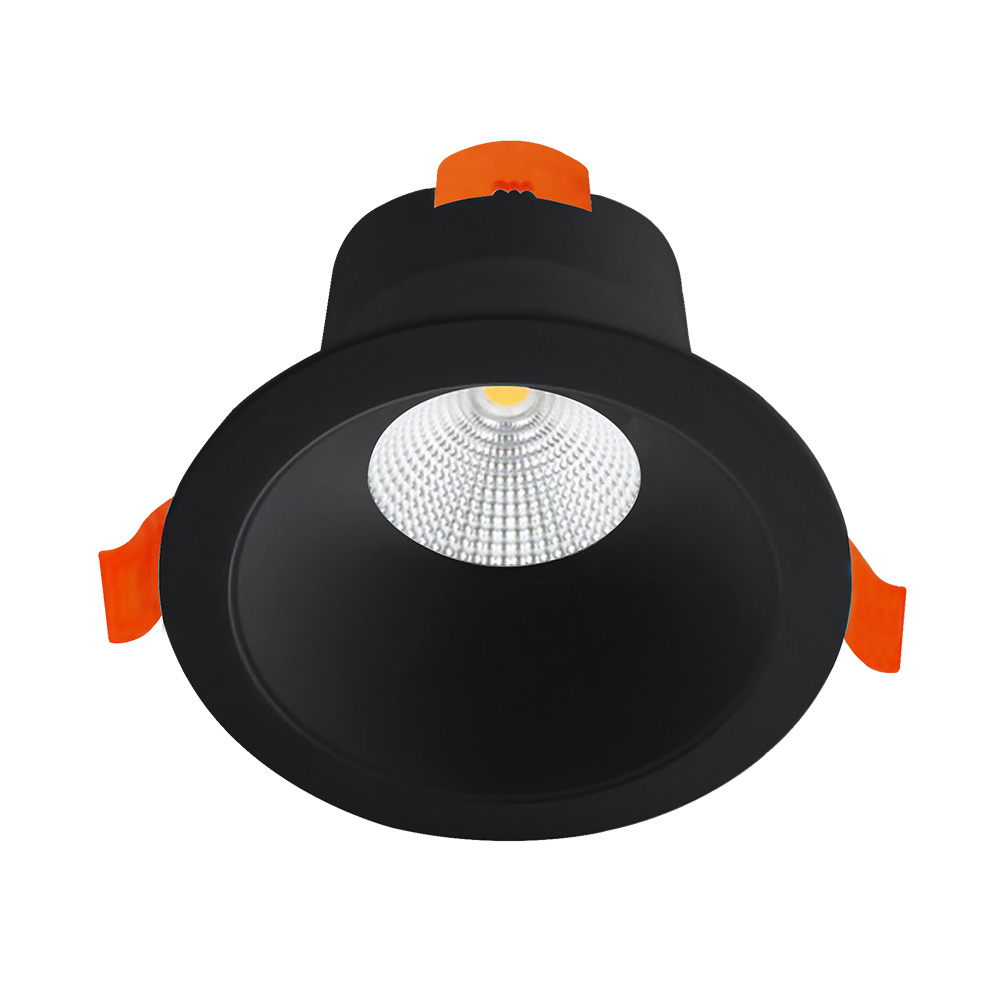

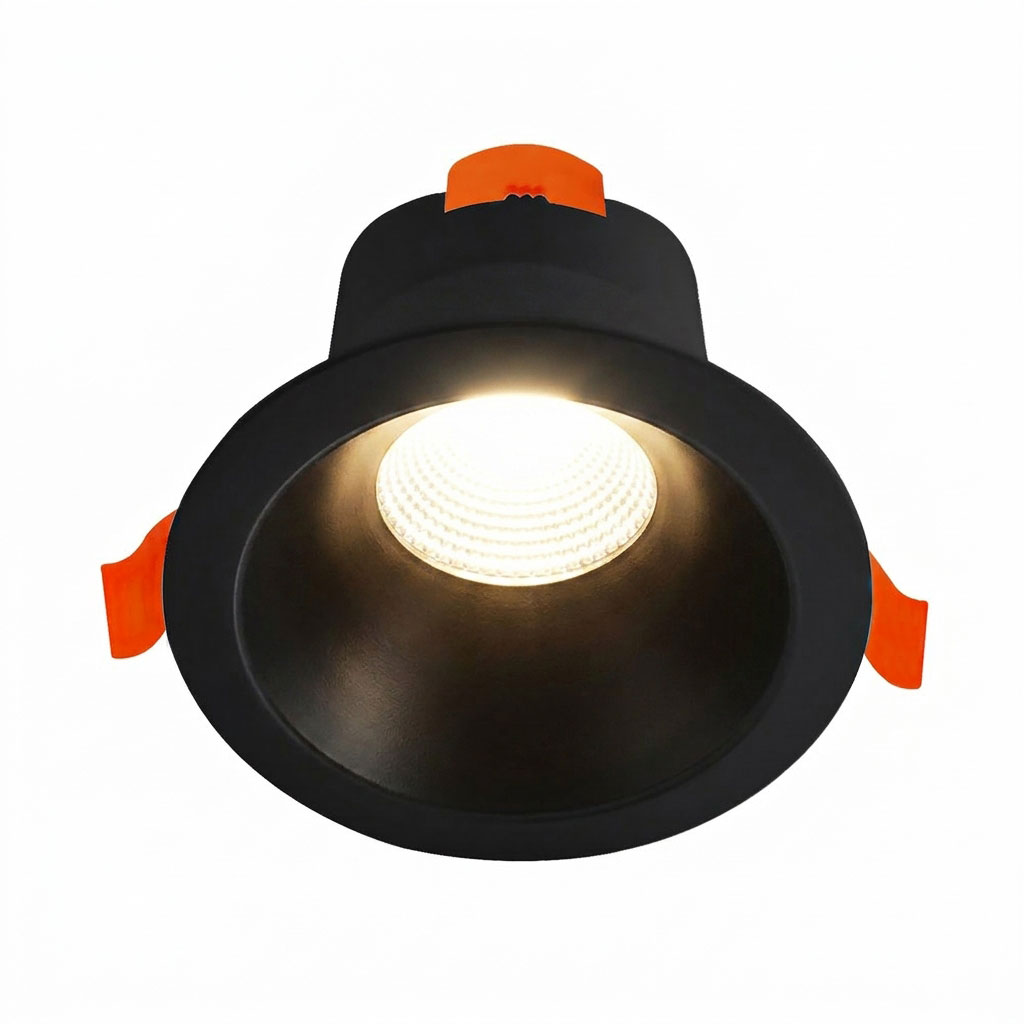

This LED downlight in black finish is a high-performance recessed lighting solution engineered for modern interior environments requiring both visual comfort and consistent illumination output. Operating at 9W, the integrated COB LED system delivers a luminous flux of 800lm with an efficacy of 88 lm/W, ensuring efficient energy conversion and stable light distribution. The 60° beam angle provides controlled illumination suitable for both ambient and task lighting applications, while the recessed light source contributes to a clean architectural appearance and reduced glare levels, achieving a UGR of less than 19.
Designed with flexibility in mind, this downlight features Tri-CCT functionality, allowing selection between 3000K (warm white), 4000K (cool white), and 5000K (daylight white) to suit varying environmental and aesthetic requirements. With a colour rendering index of 80, it delivers accurate colour representation for general-purpose lighting across residential, commercial, and hospitality settings. The luminaire supports triac dimming, enabling smooth light output adjustment and compatibility with most trailing-edge dimmers for enhanced lighting control.
Constructed from aluminium and plastic, the fitting incorporates a unique heat-sink design that optimises thermal dissipation, maintaining LED performance stability and extending operational life to 30000 hours. The IC-4 rating allows safe installation in insulated ceilings where the fitting can be abutted and covered, increasing installation versatility. With an IP54 rating (front face only), the unit offers protection against dust ingress and water splashes, making it suitable for use in areas exposed to moisture such as bathrooms or sheltered outdoor soffits.
With compact dimensions of 100mm diameter and 85mm height, and a 90mm cutout requirement, this downlight is designed for straightforward recessed installation. It includes a 1.2m flex and plug for convenient connection and operates on 220-240V AC 50Hz input. Rated for operation within ambient temperatures of -20°C to 40°C and compliant with RCM standards, this luminaire is a reliable lighting solution for applications including residential spaces, offices, aged care facilities, healthcare environments, hotels, retail stores, and showrooms, delivering consistent performance and long-term durability.
COLOUR: Black
MATERIAL: Aluminium and plastic
WATTAGE: 9W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 800lm
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
CRI: 80
BEAM ANGLE: 60°
IP RATING: IP54 (weather-resistant, front face only)

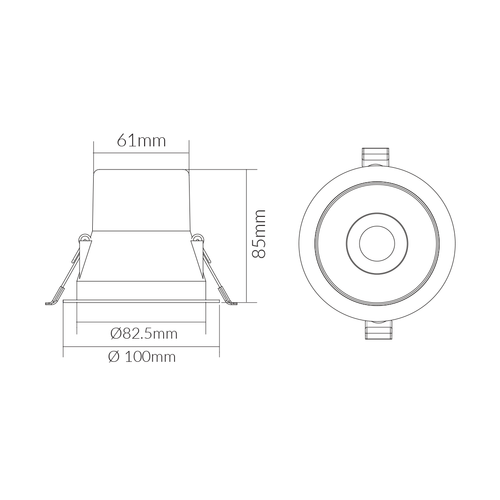

DIMENSIONS: 100mm (diameter) x 85mm (height)
CUTOUT: 90mm
WEIGHT: 0.18kg
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 30000 hours
WORKING TEMP: -20°C to 40°C
DIMMABLE: Yes (triac dimming)
COMPLIANCE: RCM
PHOTOMETRIC DATA: Available upon request
MOUNTING: Recessed
INCLUDES: Flex & plug (1.2m)
APPLICATIONS: Residential areas, offices, aged care, healthcare facilities, hotels, lobbies, hospitality venues, retail stores, showrooms
FEATURES: Unique heat-sink design for enhanced thermal management
WARRANTY: 3 years
LUMINAIRE EFFICACY: 88 lm/W
LED SOURCE: COB
IC RATING: IC-4 (abutted & covered)
UGR: <19
