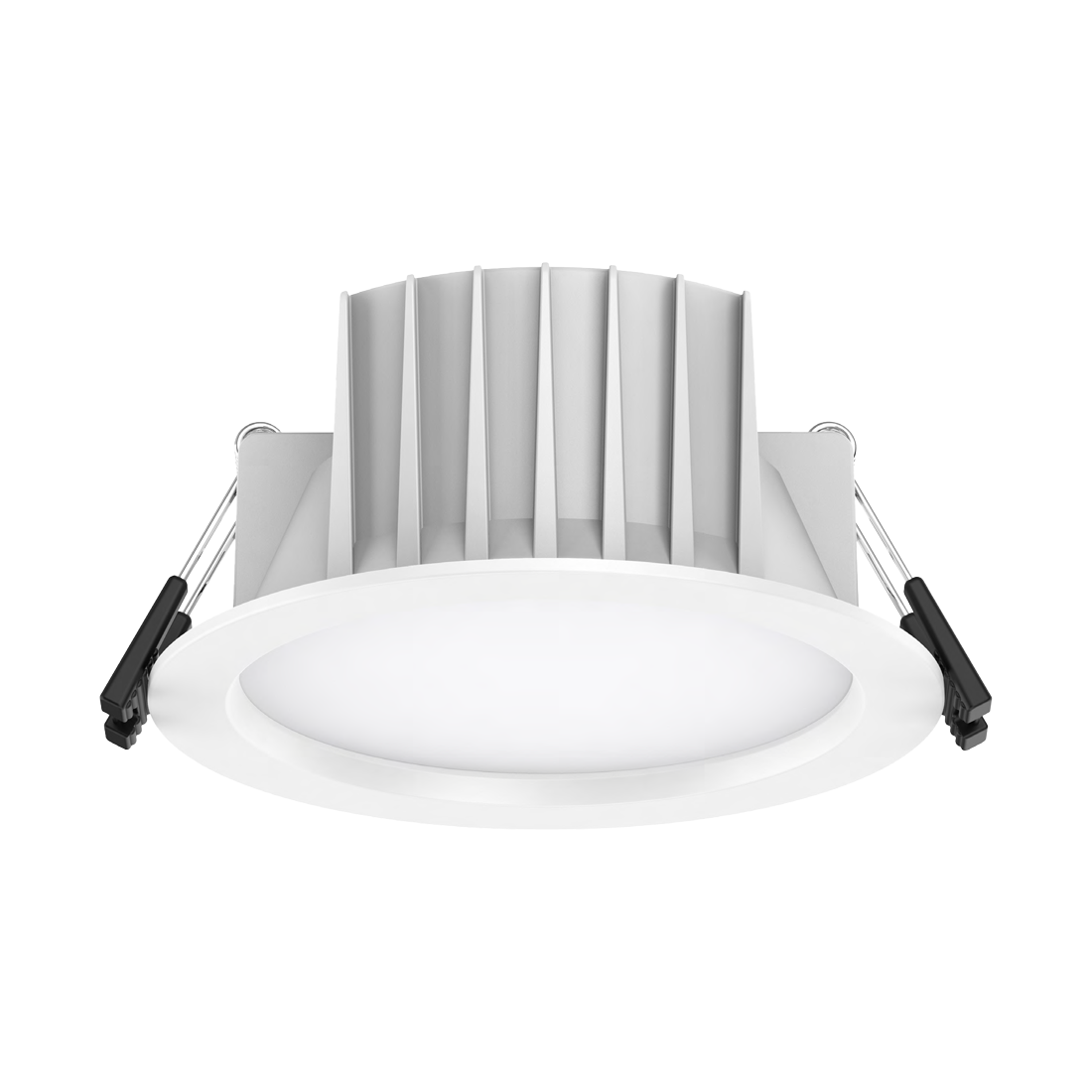

This LED downlight is a compact and efficient recessed lighting solution engineered for consistent general illumination across residential and light commercial environments. Operating at 8W with an output of 800 lumens, it delivers balanced luminous efficacy while maintaining stable performance through its integrated SMD LED source. The tri-CCT functionality enables selection between 3000K (warm white), 4000K (cool white), and 5700K (daylight white), allowing precise adaptation to different spatial requirements and visual comfort preferences without the need for multiple fittings.
Constructed from aluminium and plastic, this fitting is designed to provide effective thermal management and long-term structural durability. The 90° beam angle ensures broad and uniform light distribution, reducing harsh shadows and enhancing ambient coverage. With a CRI of 80, it provides reliable colour rendering suitable for everyday applications, while the frosted diffuser assists in minimising glare and producing a smooth, diffused light output.
Rated IP54 on the front face, this downlight offers protection against dust ingress and splashing water, making it suitable for use in areas exposed to moisture such as bathrooms or sheltered outdoor zones. The IC-4 (IC-F) rating allows safe installation beneath insulation, while the V-0 flame rating enhances fire resistance, supporting compliance in safety-critical installations. Its robust design operates effectively across a wide ambient temperature range from -20°C to 40°C, ensuring dependable performance in varying environmental conditions.
The fitting features triac dimming compatibility for adjustable light levels, enabling seamless integration into controlled lighting systems. It includes a 0.6m flex and plug for straightforward installation and is powered by an integrated driver operating at 220-240V AC 50Hz. With a 50,000-hour lifespan and compliance with LM-80 and RCM standards, this downlight represents a reliable and low-maintenance lighting solution designed for long-term efficiency and performance.
COLOUR: White
MATERIAL: Aluminium and plastic
WATTAGE: 8W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 800lm
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5700K (daylight white)
CRI: 80
BEAM ANGLE: 90°
IP RATING: IP54 (weather-resistant, front face only)
DIMENSIONS: 106mm (diameter) x 48mm (height)
CUTOUT: 81mm (diameter)
WEIGHT: 0.16kg
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes (triac dimming)
COMPLIANCE: LM-80, RCM
PHOTOMETRIC DATA: Available upon request
IC RATING: IC-4 (IC-F)
FLAME RATING: V-0
LED SOURCE: SMD
INCLUDES: 0.6m flex & plug
WARRANTY: 3 years (domestic); 2 years (commercial)
