This LED downlight is a high-performance illumination solution designed for recessed mounting in various indoor environments. Engineered with a 25W power rating, it delivers a maximum luminous flux of 2500lm, ensuring robust brightness across its 110-degree beam angle. The integration of SMD2835 LED chips provides a reliable light source with a color rendering index of 80 or higher, maintaining visual clarity and color accuracy.
A key feature of this luminaire is its Tri-CCT functionality, allowing users to switch between 3000K warm white, 4000K cool white, and 5700K daylight white via a switch located on the driver. The unit is fully dimmable, offering flexibility in light intensity to suit specific atmospheric requirements. It operates on a standard voltage range of 220V-240V AC and includes an external constant current LED driver to ensure stable electrical performance and a high power factor of 0.9.
Constructed from a combination of plastic and aluminium for the housing and heatsink, the fixture is designed for efficient thermal management. The opal polycarbonate diffuser ensures even light distribution while the PBT faceplate provides a clean aesthetic finish. With an IP44 rating for the front face and an IC-4 insulation contact rating, the downlight is suitable for diverse applications, including those requiring 2-way switching or motion sensor compatibility.
Designed for longevity, this LED downlight boasts a lifespan of 30,000 hours and is backed by a 3-year warranty. The physical dimensions include a 230mm diameter and a slim 28mm height, requiring a cutout between 195mm and 210mm for installation. It comes equipped with a 600mm flex and plug for streamlined connectivity, though it must be installed by a licensed electrician to ensure compliance with safety standards and optimal dimmer compatibility.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Suitable for 2-way switching; suitable for use with motion sensor
WARRANTY: 3 years
COLOUR: White
MATERIAL: Plastic and aluminium (housing and heatsink); opal polycarbonate (diffuser); PBT (faceplate)
IP RATING: IP20 (IP44 for front face)
LUMENS: 2250lm (for 3000K); 2500lm (for 4000K); 2375lm (for 5700K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5700K (daylight white)
VOLTAGE: 220V-240V AC (50/60Hz)
WATTAGE: 25W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes

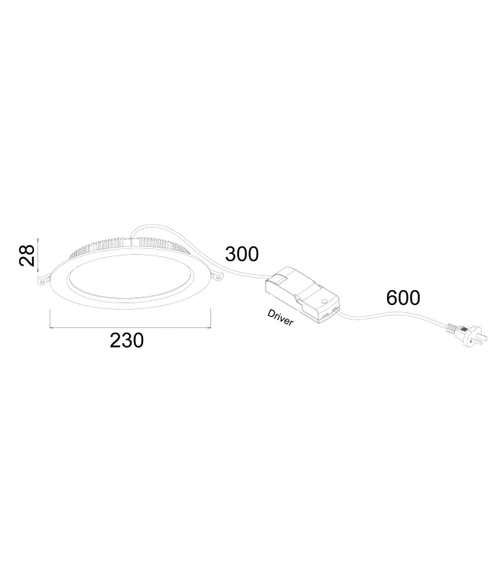

DIMENSIONS: 230mm (diameter) x 28mm (height)
CUTOUT: 195mm-210mm (diameter)
MOUNTING: Recessed
CLASS: II
CRI: ≥80
BEAM ANGLE: 110°
LIFESPAN: 30,000 hours
OPERATION: CCT switch on driver
POWER FACTOR: 0.9
AMBIENT TEMP: -20°C to 40°C
IC RATING: IC-4
PHOTOMETRIC DATA: Available upon request
INSTALLATION: Must be installed by a licensed electrician; check with a licensed electrician for minimum and maximum dimmer loads
FEATURES: LED chips (SMD2835); flex and plug (600mm); external constant current LED driver included
REMARKS: May be compatible with other untested dimmers
