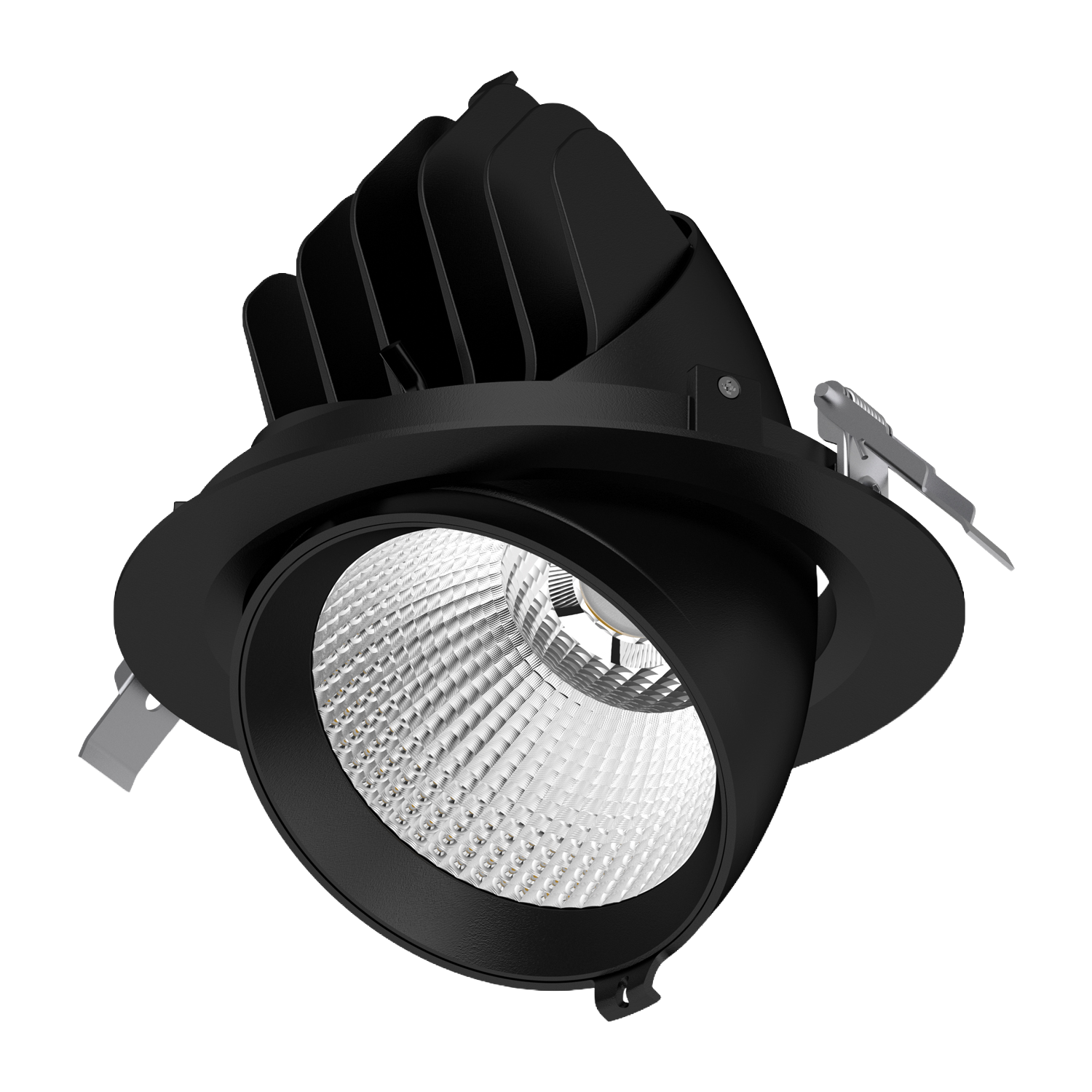

This commercial grade LED downlight is a high-performance lighting solution designed to replace traditional metal halide and CFL fixtures in both residential and commercial environments. Engineered with a single point COB LED and a perfectly matched optical reflector, it delivers a precise 60-degree beam angle with scallop-styled illumination. The unit is constructed from durable aluminium with a glass diffuser and features a satin black finish, ensuring a sophisticated aesthetic while maintaining robust thermal management for a lifespan of up to 50,000 hours.
Technical versatility is a hallmark of this luminaire, which features a switchable colour temperature system allowing users to select between 3000K warm white, 4000K cool white, and 5000K daylight white. Operating at 25W on a 240V AC supply, the fixture produces a maximum output of 2231 lumens and maintains a high Colour Rendering Index of 90 for superior light quality. The integrated DALI dimming capability provides advanced control over light levels, making it suitable for sophisticated architectural lighting schemes and energy-efficient installations.
Installation is streamlined through a recessed mounting design requiring a 160mm to 170mm cutout, with physical dimensions of 180mm in diameter and 147mm in height. The fixture is highly adjustable, offering up to a 45-degree tilt to direct light precisely where needed, and carries an IC-4 rating, permitting its use in applications where air transfer between living and roof spaces is restricted. For optimal performance and safety, a 20mm clearance for air transfer is recommended, and the included LED driver must not be covered with insulation material.
Safety and reliability are prioritized with a comprehensive 5-year residential replacement warranty and an IP20 rating for indoor applications. The luminaire emits no UV or IR radiation, ensuring a safe environment for occupants and sensitive materials alike. This professional-grade lighting component must be installed by a licensed electrician to ensure compliance with local electrical standards and to maintain the integrity of its advanced electronic components and thermal protection systems.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Suitable for replacing metal halide and CFL style downlights in residential and commercial spaces
WARRANTY: 5 years replacement (residential; reduced to 3 years if installed without adequate air transfer on all sides)
COLOUR: Black (satin finish)
MATERIAL: Glass (diffuser)
IP RATING: IP20 (indoors only)
LUMENS: 2010lm (for 3000K); 2231lm (for 4000K); 2230lm (for 5000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
VOLTAGE: 240V AC
WATTAGE: 25W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes
DALI: Yes
DIMENSIONS: 180mm (diameter) x 147mm (height)
CUTOUT: 160mm-170mm (diameter)
MOUNTING: Recessed
CRI: 90
BEAM ANGLE: 60°
ADJUSTABLE: Yes (up to 45° tilt)
LIFESPAN: 50,000 hours
IC RATING: IC-4 rated (downlight can be used where air transfer is not permitted or not desired between living space and roof space)
PHOTOMETRIC DATA: Available upon request
INSTALLATION: This product must be installed by professional electrician
FEATURES: No UV/IR emissions; single point COB high performing LED; perfectly matched optical reflector; scallop styled illumination
REMARKS: LED driver is not suitable for covering with insulation material; not to be used in fire rated applications; keep away from hot steam and corrosive gas; a 20mm clearance is recommended for air transfer.
