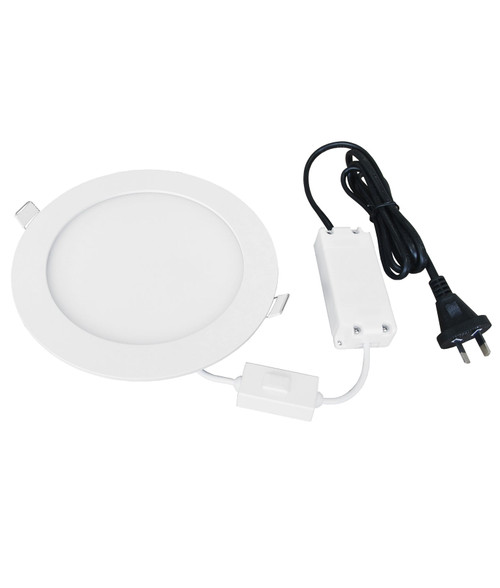

This LED downlight is a sophisticated indoor lighting solution engineered for recessed ceiling installations, featuring an ultra-slim profile with a height of only 22mm. Constructed from high-quality polycarbonate, the unit incorporates advanced SMD2835 LED chips that deliver a high color rendering index of over 80, ensuring accurate color representation in various interior environments. The integrated Tri-CCT technology allows users to switch between 3000K, 4000K, and 5000K color temperatures via an inline switch located on the DC cable, providing versatile illumination options for residential and commercial spaces.
Performance is optimized through a 12W power consumption that generates a maximum output of 960 lumens, achieving high luminous efficacy across its switchable spectrum. The optical system utilizes a white diffuser to distribute light at a wide 110-degree beam angle, minimizing glare while maximizing coverage. This luminaire is fully dimmable and compatible with standard 220V-240V AC power supplies, featuring a high power factor of 0.9 and a rated lifespan of 30,000 hours for long-term operational reliability.
Technical specifications include an IC-4 rating, which permits the fitting to be abutted against building insulation, although the external driver must remain uncovered to maintain thermal efficiency. The unit is designed for a 155mm diameter cutout and includes a 1.2m flex and plug for streamlined connectivity. With an IP40 rating and Class II double insulation, the hardware is suitable for a variety of applications, including 2-way switching configurations and integration with microwave or motion sensor systems.
Safety and installation compliance require that this fixture be fitted by a licensed electrician to ensure adherence to electrical standards. The package includes a dedicated driver measuring 87mm by 37mm by 20mm, which supports the low-profile design of the main housing. Backed by a 3-year warranty, this lighting component represents a durable and energy-efficient choice for modern ceiling lighting requirements, operating effectively within an ambient temperature range of -20 to 40 degrees Celsius.
PRODUCT TYPE: LED Downlight
APPLICATIONS: Suitable for 2-way switching; suitable for use with microwave & motion sensor
WARRANTY: 3 years
COLOUR: White (housing); white (diffuser)
MATERIAL: Polycarbonate
IP RATING: IP40
LUMENS: 840lm (for 3000K); 960lm (for 4000K); 900lm (for 5000K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
VOLTAGE: 220V-240V AC
WATTAGE: 12W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: Yes
DIMENSIONS: 175mm (diameter) x 22mm (height)
CUTOUT: 155mm (diameter)
MOUNTING: Recessed
CLASS: II
CRI: >80
BEAM ANGLE: 110°
LIFESPAN: 30,000 hours
AMBIENT TEMP: -20 to 40°C
POWER FACTOR: 0.9
IC RATING: IC-4 rated
LED CHIPS: SMD2835
DRIVER SIZE: 87mm x 37mm x 20mm
INLINE SWITCH SIZE: 45mm x 23mm x 15mm
INSTALLATION: This product must be installed by a licensed electrician
FEATURES: Ultra slim design; CCT switch on DC cable; flex & plug (1.2m); double insulated
REMARKS: Driver should not be covered with thermal insulation
