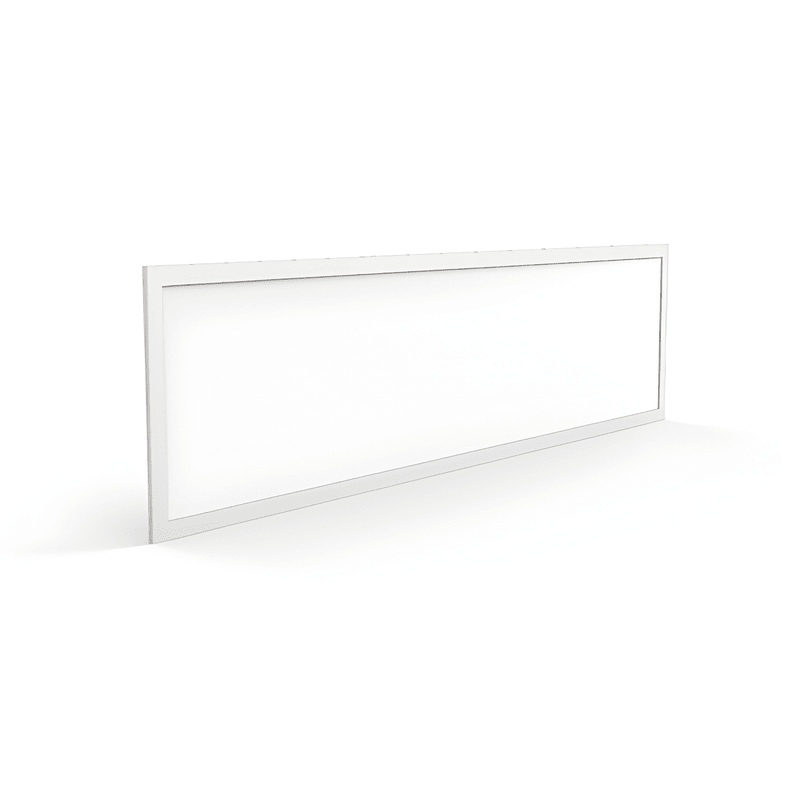

This LED backlit panel light is designed to provide efficient and uniform illumination for a wide range of indoor applications, combining modern performance with a clean, low-profile form factor. Operating at 24W and delivering 2400lm, it produces consistent and evenly distributed light across a broad 120° beam angle. The integrated LED system ensures stable output and long-term reliability, while the construction supports efficient heat dissipation for sustained performance throughout its operational life.
The fitting features Tri-CCT functionality, allowing selection between 3000K, 4000K, and 6000K to suit varying lighting requirements and interior environments. With a luminaire efficacy of 100 lm/W, it offers a highly efficient alternative to traditional fluorescent fittings, reducing energy consumption while maintaining strong illumination levels. A CRI of 80 ensures adequate colour rendering for general-purpose applications, supporting clear visibility in both commercial and residential spaces.
Constructed from aluminium and finished in white, the panel measures 595mm x 295mm x 32mm, making it compatible with standard ceiling grid layouts. The IP20 rating confirms its suitability for indoor use only, protecting against solid objects while ensuring safe operation in dry environments. Designed to operate on 220-240V AC 50Hz, the unit includes a flex and plug to streamline installation and connection.
Primarily intended for recessed installation, this panel can also be surface mounted using appropriate accessories, offering flexibility across different ceiling configurations. It is engineered to operate within an ambient temperature range of -20°C to 45°C, ensuring reliable performance under varying conditions. With a rated lifespan of 50,000 hours and backed by a 5 year warranty, this fitting delivers a dependable and cost-effective lighting solution.
COLOUR: White
MATERIAL: Aluminium
DIMENSIONS: 595mm x 295mm x 32mm
IP RATING: IP20 (indoors only)
WATTAGE: 24W
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 2400lm
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6000K (daylight white)
CRI: 80
BEAM ANGLE: 120°
LUMINAIRE EFFICACY: 100 lm/W
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -20°C to 45°C
DIMMABLE: No

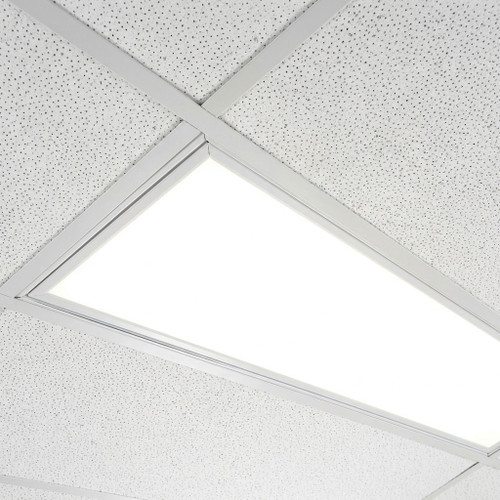

MOUNTING: Recessed (can be surface mounted)
INCLUDES: Flex & plug
PHOTOMETRIC DATA: Available upon request
WARRANTY: 5 years
