This commercial grade LED backlit panel light is designed to deliver high-performance illumination with exceptional colour accuracy, making it suitable for demanding environments where visual precision is essential. With a maximum output of 2088lm and a wide 120° beam angle, it provides uniform light distribution across its surface. The integrated LED system ensures stable operation and long-term reliability, while the high CRI of 95 enables accurate colour rendering, supporting applications such as medical environments where detection of subtle colour variations is critical.
The luminaire features Tri-CCT technology, allowing selection between 4000K, 4500K, and 5000K to suit different operational requirements and ambient conditions. Its adjustable wattage of 24W, 20W, or 15W provides flexibility in balancing energy consumption and light output. With a luminaire efficacy of 87 lm/W, it offers an efficient alternative to traditional fluorescent fittings while maintaining consistent performance throughout its 50,000-hour lifespan. The low glare characteristic of UGR <19 further enhances visual comfort, reducing eye strain in professional settings.
Constructed with a slim profile measuring 595mm x 295mm x 32mm, the panel integrates seamlessly into standard ceiling systems. The IP44 rating provides protection against moisture ingress, making it suitable for indoor environments with occasional humidity exposure. Designed to operate on 220-240V AC 50Hz, the fitting includes a flex and plug for straightforward electrical connection and installation.

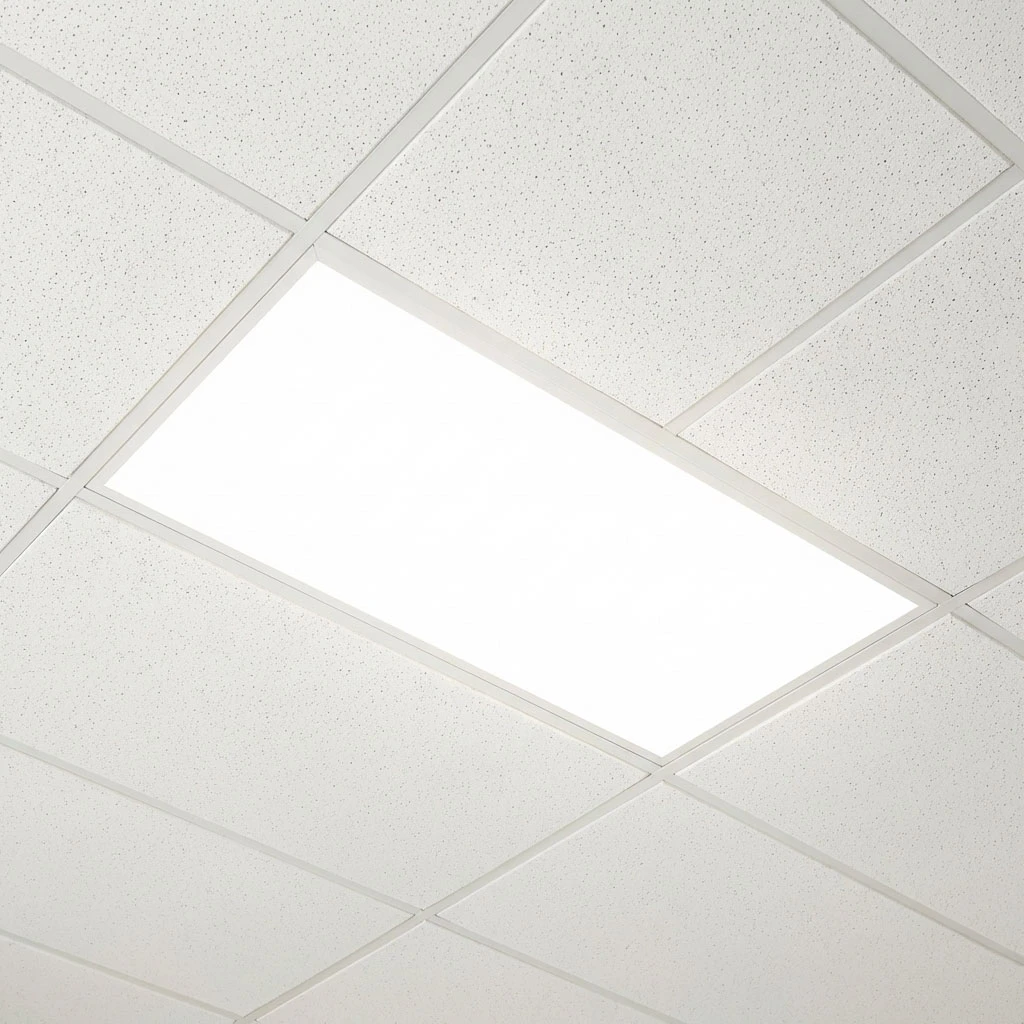

Primarily intended for recessed mounting, this panel can also be surface mounted or suspended using compatible accessories, offering versatility across different installation requirements. It is engineered to operate reliably within an ambient temperature range of -20°C to 45°C, ensuring consistent performance in varied conditions. Backed by a 5 year warranty, this fitting represents a durable and dependable lighting solution for professional and specialised applications.
COLOUR: White

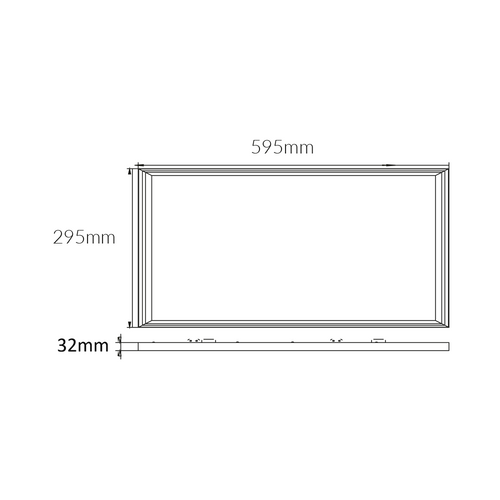

DIMENSIONS: 595mm x 295mm x 32mm
IP RATING: IP44 (weather-resistant)
WATTAGE: 24W (adjustable to 20W or 15W)
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 2088lm
COLOUR TEMP: 4000K (cool white), 4500K (cool white), 5000K (daylight white)
CRI: 95
UGR: <19 (on CRI90 models only)
BEAM ANGLE: 120°
LUMINAIRE EFFICACY: 87 lm/W
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -20°C to 45°C
DIMMABLE: No
MOUNTING: Recessed (can be surface mounted or suspended)
INCLUDES: Flex & plug
APPLICATIONS: Medical applications (cyanosis detection)
PHOTOMETRIC DATA: Available upon request
WARRANTY: 5 years
