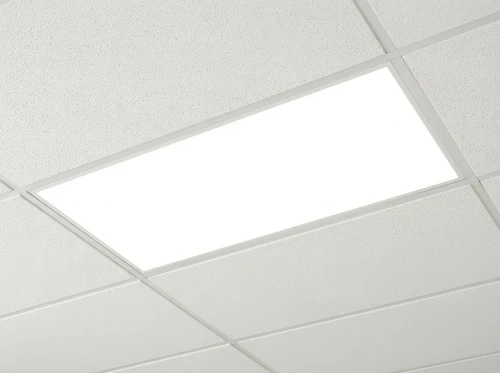

This commercial grade LED backlit panel light is engineered to deliver high-output illumination with excellent uniformity and reliability, making it ideal for demanding professional environments. Operating at 76W with a dual driver configuration, it produces an impressive 7980lm while maintaining stable performance across its wide 120° beam angle. The integrated LED system ensures consistent light distribution with minimal variation, while a CRI of 90 provides high colour accuracy suitable for commercial and task-oriented applications.
The Tri-CCT functionality enables selection between 4000K, 4500K, and 5000K, allowing the lighting output to be tailored to different operational requirements and ambient conditions. With a luminaire efficacy of 105 lm/W, this fitting delivers strong energy efficiency compared to traditional fluorescent troffers, reducing power consumption while maintaining high lumen output. The low glare performance of UGR <19 further enhances visual comfort, making it suitable for environments where prolonged exposure to lighting is expected.
Constructed from aluminium and finished in white, the panel features a slim 32mm profile with overall dimensions of 1195mm x 595mm, ensuring compatibility with standard ceiling grid systems. The IP44 rating provides protection against moisture ingress, allowing installation in indoor environments where occasional humidity may be present. Designed for operation on 220-240V AC 50Hz, the unit includes a flex and plug for simplified installation and connection.
Primarily designed for recessed installation, this panel can also be surface mounted using appropriate accessories, offering flexibility across different ceiling configurations. It operates reliably within an ambient temperature range of -20°C to 45°C and is built to deliver a long service life of 50,000 hours. Backed by a 5 year warranty, this panel light represents a robust and efficient lighting solution for commercial applications.
COLOUR: White
MATERIAL: Aluminium
DIMENSIONS: 1195mm x 595mm x 32mm
IP RATING: IP44 (weather-resistant)
WATTAGE: 76W (with 2x38W drivers)
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 7980lm
COLOUR TEMP: 4000K (cool white), 4500K (cool white), 5000K (daylight white)
CRI: 90
UGR: <19
BEAM ANGLE: 120°
LUMINAIRE EFFICACY: 105 lm/W
WEIGHT: 4.5kg
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -20°C to 45°C
DIMMABLE: No
MOUNTING: Recessed (can be surface mounted)
INCLUDES: Flex & plug
PHOTOMETRIC DATA: Available upon request
WARRANTY: 5 years
