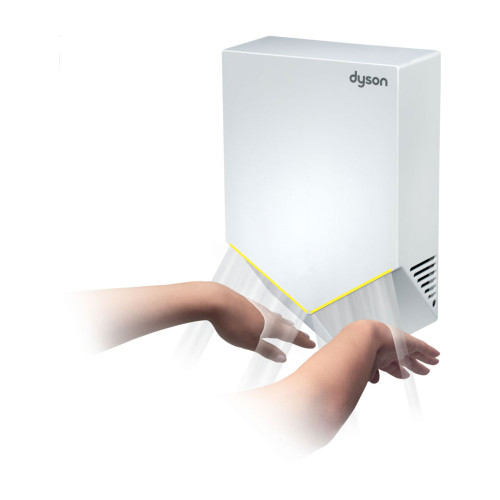

This hand dryer is a high-performance solution engineered for hygienic efficiency and compact spatial integration. It features a 1,000W digital brushless motor that achieves a motor speed of 83,000rpm, generating an airspeed of 690 km/h and an airflow rate of 20l/s. This advanced propulsion system ensures a rapid drying time of approximately 12 seconds while maintaining a standby power consumption of less than 0.5W. The unit is constructed with a durable polycarbonate fascia and an ABS/PBT plastic back plate mounting bracket, finished in white, with an antibacterial moulded additive.
Central to its hygienic design is the integrated H13 HEPA filter, which utilizes a glass fibre and fleece prelayer to capture 99.97% of particles as small as 0.3 microns. This filtration system ensures that the air used for drying is purified, meeting rigorous compliance standards including NSF, Carbon Trust, and Quiet Mark. The device operates via touch-free capacitive sensor activation, minimizing physical contact and cross-contamination risks. Additionally, the exterior is secured with anti-tamper 4 mm Pin-Hex screws, providing a robust installation suitable for high-traffic environments.
Technical specifications include a voltage range of 200V-240V at 50/60Hz and an IP24 rating for protection against moisture ingress. The unit measures 394mm in height, 234mm in width, and 100mm in depth, with a total weight of 2.8kg, making it an ideal choice for facilities with limited wall space. Acoustic performance is optimized to produce a sound power level of 79 dB(A) and a sound pressure level of 63 dB(A) at a distance of 2 metres. The motor switching rate of 5,500 per second allows for precise control and consistent performance across varying altitudes up to 3,000 metres.
Maintenance and safety are facilitated by an easy-to-service design featuring a safe electrical disconnect and an operation lock-out period of 30 seconds. The product is backed by a 5-year warranty, reflecting its reliability and long-term durability in commercial applications. Designed to operate within a temperature range of 0°C to 40°C, this surface-mounted hand dryer combines sophisticated engineering with practical functionality. It represents a sustainable and efficient alternative to traditional paper towels, significantly reducing waste and operational costs while enhancing user experience.
PRODUCT TYPE: Hand Dryer
WARRANTY: 5 years
COMPLIANCE: NSF; Carbon Trust; Quiet Mark
COLOUR: White
MATERIAL: Polycarbonate (fascia); ABS/PBT plastic (back plate mounting bracket)
IP RATING: IP24
VOLTAGE: 200V-240V (50/60Hz)
WATTAGE: 1000W

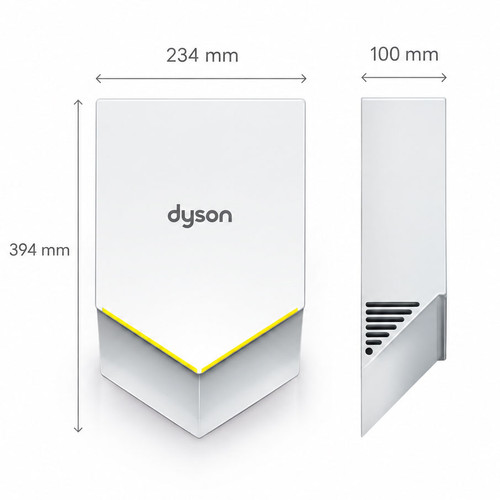

DIMENSIONS: 394mm (height) x 234mm (width) x 100mm (depth)
WEIGHT: 2.8kg
MOUNTING: Surface mounted
MOTOR: 1,000W digital brushless motor
NOISE: 79 dB(A) sound power; 63 dB(A) sound pressure at 2m
MOTION SENSOR: Yes (touch free capacitive sensor activation)

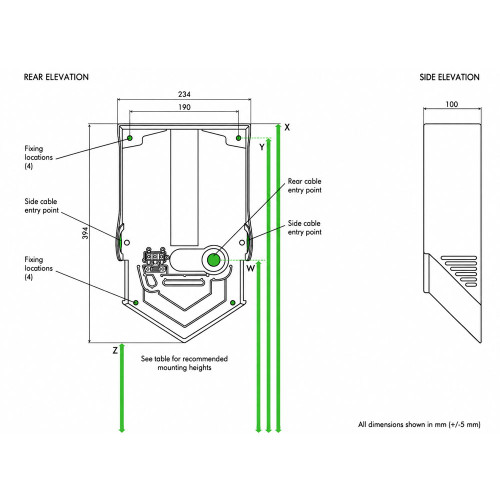

INSTALLATION: Anti-tamper 4 mm Pin-Hex exterior screw type
FEATURES: Engineered for hygienic performance; designed for compact spaces; antibacterial moulded additive (helps prevent bacterial growth); touch free capacitive sensor activation; operation lock-out period (30 seconds); easy to service with safe electrical disconnect
STANDBY POWER CONSUMPTION: Less than 0.5W
FILTER: H13 HEPA filter (glass fibre and fleece prelayer)
FILTER EFFICIENCY: Removes 99.97% of particles as small as 0.3 microns
AIRSPEED: 690 km/h
MAXIMUM ALTITUDE: 3,000 metres
MOTOR SWITCHING RATE: 5,500 per second
HEATER TYPE: None
OPERATING TEMP: 0°C-40°C
AIRFLOW: 20l/s
DRYING TIME: 12 seconds
MOTOR SPEED: 83,000rpm
MAINTENANCE: Regularly clean the air inlets; check for blockages, dust or debris; wipe surfaces with a soft, non-abrasive cleaner. Do not pressure wash.
