This flood light is a sophisticated outdoor illumination solution engineered for high-performance applications in BBQ areas, backyard lighting, and external entertaining spaces. Constructed with a robust aluminium fascia and a frosted glass lens, the luminaire features a C5 powder coating that ensures marine-grade durability suitable for coastal environments. The integration of an anti-condensation breathing valve and improved moisture prevention technology maintains internal integrity, while the IP66 and IK08 ratings provide comprehensive protection against severe weather conditions and mechanical impacts.
Technically advanced, this fixture utilizes a driver-on-board SMD LED system that operates on a 24V DC constant voltage input, requiring a compatible external driver for parallel wiring. The unit offers exceptional versatility through a multi-wattage selector switch allowing for 20W, 30W, or 50W configurations, complemented by a tri-colour selector switch for 3000K, 4000K, and 5500K colour temperatures. With a maximum output of 5846 lumens and a wide 120-degree beam angle, it delivers high-intensity light distribution with a luminaire efficacy of 110lm/W and a power factor of at least 1.0.
Installation is streamlined via a surface-mounted angle bracket designed for precise positioning, and the package includes a 26cm spike for versatile mounting options. The electrical architecture incorporates 4.5KV surge protection and a built-in sensor adaptor interface, ensuring reliable operation within a broad temperature range from -40°C to +45°C. This professional-grade lighting instrument is designed for a 20,000-hour lifespan, providing a long-term, low-maintenance solution for demanding outdoor environments where durability and light quality are paramount.
Adhering to strict safety and performance standards, this product must be installed by a licensed electrician to ensure optimal functionality and compliance with local regulations. The sleek and stylish design occupies a minimal projected area of 0.020m², making it an unobtrusive yet powerful addition to any architectural landscape. Backed by a 3-year warranty, this flood light represents a pinnacle of outdoor lighting engineering, combining adjustable power and colour parameters with superior environmental resistance for consistent, high-quality performance.
PRODUCT TYPE: Flood Light
APPLICATIONS: BBQ areas; outdoor entertaining areas; backyard lighting
WARRANTY: 3 years
COLOUR: Black
MATERIAL: Aluminium fascia; frosted glass lens; powder coating (C5 marine grade)
IP RATING: IP66 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
LUMENS: 2496lm (for 3000K, 20W); 2658lm (for 4000K, 20W); 2591lm (for 5500K, 20W); 3682lm (for 3000K, 30W); 4075lm (for 4000K, 30W); 3826lm (for 5500K, 30W); 5148lm (for 3000K, 50W); 5846lm (for 4000K, 50W); 5387lm (for 5500K, 50W)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5500K (daylight white)
VOLTAGE: 24V DC
WATTAGE: 20W / 30W / 50W (adjustable)
DRIVER: Requires 24V driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No

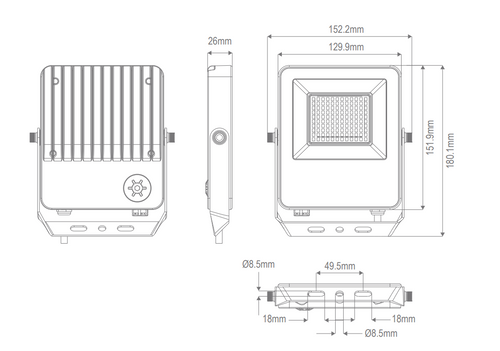

DIMENSIONS: 152.2mm (width) x 180.1mm (height) x 26mm (depth)
WEIGHT: 0.72kg
MOUNTING: Surface mounted (angle installation bracket)
CRI: ≥70
BEAM ANGLE: 120°
LIFESPAN: 20,000 hours
OPERATION: Multi-wattage selector switch; tri-colour selector switch; CCT and Power selectable by DIP switch
POWER FACTOR: ≥1.0
WORKING TEMP: -40°C to +45°C
LUMINAIRE EFFICACY: 110lm/W
INSTALLATION: This product must be installed by a licensed electrician; angle installation bracket for ease of installation
SURGE PROTECTION: 4.5KV
SENSOR INTERFACE: Built-in sensor adaptor interface
ANTI-CONDENSATION VALVE: Frosted glass anti-condensation breathing valve
MAX PROJECTED AREA: 0.020m²
ACCESSORIES: 26cm spike (included); 50cm spike (sold separately)
FEATURES: Sleek and stylish design; improved condensation prevention technology; SMD LED type; DOB (driver on board)
REMARKS: 24V DC constant voltage LED driver required - wire in parallel; keep away from hot steam and corrosive gas
