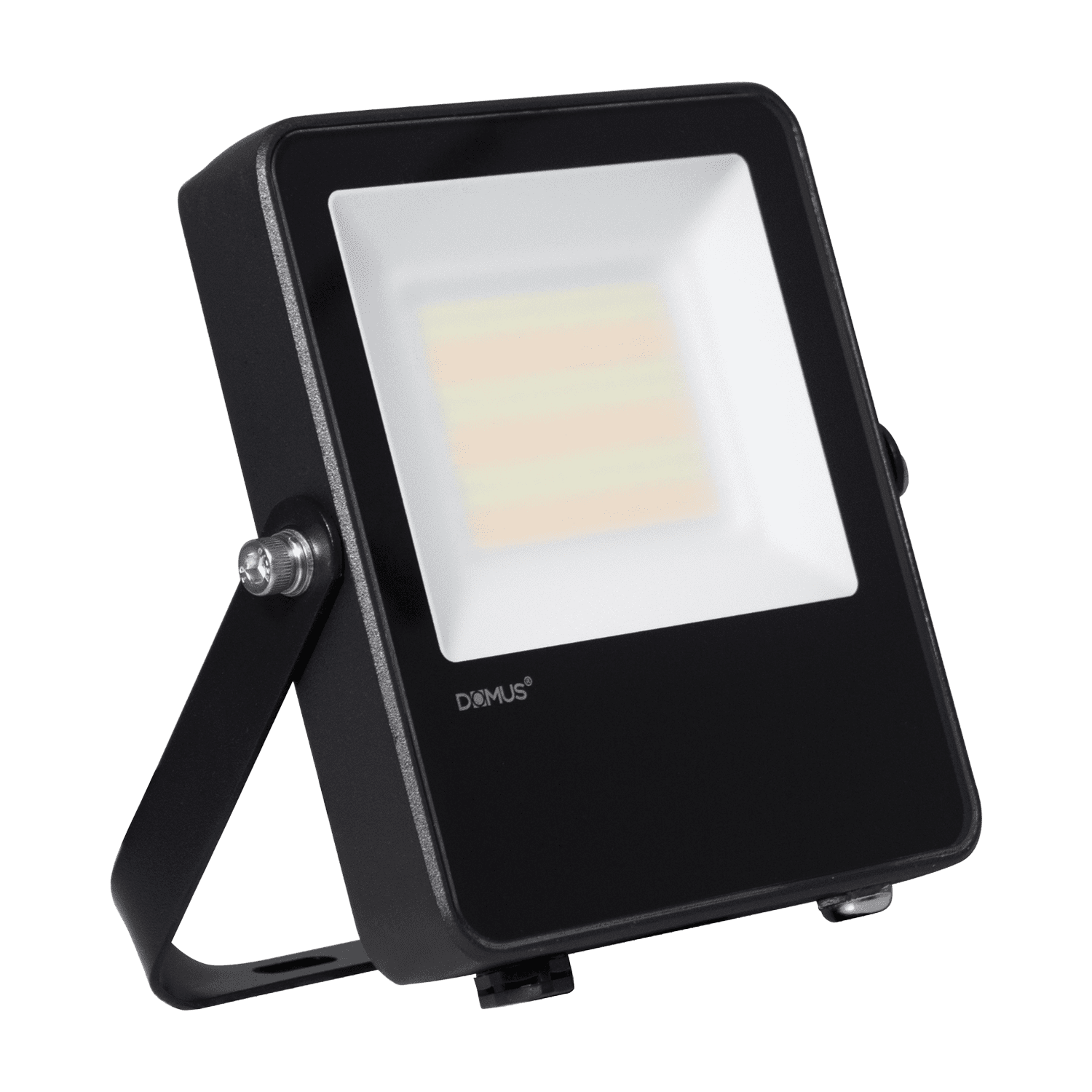

This LED floodlight is a robust and highly efficient lighting solution designed for outdoor environments requiring strong illumination, durability, and versatility. Constructed with an aluminium fascia and a frosted glass lens, the luminaire combines strength with optical refinement to deliver a uniform light output while minimising glare. The black finish provides a modern, understated appearance that complements residential and commercial installations alike, while its compact body, measuring 152.2mm in length, 26mm in width, and 180.1mm in height, ensures ease of integration into varied architectural settings.
Engineered with tri-CCT technology, this fitting allows the user to select between 3000K warm white, 4000K cool white, and 5500K daylight white colour temperatures, ensuring adaptability to different applications. Its selectable wattage design further enhances flexibility, enabling adjustment between 20W, 30W, and 50W output within the same unit. The floodlight achieves impressive lumen outputs of up to 5360lm with a luminous efficacy of 110lm/W, while the wide 120° beam angle ensures extensive area coverage. Integrated SMD LED chips and a CRI of ≥70 deliver consistent performance suitable for task, security, and ambient lighting applications.
The unit’s performance is reinforced by its IP66 rating, confirming full protection against dust and powerful water jets, making it suitable for installation in fully exposed outdoor areas. Additionally, its IK08 impact rating provides resilience against mechanical shocks and vandalism. Operational stability is supported by a driver-on-board (DOB) system, 4.5KV surge protection, and an anti-condensation breathing valve that prevents internal moisture build-up, ensuring reliable function in demanding climates. The luminaire also offers a sensor adaptor interface for compatibility with an optional Plug-N-Play PIR sensor, allowing for seamless integration of motion-activated lighting control.
For practical installation, the floodlight is supplied with a 1.5m flex and plug along with an all-angle bracket that facilitates directional adjustment and secure mounting. Designed for applications such as BBQ areas, outdoor entertaining spaces, and backyard illumination, this fitting combines reliability with efficiency to meet diverse requirements. Backed by a 3-year replacement warranty, it represents a dependable long-term solution for both residential and light commercial outdoor lighting projects.
COLOUR: Black
MATERIAL: Aluminium fascia, frosted glass lens
DIMENSIONS: 152.2mm (length) x 26mm (width) x 160.5mm (height)
VOLTAGE: 240V
LED WATTAGE: 20W/30W/50W (switchable)
IP RATING: IP66 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5500K (daylight white)
LUMENS 20W: 2250lm (3000K), 2360lm (4000K), 2380lm (5500K)
LUMENS 30W: 3230lm (3000K), 3230lm (4000K), 3430lm (5500K)
LUMENS 50W: 5060lm (3000K), 5060lm (4000K), 5360lm (5500K)
LUMINOUS EFFICACY: 110lm/W
LED TYPE: SMD
CRI: ≥70
BEAM ANGLE: 120°
DIMMABLE: No
LIFE SPAN: 20,000 hours
DRIVER: Yes (DOB - driver on board)
SURGE PROTECTION: 4.5KV
INCLUDES: 1.5m flex and plug, all-angle installation bracket
FEATURES: Anti-condensation breathing valve (prevents condensation build-up behind lens)
SENSOR ADAPTOR INTERFACE: Yes (sold separately for optional Plug-N-Play PIR sensor)
APPLICATIONS: BBQ areas, outdoor entertaining areas, backyard lighting
WARRANTY: 3 years (replacement)
