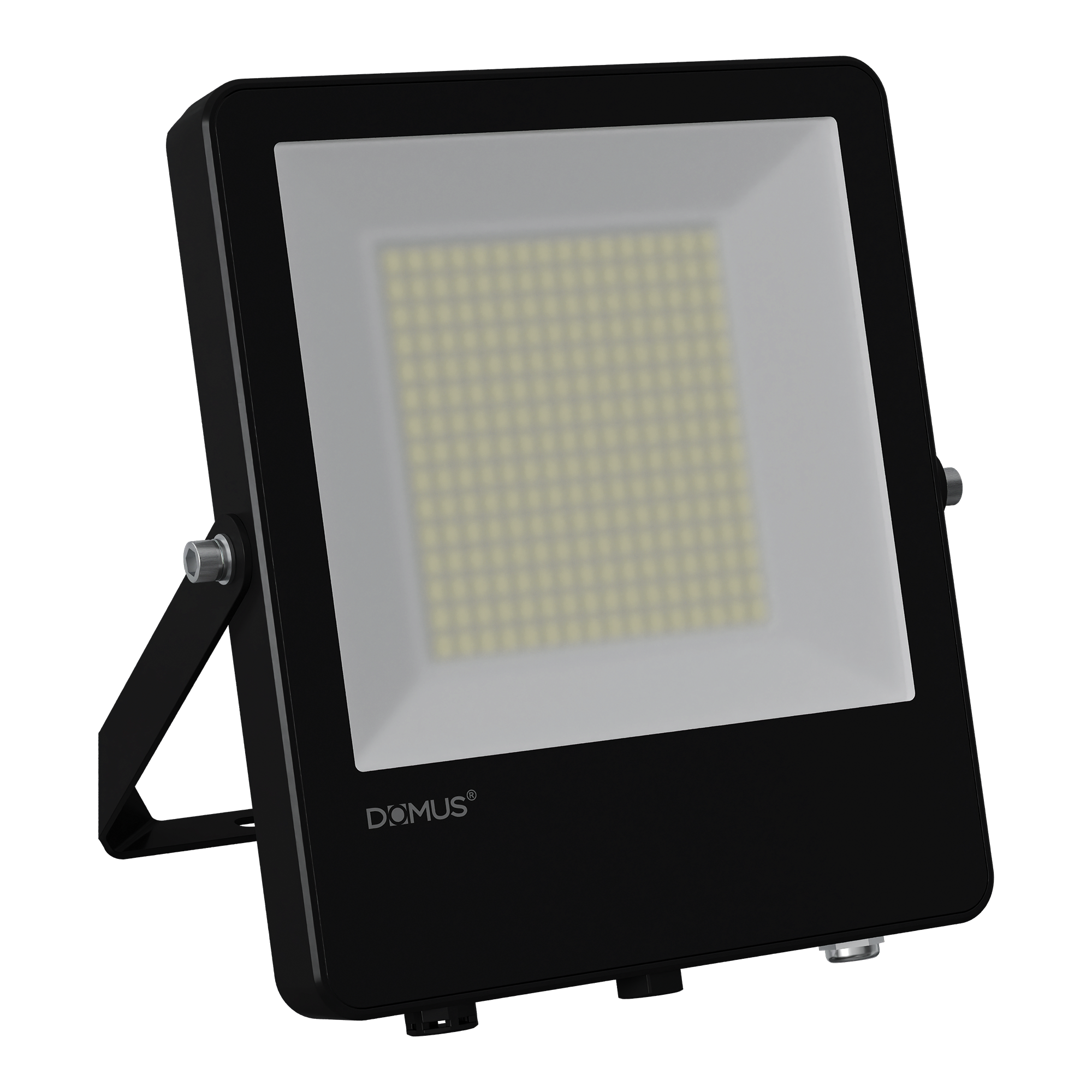

This flood light is a high-performance illumination solution engineered for demanding outdoor environments such as coastal areas and backyard entertaining spaces. Constructed with a robust aluminium fascia and a C5 marine-grade powder coating, the luminaire provides exceptional resistance to corrosion and harsh atmospheric conditions. The integration of a frosted glass lens and an advanced anti-condensation breathing valve ensures optimal light diffusion while preventing internal moisture buildup, maintaining the integrity of the internal components over its 20,000-hour lifespan.
Technical excellence is demonstrated through the versatile tri-colour selector switch, allowing users to transition between 3000K warm white, 4000K cool white, and 5500K daylight white temperatures to suit specific lighting requirements. Operating on a 24V DC constant voltage system, this 100W LED fixture delivers a maximum output of 12194 lumens with a wide 120-degree beam angle for comprehensive area coverage. The unit features a high luminaire efficacy of 110lm/W and a Colour Rendering Index of 70, ensuring efficient energy consumption and reliable colour representation for commercial and residential applications.
Durability and safety are paramount in the design of this fixture, which carries an IP66 weatherproof rating and an IK08 impact resistance certification for protection against vandalism and mechanical stress. The system includes integrated 4.5KV surge protection to safeguard the electronics against voltage spikes, while the built-in sensor adaptor interface provides future-proofing for automated control systems. Designed for surface mounting via an adjustable angle bracket, the compact dimensions of 212.2mm by 255.1mm allow for flexible installation in various architectural contexts.
This professional-grade lighting instrument requires a 24V DC driver for operation and is designed to be wired in parallel for consistent performance across multiple units. The product is backed by a three-year warranty, reflecting its superior build quality and reliability in temperatures ranging from -40°C to 45°C. Whether utilized for BBQ areas or large-scale outdoor landscapes, this flood light represents a sophisticated synthesis of marine-grade materials and advanced LED technology for long-term exterior illumination.
PRODUCT TYPE: Flood Light
APPLICATIONS: BBQ areas; outdoor entertaining areas; backyard lighting; coastal environments
WARRANTY: 3 years
COLOUR: Black
MATERIAL: Aluminium fascia; frosted glass lens; powder coating (C5 marine grade)
IP RATING: IP66 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
LUMENS: 11490lm (for 3000K); 12194lm (for 4000K); 11666lm (for 5500K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5500K (daylight white)
VOLTAGE: 24V DC
WATTAGE: 100W
DRIVER: Requires 24V driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No

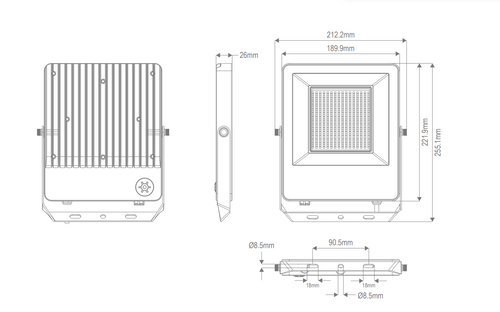

DIMENSIONS: 212.2mm (width) x 255.1mm (height) x 26mm (depth)
MOUNTING: Surface mounted (angle installation bracket)
CRI: 70
BEAM ANGLE: 120°
LIFESPAN: 20,000 hours
WORKING TEMP: -40°C to 45°C
LUMINAIRE EFFICACY: 110lm/W
SURGE PROTECTION: 4.5KV
SENSOR INTERFACE: Built-in sensor adaptor interface
ANTI-CONDENSATION VALVE: Frosted glass anti-condensation breathing valve
ACCESSORIES: 26cm spike; 50cm spike (sold separately)
FEATURES: Multi-wattage selector switch; tri-colour selector switch; improved condensation prevention technology
REMARKS: 24V DC constant voltage LED driver required; wire in parallel
