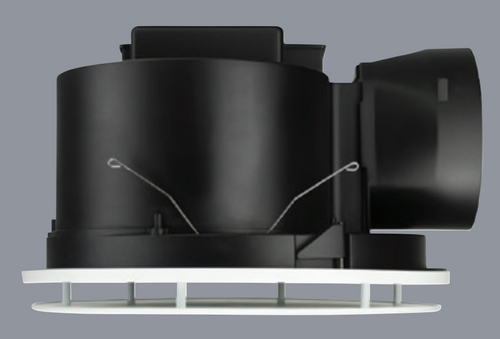

This exhaust fan is engineered to deliver efficient air extraction in medium-sized residential spaces such as bathrooms, laundries, and kitchens. With a clean matt white finish and compact circular profile, it integrates seamlessly into modern ceiling surfaces. The unit is IPX4 rated, providing protection against water splashes and making it suitable for environments exposed to occasional moisture. Designed with a 330mm fascia and 300mm cutout, it ensures secure ceiling mounting while maintaining a minimal visual footprint.
Equipped with a robust 50W AC motor, this fan provides a high-performance airflow output of 460m³/hr, ensuring rapid removal of steam, humidity, and odours. Despite its power, it operates at a low acoustic output of 46dB measured at three metres, making it an ideal solution where noise-sensitive ventilation is required. The electrical system is rated Class I and is compatible with 220–240V AC at 50Hz, ensuring safe operation and long-term durability.
Installation is streamlined using integrated swing clips and an included AU plug with a 0.9m lead. The fan accommodates both 100mm and 150mm ducting and features a built-in back draft shutter to prevent reverse airflow. A minimum ceiling depth of 220mm is required, and the total unit depth includes a 30mm fascia height. These considerations support straightforward integration into new builds or retrofit applications with standard ceiling cavities.
Built with practical maintenance and sustainability in mind, this model features a removable fascia for simplified cleaning and service access. It is shipped in polyfoam-free, 100% recyclable cardboard packaging, reflecting a low-impact environmental approach. The internal airflow path is optimised for minimal resistance, enhancing both extraction efficiency and acoustic performance. Supplied with a three-year replacement warranty, this exhaust fan is a reliable and discreet solution for medium-volume air extraction.
COLOUR: Matt White
IP RATING: IPX4
DIMENSIONS: 185mm (height) x 330mm (diameter), 30mm (fascia height)
CUTOUT: 300mm (diameter)
EXHAUST: 100mm & 150mm duct adaptor with back draft shutter included (Duct not included)
MOTOR TYPE: AC
MOTOR WATTS: 50W
AIRFLOW: 460m³/hr
NOISE: 46dB at 3m
VOLTAGE: 220–240V AC / 50Hz
CONTROL: Yes (AU plug and lead for fan)
CLASS: Class I
ROOM SUITABILITY: Medium rooms up to 24m³
INSTALLATION: Requires minimum ceiling depth of 220mm; swing clips with screws; plug and lead for faster installation; includes round cutout and long lead (0.9m)
FEATURES: Removable fascia for easy cleaning; polyfoam free packaging (100% recyclable cardboard); swing clips for easy clamping in any room; low resistance airflow path
WARRANTY: 3 years (replacement)
