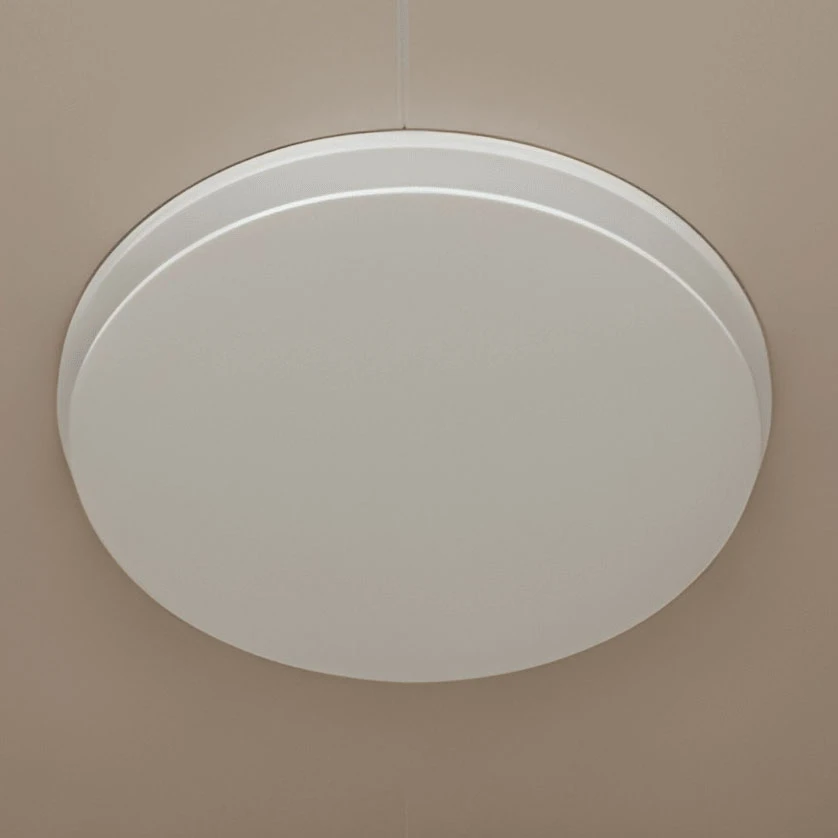

This exhaust fan is designed to deliver efficient and reliable air extraction for small interior spaces where humidity and odour control are critical. Finished in matt white, it employs a precision-balanced 35W AC motor that generates a maximum airflow of 350m³/hr (97 l/sec) while maintaining a quiet operating level of only 44dB at a distance of three metres. Rated IPX4 for moisture resistance and Class I for electrical safety, it provides dependable ventilation in bathrooms, laundries, and other damp environments.
Installation is engineered for simplicity and speed. The fan mounts securely using swing clips and screws and connects via a convenient plug-and-lead system that reduces wiring time. It fits a 255mm diameter ceiling cutout and includes both 100mm and 150mm duct adaptors with an integrated back draft shutter, allowing flexible connection to a range of ducting systems while ensuring that air does not re-enter the room. The fascia diameter of 270mm and height of 185mm present a compact, unobtrusive profile.
Operational performance is enhanced by a built-in delay OFF timer that can be adjusted up to 30 minutes, enabling the fan to continue extracting residual moisture after the main switch is turned off. This feature assists in meeting the National Construction Code requirement for post-operation ventilation in rooms without windows and provides superior humidity management compared to standard exhaust fans.
Constructed from durable materials and supplied in fully recyclable, polyfoam-free packaging, this fan combines environmental responsibility with long service life. Backed by a three-year replacement warranty, it offers a high-quality, low-maintenance solution for small rooms requiring effective and continuous ventilation even after the user has left the space.
COLOUR: White
IP RATING: IPX4

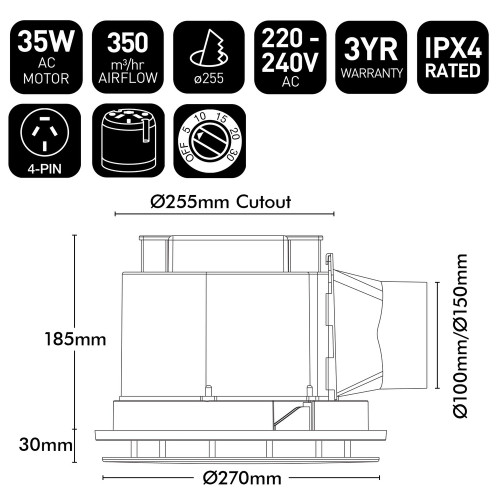

DIMENSIONS: 185mm (height) x 270mm (diameter), 30mm (fascia height)
CUTOUT: 255mm (diameter)
DUCT OUTLET DIAMETER: 100mm & 150mm (duct not included)
MOTOR TYPE: AC
MOTOR WATTS: 35W
AIRFLOW: 350m³/hr (97 l/sec)
NOISE: 44dB at 3m
VOLTAGE: 220-240V AC / 50Hz
CONTROL: Yes (AU plug and lead for fan)
CLASS: Class I
ROOM SUITABILITY: Small rooms
INCLUDES: 4-pin plug base
INSTALLATION: Swing clips with screws; plug and lead for faster installation; includes round cutout and long lead (0.9m)
FEATURES: Built-in delay OFF timer adjustable up to 30 mins; removable fascia for easy cleaning; polyfoam free packaging (100% recyclable cardboard); swing clips for easy clamping in any room; low resistance airflow path
NOTE: NCC requires an exhaust system that is not run continuously and installed in a room without windows to continue running for at least 10 minutes after it is switched OFF
WARRANTY: 3 years (replacement)
