This exhaust fan is designed to provide efficient ventilation while integrating advanced LED illumination for everyday residential wet areas. Finished in white and constructed from durable plastic, the unit features a 285mm square fascia that installs neatly into ceilings with a recessed mounting system, creating a clean and modern appearance suitable for bathrooms, toilets, and kitchens.
The ventilation system operates at a total power rating of 30W and delivers airflow performance of up to 250m³/hr, enabling effective removal of moisture, odours, and airborne contaminants. A 100mm duct connection supports controlled airflow, while the side duct configuration and integrated draft stopper help minimise backdrafts and improve overall energy efficiency. The motor is engineered for quiet operation, allowing continuous ventilation without excessive noise disturbance.
Integrated lighting is provided by a high-efficiency 14W LED light source with tri-colour temperature selection, allowing adjustment between 3000K warm white, 4000K cool white, and 5000K daylight white via a switch located on the rear of the fascia. The LED delivers up to 1030 lumens of output, ensuring clear and balanced illumination that can be tailored to suit different functional and aesthetic requirements within the space.

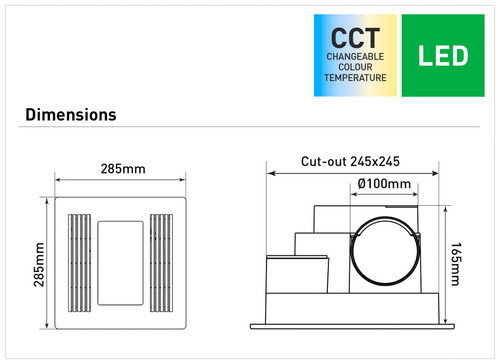

Measuring 285mm by 285mm with a body height of 165mm, the unit requires a 245mm by 245mm ceiling cutout for installation and has a total weight of 2.2kg, allowing for straightforward handling during fitting. The exhaust fan is supplied with separate power cords for the fan and light, along with a side duct and draft stopper to assist installation. Backed by a 1-year replacement warranty, this exhaust fan provides a dependable combination of ventilation efficiency, lighting versatility, and long-term reliability for residential applications.
COLOUR: White
MATERIAL: Plastic
DIMENSIONS: 285mm x 285mm x 165mm (height)
CUTOUT: 245mm x 245mm
WEIGHT: 2.2kg
WATTAGE: 30W
LED WATTAGE: 14W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 930lm (3000K), 1000lm (4000K), 1030lm (5000K)
AIRFLOW: Up to 250m³/hr
DUCT SIZE: 100mm
MOUNTING: Recessed
INCLUDES: Separate fan and light power cords; side duct and draft stopper
FEATURES: Changeable colour temperature via switch on back of fascia
APPLICATIONS: Bathroom, toilet and kitchen
WARRANTY: 1 year (replacement)
