This bathroom heater fan is engineered as a compact 3-in-1 climate control solution combining space heating, mechanical ventilation and high-output LED illumination for residential bathroom environments. Finished in white with a durable polypropylene housing and aluminium fascia, the unit is designed with a sleek, low-profile form factor measuring 515mm in length to integrate cleanly into modern ceiling spaces. Operating on 220-240V AC at 50Hz and rated to IPX2, it is suitable for bathroom installation when correctly positioned and installed by a licensed electrician.
The heating system utilises a powerful 1000W R7s heat tube to deliver rapid and effective warmth, supported by built-in thermal overload protection to ensure safe and stable operation. This heating performance is complemented by a dedicated exhaust fan motor rated at 60W, providing an airflow capacity of up to 500m³/hr to efficiently remove steam, moisture and odours. With a noise level of ≤45dB, the fan operates quietly, maintaining comfort without intrusive acoustic disturbance.
Integrated lighting is provided by a fixed 20W LED system delivering a high luminous output of 2400lm, ensuring bright and uniform illumination across the space. The Tri-CCT functionality allows selection between 3000K warm white, 4000K cool white and 5000K daylight white, enabling precise control over ambience and visual clarity to suit different user preferences and bathroom applications. The LED system is designed for consistent performance and long service life, eliminating the need for globe replacement.
Designed for recessed ceiling installation, the unit requires a cutout size of 475mm x 325mm and a minimum ceiling depth of 220mm, with compatibility for 150mm ducting to support effective air extraction. Supplied accessories include a 1.5m duct, ducting clips, a heat tube and a 3-gang wall switch controller for straightforward operation of all functions. Classified as Class I electrical equipment and backed by a 2-year in-home warranty, this bathroom heater fan represents a reliable, high-performance solution for maintaining comfort, ventilation and illumination in contemporary bathrooms.
COLOUR: White
MATERIAL: Polypropylene (PP) housing, aluminium fascia
IP RATING: IPX2
VOLTAGE: 220-240V AC 50Hz

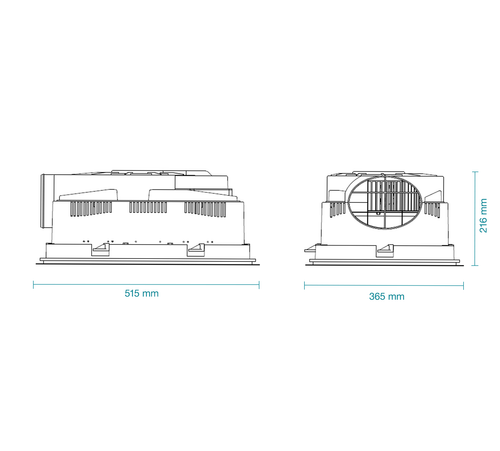

DIMENSIONS: 515mm (length) x 365mm (width) x 216mm (depth)
CUTOUT: 475mm x 325mm
WATTAGE: 60W (exhaust fan)
HEATING WATTAGE: 1000W (1 x R7s heat tube)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 2400lm
AIRFLOW: 500m³/hr
NOISE: ≤45dB
DUCTING SIZE: 150mm
MINIMUM CEILING DEPTH: 220mm
CAPABILITIES: Built-in thermal overload protection; back draft stopper included
FEATURES: Sleek and low-profile design; cut-out template included
INCLUDES: 1.5m duct, 2 x ducting clips, 1 x heat tube, 1 x 3-gang wall switch controller
ELECTRICAL CLASS: Class I
INSTALLATION: By licensed electrician only
WARRANTY: 2 years (In-home warranty)
