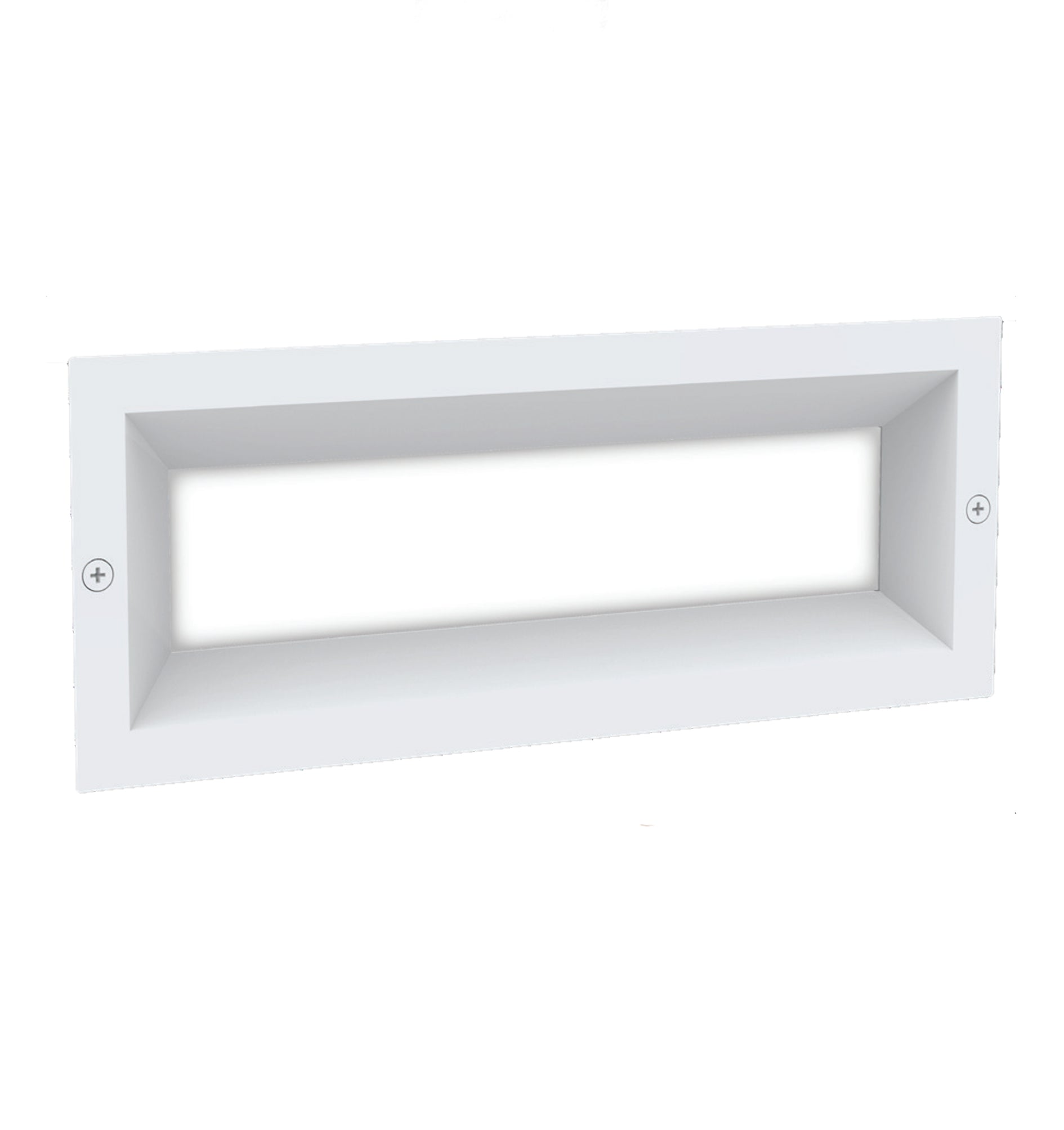

This step light is a high-performance exterior lighting solution engineered with a robust aluminium housing and heatsink for optimal thermal management. It features a durable polycarbonate diffuser and includes a polycarbonate sleeve for recessed mounting applications, ensuring a secure and professional installation. The integrated LED system utilizes 24 high-efficiency 2835 LED chips to deliver reliable illumination across a variety of outdoor environments.
Technical versatility is a core attribute of this fixture, which incorporates an internal CCT switch allowing users to select between 3000K warm white, 4000K cool white, and 6500K daylight white colour temperatures. Operating at a nominal wattage of 13W, the unit achieves a maximum luminous flux of 639lm and maintains a high colour rendering index of over 80. The wide 108-degree beam angle and frosted diffuser provide broad, even illumination for exterior steps and pathways.
Designed for longevity and resilience, the fitting carries an IP65 rating, signifying complete protection against dust ingress and low-pressure water jets from any direction. It is rated for a lifespan of 30,000 hours and operates efficiently within an ambient temperature range of -20 to 50 degrees Celsius. The electrical configuration supports a wide input voltage range of 100-240V AC and features a power factor greater than 0.8 for improved energy efficiency.
This recessed luminaire is compatible with advanced control systems, including two-way switching and integration with PIR or microwave sensors for automated operation. The physical dimensions are 250mm in width, 98mm in height and 90mm in depth, with a required cutout of 227mm by 76mm by 78mm for a flush finish. Backed by a three-year warranty, this lighting fixture represents a sophisticated and dependable choice for modern architectural and landscape lighting requirements.
PRODUCT TYPE: Step Light
WARRANTY: 3 years
COLOUR: White
MATERIAL: Aluminium (housing and heatsink); polycarbonate (diffuser and sleeve)
IP RATING: IP65 (fully weatherproof)
LUMENS: 587lm (for 3000K); 639lm (for 4000K); 584lm (for 6500K)
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 6500K (daylight white)
VOLTAGE: 100-240V AC (50/60Hz)
WATTAGE: 13W
DRIVER: Included
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No
DIMENSIONS: 250mm (width) x 98mm (height) x 90mm (depth)
CUTOUT: 227mm (width) x 76mm (height) x 78mm (depth)
MOUNTING: Recessed
LED CHIPS: 24 x 2835 LED chips
CRI: >80
BEAM ANGLE: 108°
LIFESPAN: 30,000 hours
OPERATION: Suitable for 2 way switching; suitable for use with PIR or microwave sensors
POWER FACTOR: >0.8
AMBIENT TEMP: -20 to 50°C
FEATURES: CCT switch inside the fitting; frosted diffuser; polycarbonate sleeve included
