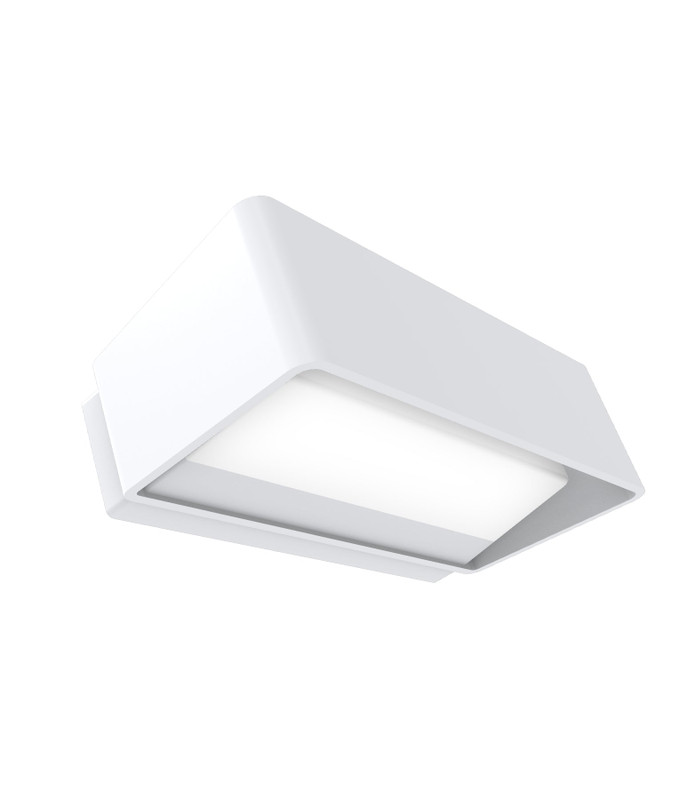

This LED up down light in white has been engineered to provide reliable illumination with precision and durability. Constructed from aluminium for the housing and heatsink with a robust polycarbonate diffuser and bracket, it ensures excellent thermal management and resistance to environmental factors. The compact form measures 248mm in width, 70mm in height, and projects 117mm, making it suitable for streamlined architectural applications where weather protection and high performance are critical.
With a power rating of 13W and an inbuilt constant current driver, this luminaire delivers stable, efficient output across a wide voltage range of 100-240V AC at 50/60Hz. It incorporates 24 SMD2835 LED chips and achieves luminous flux of 678lm at 3000K, 796lm at 4000K, and 776lm at 6500K. The Tri-CCT configuration allows selection between warm white, cool white, and daylight white, ensuring flexibility for different environments and aesthetic requirements. A high colour rendering index greater than 80 ensures natural colour reproduction.
The optical design incorporates a broad 304° beam angle, optimising coverage for exterior walls and façades. Rated to IP65, the light is fully weatherproof, performing reliably in ambient temperatures from -20°C to 50°C. It is not dimmable but supports two-way switching and is compatible with PIR or microwave sensors, expanding its functionality in automated or energy-conscious installations. The constant, flicker-free illumination is achieved with a power factor greater than 0.8, enhancing energy efficiency and operational reliability.
This surface-mounted fitting is designed for long service life, with an expected operational lifespan of 30,000 hours. It is supplied with an integrated driver, simplifying installation while maintaining consistent performance. For compliance and safety, installation must be carried out by a licenced electrician. With a three-year replacement warranty, this LED up down light represents a durable, high-quality solution for modern exterior lighting requirements.
COLOUR: White
MATERIAL: Aluminium (housing and heatsink), polycarbonate (diffuser and bracket)

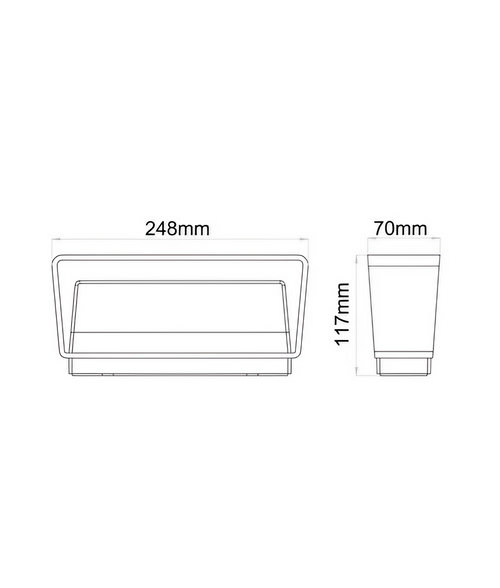

DIMENSIONS: 70mm (height) x 248mm (width) x 117mm (projection)
IP RATING: IP65 (fully weatherproof)
VOLTAGE: 100-240V AC 50/60Hz
WATTAGE: 13W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6500K (daylight white)
LUMENS: 678lm (3000K), 796lm (4000K), 776lm (6500K)
CRI: >80
BEAM ANGLE: 304°
POWER FACTOR: >0.8
AMBIENT TEMP: -20°C to 50°C
DIMMABLE: No
LED CHIPS: 24pcs SMD2835
LIFE SPAN: 30,000 hours
DRIVER: Yes (Inbuilt constant current driver)
MOUNTING: Surface mounted
OPERATION: Suitable for 2-way switching; suitable for use with PIR or microwave sensors
INSTALLATION: Must be installed by a licenced electrician
WARRANTY: 3 years (replacement)
