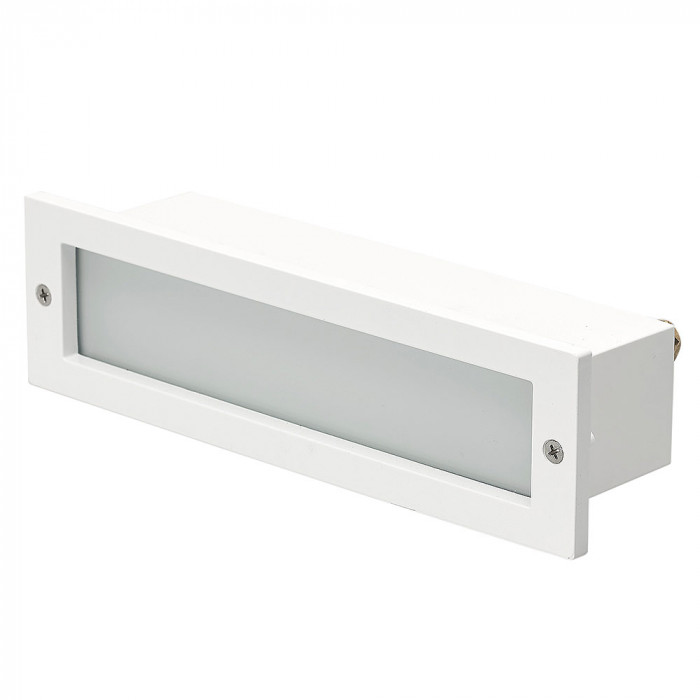

This step light is engineered with a robust die-cast aluminium housing and a frosted glass lens to provide a durable and high-performance illumination solution for demanding environments. Featuring an IP66 ingress protection rating, the luminaire is fully weatherproof and designed to withstand significant exposure to moisture and dust while maintaining operational integrity. The recessed mounting configuration and IC-F rating ensure a seamless integration into various architectural surfaces, facilitating a clean aesthetic for both indoor and outdoor applications.
Technical performance is driven by an integrated 3.6W LED system that delivers a luminous flux of 324lm with a warm white colour temperature of 3000K. The optical system utilizes a 120-degree beam angle to ensure broad and uniform light distribution, which is essential for enhancing safety and visibility along stairs, pathways, and walkways. Operating on a standard 220V-240V mains supply, the unit includes an integral driver and comes pre-wired with a 500mm cable to streamline the installation process for electrical contractors.
The physical dimensions of 252mm in width and 70mm in height allow for versatile orientation, as the fixture can be mounted either horizontally or vertically depending on the specific lighting requirements of the site. Its construction is specifically designed to prevent air and moisture transfer, ensuring long-term reliability and consistent performance in diverse climatic conditions. The inclusion of high-quality materials such as die-cast aluminium ensures superior thermal management and structural longevity, making it a reliable choice for residential or light commercial projects.
This professional-grade lighting fixture is backed by a one-year warranty, reflecting its status as a high-quality component within a comprehensive lighting design. For specialized installation requirements, an optional mounting box is available to facilitate secure placement in various substrate types. By combining energy-efficient LED technology with a rugged architectural design, this step light provides a safe and clear walking environment while contributing to the overall visual appeal and functionality of modern infrastructure.
PRODUCT TYPE: Step Light
APPLICATIONS: Ideal for lighting stairs, pathways and walkways to provide a clear and safe walking environment indoor or out
WARRANTY: 1 year
COLOUR: White
MATERIAL: Die-cast aluminium (fitting); frosted glass (lens)
IP RATING: IP66 (fully weatherproof)
LUMENS: 324lm
COLOUR TEMP: 3000K (warm white)
VOLTAGE: 220V-240V
WATTAGE: 3.6W
DRIVER: Included (integral)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No
DIMENSIONS: 252mm (width) x 70mm (height) x 76mm (depth)
MOUNTING: Recessed
INSTALLATION: Wire direct to mains power supply; comes pre-wired with 500mm length cable

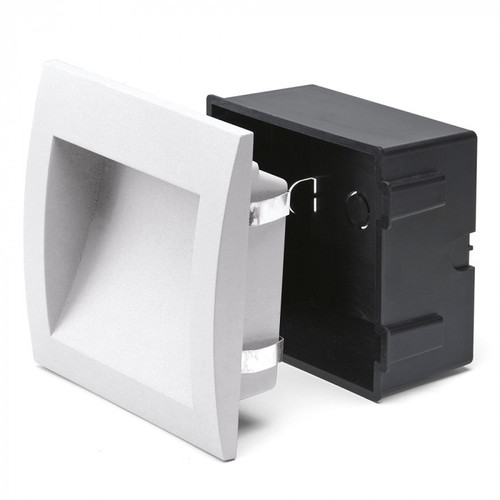

ACCESSORIES: Optional mounting box available (sold separately)
FEATURES: Can be mounted horizontally or vertically
REMARKS: Closed air / moisture transfer: closed; IC-F rated
