This step light is a sophisticated recessed lighting solution engineered for both interior and exterior architectural applications. Constructed from high-quality die-cast aluminium with a white finish, the fixture provides a durable and aesthetically pleasing housing for its integrated Epistar LED technology. The unit is designed to deliver a precise 45-degree beam angle, ensuring effective illumination for pathways, staircases, and wall surfaces while maintaining a low-profile presence.
Technical performance is characterized by a 3W power consumption that generates a luminous flux of 290lm at a warm white colour temperature of 3000K. The inclusion of a high colour rendering index of 80 ensures that illuminated surfaces appear natural and vibrant. Operating within a standard voltage range of 220V-240V, this LED fitting offers an energy-efficient alternative to traditional step lighting without compromising on light quality or reliability.

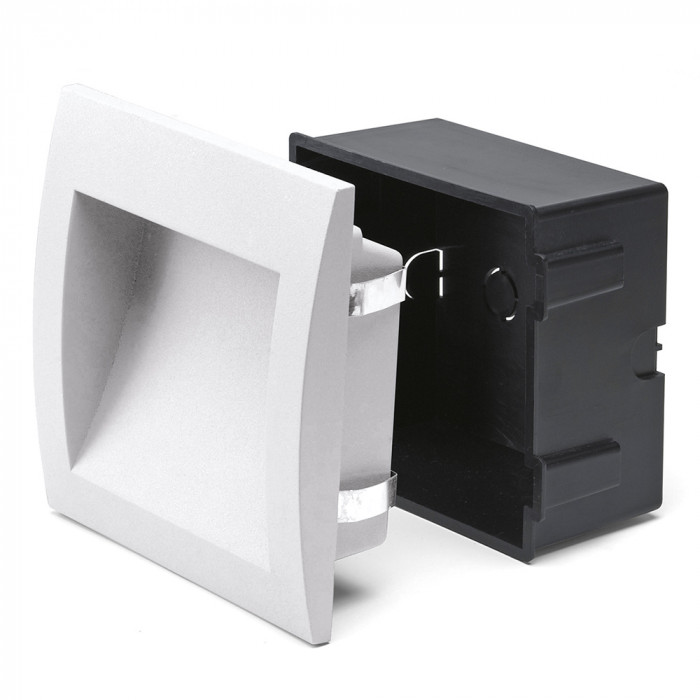

Engineered to withstand challenging environmental conditions, the fixture carries an IP65 rating, signifying complete protection against dust ingress and low-pressure water jets from any direction. The closed air and moisture transfer design further enhances its longevity in outdoor settings. For versatile installation, the product is supplied with a dedicated mounting niche for exterior masonry and additional clips for direct mounting into interior wall linings, accommodating various substrate requirements.
The physical dimensions of 140mm by 140mm with a shallow 34mm depth allow for seamless integration into modern architectural designs. Installation requires a 125mm wide × 115mm high hole for the plastic niche or a 116mm square hole for direct wall lining mounting, with a minimum cavity depth of 60mm. Backed by a one-year warranty, this lighting component represents a robust and versatile choice for enhancing safety and ambiance in residential or commercial environments.
PRODUCT TYPE: Step Light
APPLICATIONS: Indoor and outdoor; interior walls
WARRANTY: 1 year
COLOUR: White
MATERIAL: Die-cast aluminium
IP RATING: IP65 (fully weatherproof)
LUMENS: 290lm
COLOUR TEMP: 3000K (warm white)
VOLTAGE: 220V-240V
WATTAGE: 3W
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMENSIONS: 140mm (width) × 140mm (height) x 34mm (depth)
CUTOUT: 125mm × 115mm (plastic niche); 116mm × 116mm (direct wall lining)
RECESS DEPTH: 60mm
MOUNTING: Recessed
CRI: 80
INSTALLATION: Extra clips supplied for direct mounting into interior walls; supplied with mounting niche for exterior installation
FEATURES: Epistar LED technology; air / moisture transfer: closed
