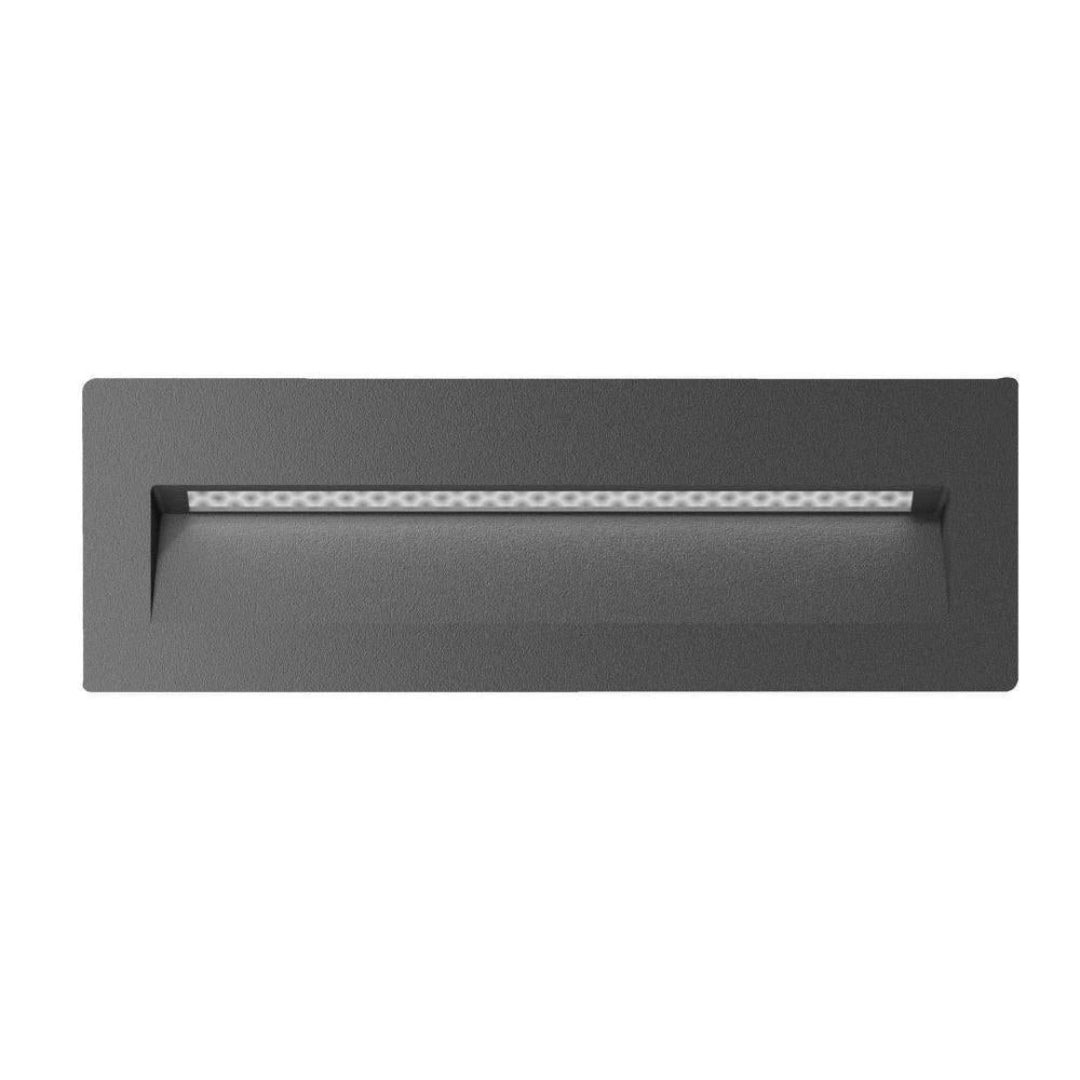

This step light is a high-performance architectural luminaire engineered for recessed installation in demanding outdoor environments. Constructed from premium powder-coated cast aluminium, the fixture features a robust rectangular fascia designed to withstand the elements while providing a sophisticated aesthetic. The integrated SMD LED technology delivers a precise 350-lumen output with a 30-degree beam angle, ensuring focused and efficient illumination for safety and ambiance.
Technical excellence is at the core of this dark grey luminaire, which boasts an IP65 ingress protection rating for complete weatherproofing against dust and water. Operating on a 12V DC constant voltage system, the 8W unit requires a compatible LED driver for optimal performance and longevity. The built-in LED chips provide a daylight white 5000K colour temperature with a colour rendering index of 80 or higher, ensuring accurate colour representation and visual comfort in various applications.
Designed for versatility and durability, this step light is ideal for illuminating pathways, external walls, planter boxes, and front wall installations. The recessed mounting system is compatible with multiple cutout dimensions, measuring 210mm by 60mm without a recessed box or 220mm by 70mm when utilizing the optional housing. With a rated lifespan of 50,000 hours and a three-year warranty, this fixture represents a reliable long-term solution for residential and light commercial landscaping projects.
The optical system is specifically configured to produce soft downward illumination, minimizing glare while maximizing visibility on horizontal surfaces. Wiring in parallel allows for streamlined installation across multiple units, making it an efficient choice for extensive perimeter or walkway lighting schemes. This professional-grade lighting component combines structural integrity with advanced thermal management to maintain consistent light output and operational stability throughout its service life.
PRODUCT TYPE: Step Light
APPLICATIONS: Pathways; external walls; planter boxes; front wall installations
WARRANTY: 3 years
COLOUR: Dark Grey (powder-coated finish)
MATERIAL: Powder-coated cast aluminium (body)
IP RATING: IP65 (fully weatherproof)
LUMENS: 350lm
COLOUR TEMP: 5000K (daylight white)
VOLTAGE: 12V DC
WATTAGE: 8W
DRIVER: Requires 12V DC constant voltage LED driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No

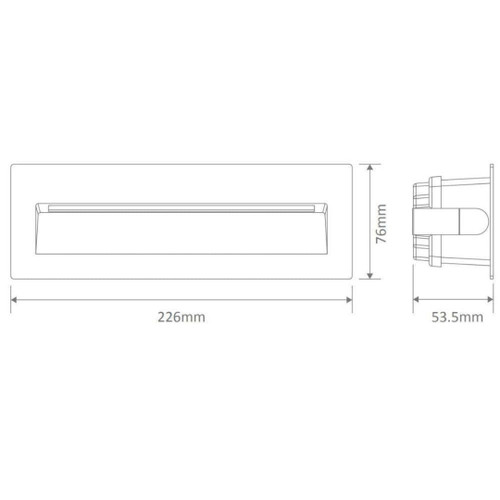

DIMENSIONS: 226mm (length) x 76mm (height) x 53.5mm (depth)
CUTOUT: 210mm (length) x 60mm (height) without recessed box; 220mm (length) x 70mm (height) with recessed box
MOUNTING: Recessed
CRI: ≥80
BEAM ANGLE: 30°
LIFESPAN: 50,000 hours
PHOTOMETRIC DATA: Available upon request
FEATURES: Rectangular fascia; SMD LED; wire in parallel; soft downward illumination
