This step light is a sophisticated lighting solution engineered for precision illumination in demanding outdoor environments such as pathways, steps, and planter boxes. Constructed with a robust cast aluminium body and a chromate-treated aluminium trim, the fixture features a dark grey polyester powder-coated finish that ensures long-term durability and resistance to corrosion. The rectangular slimline design allows for a seamless surface-mounted installation on external walls or front wall structures, providing a modern aesthetic while maintaining a low profile.
Technically advanced SMD LED technology is integrated into the unit, delivering a concentrated output of 550 lumens with a daylight white colour temperature of 5000K. The optical system is designed for downward illumination, effectively reducing glare and enhancing safety by focusing light exactly where it is required for navigation. With a high colour rendering index of ≥80, the light ensures accurate colour representation of the surrounding landscape and architectural features during nocturnal hours.
Operating on a 12V DC constant voltage system, this 8W fixture is designed for energy efficiency and safe low-voltage operation, requiring a compatible LED driver for installation. The electrical configuration supports parallel wiring, facilitated by an integrated cable gland to maintain the integrity of the internal components. This system is engineered for longevity, boasting an impressive operational lifespan of 50,000 hours, which significantly reduces the necessity for frequent maintenance or replacement in residential and light commercial applications.
The unit is rated at IP65, signifying a fully weatherproof construction that is protected against dust ingress and low-pressure water jets from any direction. Measuring 200mm in length, 80mm in height, and 32mm in depth, the compact dimensions make it an ideal choice for discrete yet powerful lighting. Backed by a 3-year warranty, this high-quality lighting instrument provides a reliable and high-performance solution for enhancing the safety and visual appeal of any outdoor architectural space.
PRODUCT TYPE: Step Light
APPLICATIONS: Pathways; steps; external walls; planter boxes; front wall installations
WARRANTY: 3 years
COLOUR: Dark Grey (polyester powder-coated finish)
MATERIAL: Cast aluminium (body); aluminium (trim)
IP RATING: IP65 (fully weatherproof)
LUMENS: 550lm
COLOUR TEMP: 5000K (daylight white)
VOLTAGE: 12V DC
WATTAGE: 8W
DRIVER: Requires 12V DC constant voltage LED driver (not included)
GLOBE: LED
GLOBE INCLUDED: Yes (built-in)
DIMMABLE: No

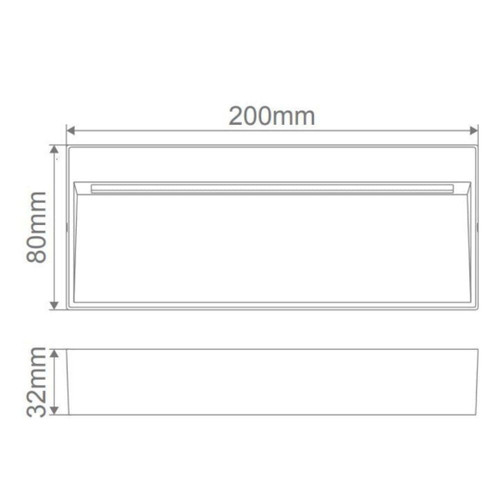

DIMENSIONS: 200mm (length) x 80mm (height) x 32mm (depth)
MOUNTING: Surface mounted
CRI: ≥80
LIFESPAN: 50,000 hours
FEATURES: Rectangular slimline design; SMD LED; cable gland; chromate-treated aluminium trim; downward illumination; wire in parallel
