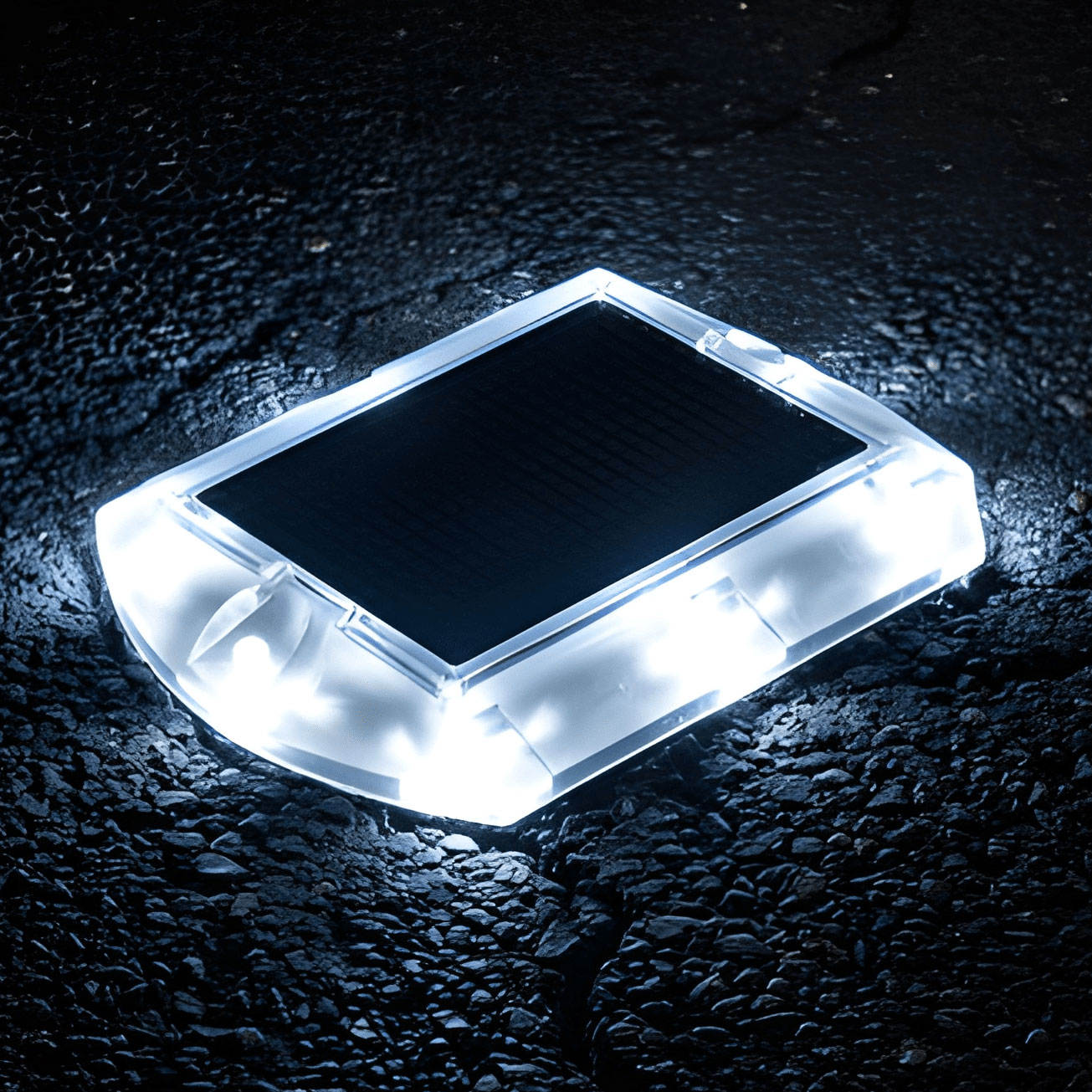

This commercial grade solar road stud is engineered for high-performance roadway delineation and hazard marking in demanding outdoor environments. Emitting a high-intensity white LED output rated at 9000-10000mcd, the unit provides clear visual guidance with a visible distance of up to 800m, supporting improved safety in low-light and night-time conditions. The integrated optical system is designed for stable luminous performance, and the LED colour can be replaced with alternative colour options where required for specific signalling applications.
Constructed from Japanese bullet-proof polycarbonate (PC), the housing delivers exceptional mechanical strength and impact resistance while maintaining a slim 11mm low-profile design to minimise surface protrusion. Measuring 114mm in length and 90mm in width, each unit weighs 115g and is engineered to withstand static loads of up to 15 tonnes, making it suitable for driveways, roads and other vehicular traffic areas. The IP68 rating confirms full protection against dust ingress and water immersion, ensuring reliable operation in harsh outdoor and wet environments, including swimming pools up to a maximum depth of 2 metres.
The integrated USA brand high-efficiency 5.5V 80mAH solar panel charges a 3.2V 500mAH LiPo battery, achieving a full charge within approximately 8 hours under standard sunlight conditions. Once fully charged, the system delivers up to 55 hours of autonomous operation, providing extended multi-night performance without external wiring or mains power. This self-contained solar configuration enables energy-efficient operation while reducing installation complexity and long-term maintenance requirements.
Designed for surface-mounted installation, the unit can be secured to concrete, masonry or structural substrates. When installing on timber surfaces, a metal plate measuring at least 130mm x 130mm must be positioned behind the fitting to facilitate adequate heat dissipation and maintain long-term reliability. Supplied as 2 solar road studs per set, this solution offers a durable and technically robust lighting system backed by a 1 year warranty including the battery, making it a dependable choice for commercial, infrastructure and safety-focused applications.
LED COLOUR: White
MATERIAL: Japanese bullet-proof polycarbonate (PC)
IP RATING: IP68 (waterproof, can be immersed in water)
DIMENSIONS: 114mm (length) x 90mm (width) x 11mm (height)
WEIGHT: 115g
LUMINOUS INTENSITY: 9000-10000mcd
SOLAR PANEL: USA brand high-efficient solar panel 5.5V / 80mAH
BATTERY: LiPo 3.2V / 500mAH
CHARGING TIME: 8 hours under standard sunlight
AUTONOMY: Up to 55 hours
LOAD CAPACITY: Up to 15 tonnes
VISIBLE DISTANCE: Up to 800m
INCLUDES: 2 x Solar road studs
APPLICATIONS: Pathways, driveways, roads, steps, swimming pools (maximum depth 2m)
INSTALLATION: Surface mounted; if installing on timber, a metal plate of at least 130mm x 130mm must be installed behind the unit to aid heat dissipation
CLOUDY DAYS: Designed to charge even on cloudy days
WARRANTY: 1 year (battery included)
