This commercial grade solar road stud is engineered to provide high-visibility guidance and delineation in demanding outdoor environments where durability and consistent performance are essential. Emitting a orange LED output with a luminous intensity of 5000mcd, the unit delivers clear visual signalling with a visible distance of up to 1000m under optimal conditions. The integrated USA brand high-efficient solar panel rated at 2.5V 0.25W works in conjunction with a 1.2V 600mAH NI-MH rechargeable battery to ensure reliable energy harvesting and storage for autonomous night-time operation.
Constructed from Japanese bullet-proof polycarbonate (PC), the housing offers exceptional mechanical strength and impact resistance, supporting up to 20 tonnes of maximum dynamic pressure and 2.5 tonnes of maximum static pressure. The IP68 rating confirms full protection against dust ingress and suitability for immersion in water, including applications such as swimming pools to a maximum depth of 2m. With compact dimensions of 120mm diameter and 25mm height and a weight of 0.32kg per unit, the stud is designed for robust performance without compromising installation practicality.
Under standard sunlight conditions, the system achieves a full recharge in approximately 8 hours and provides up to 30 hours of continuous illumination, ensuring dependable operation through extended periods of darkness. The advanced solar charging system is specifically designed to charge even on cloudy days, enhancing reliability in variable weather conditions. This autonomous functionality eliminates the need for external wiring, reducing infrastructure costs while maintaining consistent safety performance.
Supplied as a pack of 2 solar road studs, the product is suitable for pathways, driveways, roads, steps, and similar traffic management environments requiring durable, weatherproof marking solutions. The fitting is surface mounted, and when installing on timber substrates, a metal plate of at least 130mm x 130mm must be positioned behind the unit to facilitate effective heat dissipation. Backed by a 1 year warranty including the battery, this commercial grade solar road stud provides a robust, long-lasting solution for high-load and high-exposure installations.
LED COLOUR: Orange
MATERIAL: Japanese bullet-proof polycarbonate (PC)
IP RATING: IP68 (waterproof, can be immersed in water)

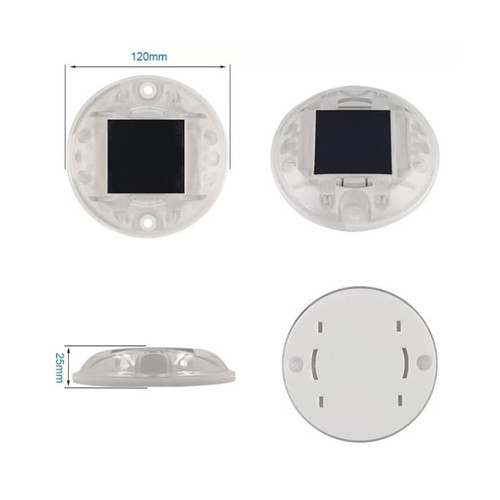

DIMENSIONS: 120mm (diameter) x 25mm
WEIGHT: 0.32kg
LUMINOUS INTENSITY: 5000mcd
SOLAR PANEL: USA brand high-efficient solar panel 2.5V 0.25W
BATTERY: NI-MH 1.2V 600mAH
CHARGING TIME: 8 hours under standard sunlight
AUTONOMY: Up to 30 hours
LOAD CAPACITY: Up to 20 tonnes (max dynamic pressure), Up to 2.5 tonnes (max static pressure)
VISIBLE DISTANCE: Up to 1000m
INCLUDES: 2 x Solar road studs
CLOUDY DAYS: Designed to charge even on cloudy days

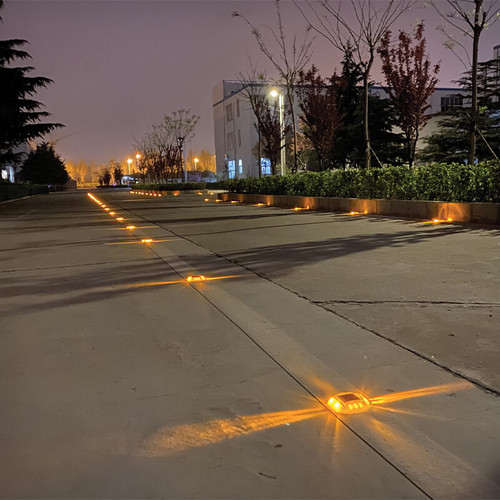

APPLICATIONS: Pathways, driveways, roads, steps, swimming pools (maximum depth 2m)
INSTALLATION: Surface mounted; if installing on timber, a metal plate of at least 130mm x 130mm must be installed behind the unit to aid heat dissipation
WARRANTY: 1 year (battery included)
