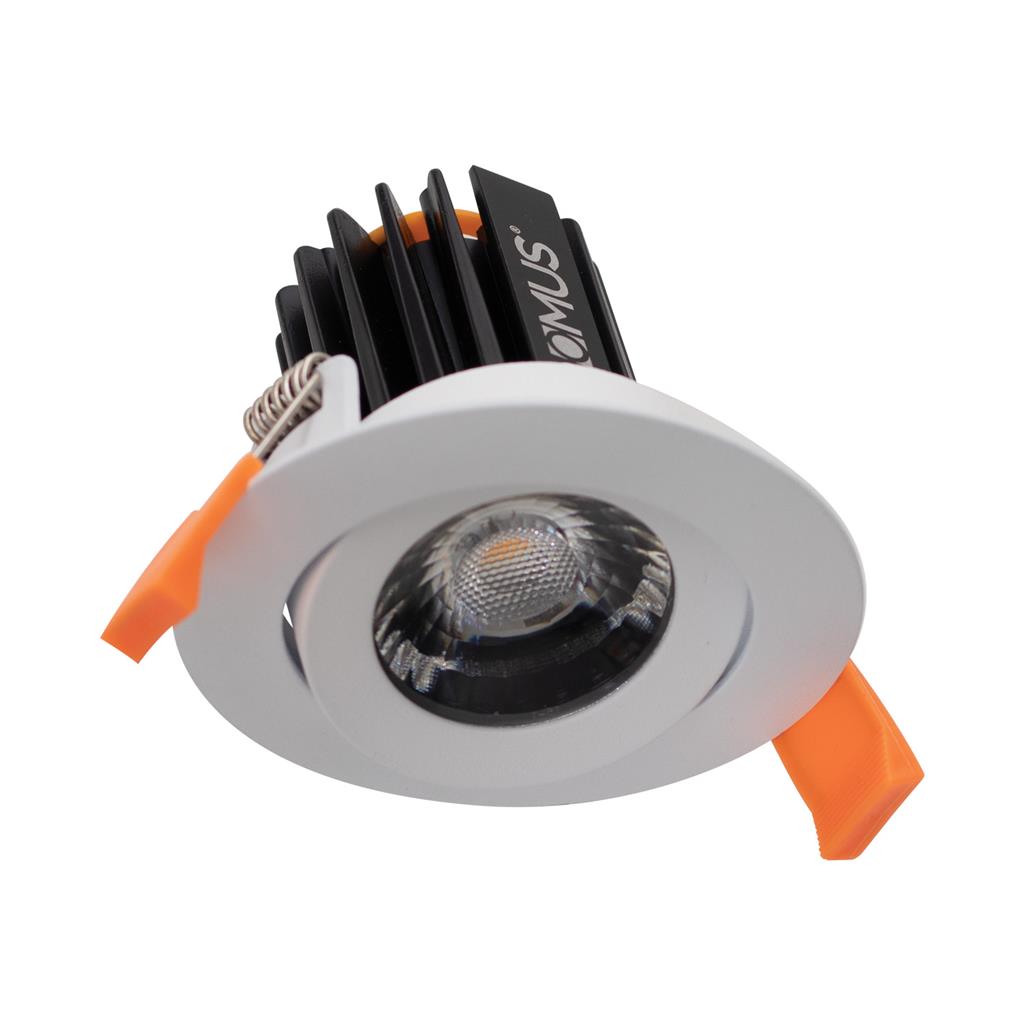

This commercial grade downlight offers a compact and efficient solution for both residential and commercial lighting applications. Designed with a recessed mounting profile and a minimalist white finish, it delivers a clean integration into ceilings while maintaining a professional aesthetic. The fixture incorporates a fixed LED module housed within a 90mm diameter frame and a total depth of 71mm, making it suitable for installations requiring minimal cavity space. Its IC-4 rating and IP44 protection from the underside ensure safe operation in indoor settings where moisture resistance is essential.
Engineered for precision and flexibility, this downlight includes an adjustable gimbal mechanism, enabling directional control of the light beam. The integrated COB LED provides consistent illumination across a 60° beam angle, ideal for focused or accent lighting. A key feature is its selectable CCT function, offering five switchable colour temperatures—ranging from 2700K (warm white) to 5700K (daylight white)—via a DIP switch on the driver. This adjustability allows the luminaire to meet varied ambient lighting requirements without needing different lamp models.
Performance is optimised through a high-lumen output, peaking at 1163lm in the 5000K setting, with minimal variation across the available colour temperatures. The luminaire supports full dimmability and maintains a Colour Rendering Index (CRI) of ≥80, ensuring accurate colour reproduction in all settings. The COB LED technology is rated for a lifespan of 50,000 hours, providing long-term reliability and reduced maintenance requirements. Its compatibility with MR16-style downlight frames and click-in systems enhances retrofit suitability for existing installations.
The unit includes a dimmable LED driver and a pre-fitted flex and plug assembly, streamlining the installation process. The fitting supports cutouts ranging from 71mm to 75mm in diameter, accommodating a wide array of ceiling configurations. With its robust design, adaptable colour output, and ease of installation, this downlight delivers a versatile and technically advanced lighting solution. It is backed by a three-year replacement warranty, ensuring operational confidence in both new constructions and retrofit projects.
COLOUR: White
IP RATING: IP44 (weather-resistant)
IC RATING: IC-4 (suitable for abutted and covered insulation)
DIMENSIONS: 90mm (diameter) x 71mm (depth)
WATTAGE: 13W (max)
VOLTAGE: 200–240V 50–60Hz
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: Switchable between 2700K (warm white), 3000K (warm white), 4000K (cool white), 5000K (daylight white), 5700K (daylight white)
LUMENS: 1002lm (2700K), 995lm (3000K), 1098lm (4000K), 1163lm (5000K), 1145lm (5700K)
DIMMABLE: Yes
CRI: ≥80
BEAM ANGLE: 60°
LIFE SPAN: 50,000 hours
LED TYPE: COB
CUTOUT: 71mm–75mm (diameter)
MOUNTING: Recessed
INCLUDES: Dimmable LED driver and flex and plug
INSTALLATION: Plug and play module and driver; suits most MR16 downlight frames; also compatible with click-in frames
CAPABILITIES: Adjustable gimbal (tiltable light head for directional control); colour temperature selectable via DIP switch on driver
WARRANTY: 3 years (replacement)
