This mini LED downlight is a refined architectural lighting solution engineered for compact recessed installations. With a discreet 40mm diameter and 35.5mm overall height, it is purpose-built for environments requiring subtle yet high-performance illumination. Its 35mm cutout and IC-4 rating allow safe integration in insulated ceiling spaces, making it ideal for cabinetry, wall niches, and display areas where visual impact must be controlled without compromising output or safety.
Equipped with an energy-efficient 3W COB LED chipset and a precision-matched 24° optical lens, this fitting delivers high-intensity directional lighting with exceptional clarity. The integrated dip switch allows end users to select from three colour temperature settings-3000K (warm white), 4000K (cool white), and 5700K (daylight white)-enabling precise visual tuning to match surrounding surfaces or application needs. The luminaire delivers 180 lumens at 3000K and up to 210 lumens at both 4000K and 5700K, supported by a high colour rendering index of ≥90 to ensure accurate colour reproduction.
Constructed in a white powder-coated aluminium housing, the downlight combines visual neutrality with durability. It is fully dimmable when used with compatible trailing-edge dimmers, supporting adaptable lighting schemes in residential and commercial spaces alike. Despite its miniature scale, the unit maintains impressive performance longevity with a rated operational life of 50,000 hours, ensuring long-term reliability and low maintenance in continuous-use environments.
Designed for tool-free connection and installation, the fixture includes a micro-sized LED driver with a flex and plug for ease of deployment. With no DALI compatibility, this model is optimised for standard dimming applications rather than centralised automation systems. Backed by a 3-year replacement warranty, this mini LED downlight is a dependable and efficient lighting solution where compact design, tunable light output, and architectural discretion are paramount.
COLOUR: White

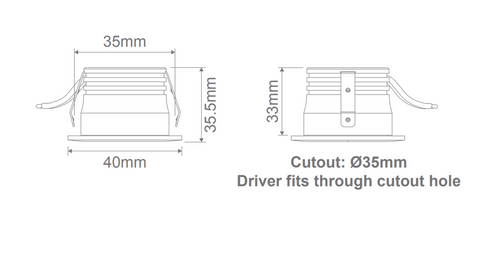

DIMENSIONS: 40mm (diameter) x 35.5mm (height)
CUTOUT: 35mm
IP RATING: IP40
IC RATING: IC-4 (suitable for abutted and covered insulation)
GLOBE: LED (includes fixed LED chips in fitting)
LED TYPE: COB
WATTAGE: 3W
VOLTAGE: 240V AC
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 180lm (3000K), 210lm (4000K), 210lm (5700K)
CRI: ≥90
BEAM ANGLE: 24°
DIMMABLE: Yes
DALI: No
LIFE SPAN: 50,000 hours
MOUNTING: Recessed
INCLUDES: Micro-sized LED driver and flex and plug
APPLICATIONS: Cabinet lighting, display lighting, wall washing, discreet highlighting
WARRANTY: 3 years (replacement)
