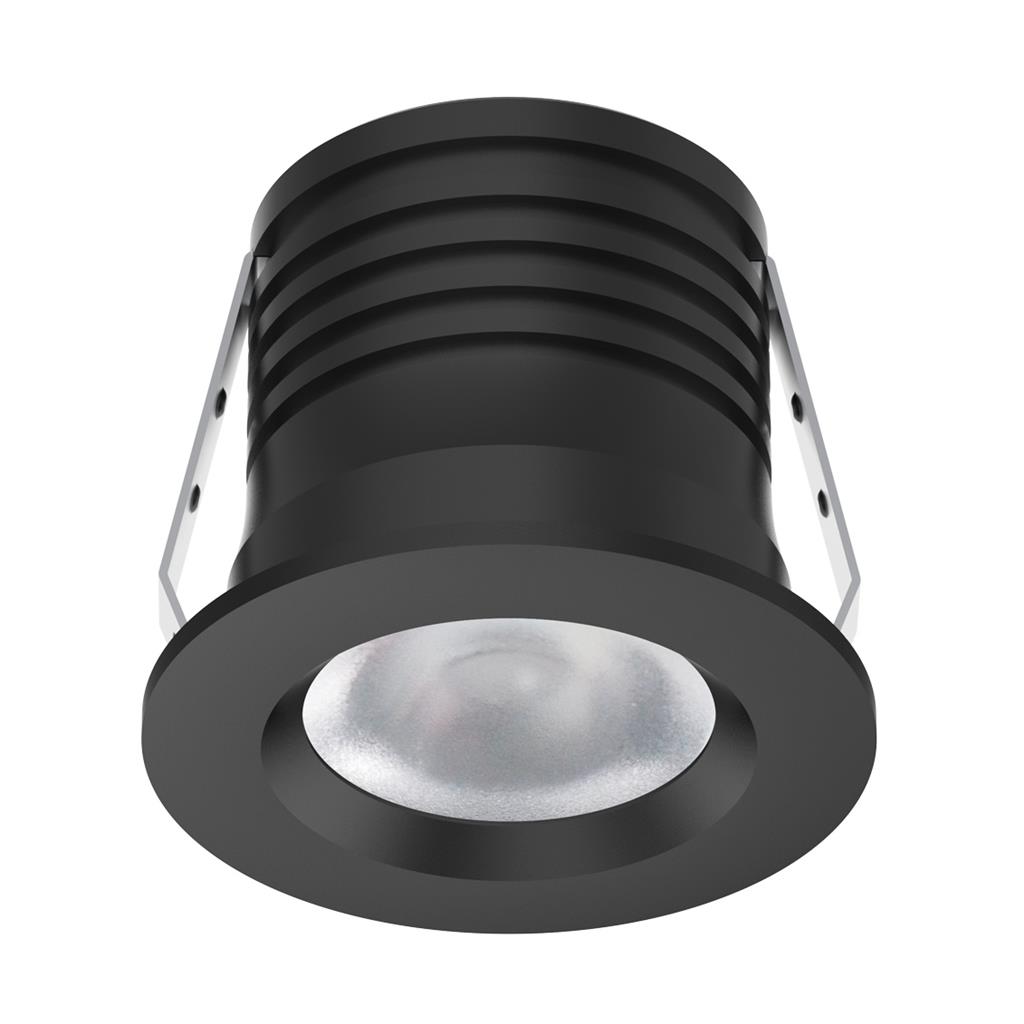

This mini LED downlight is a compact, high-performance luminaire engineered for discreet architectural applications. Finished in a black powder-coated aluminium housing, it blends seamlessly into dark ceilings while maintaining a minimalist 40mm diameter and a shallow 35.5mm recess depth. A precise 35mm cutout and IC-4 compliance allow safe installation in thermally insulated cavities, making the fitting ideal for cabinetry, display cases and accent niches where space is at a premium.
At its core is a high-efficiency COB LED chipset coupled with a 24° optical lens diffuser, delivering sharply defined illumination. A rear-mounted dip switch enables instant selection of 3000K (warm white), 4000K (cool white) or 5700K (daylight white) output, ensuring flexible adaptation to ambient or task-oriented lighting schemes. Despite its miniature footprint, the downlight outputs up to 210 lumens at 4000K and 5700K, with 180 lumens at 3000K, all rendered with a colour-rendering index of ≥90 for faithful presentation of textures and hues.
The fixture incorporates DALI-compatible electronics, supporting advanced dimming and integration into networked control architectures while consuming just 3W at 240V AC. Fully dimmable with suitable controllers, it provides fine-grained brightness modulation without compromising optical consistency. A projected service life of 50,000 hours minimises maintenance cycles, enhancing suitability for both commercial and residential deployments.
Supplied complete with a micro-sized LED driver and pre-terminated flex-and-plug, installation is straightforward and tool-efficient. Owing to the absorptive properties of the black finish, this model registers approximately ten percent lower luminous flux than its white counterpart-an acknowledged trade-off that favours subtlety over absolute brightness. Backed by a three-year replacement warranty, this fixed-frame mini LED downlight delivers reliable, architecturally refined illumination wherever precision accent lighting is required.
COLOUR: Black
DIMENSIONS: 40mm (diameter) x 35.5mm (height)
CUTOUT: 35mm
IP RATING: IP40
IC RATING: IC-4 (suitable for abutted and covered insulation)
GLOBE: LED (includes fixed LED chips in fitting)
LED TYPE: COB
WATTAGE: 3W
VOLTAGE: 240V AC
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5700K (daylight white)
LUMENS: 180lm (3000K), 210lm (4000K), 210lm (5700K)
CRI: ≥90
BEAM ANGLE: 24°
DIMMABLE: Yes
DALI: Yes
LIFE SPAN: 50,000 hours
MOUNTING: Recessed
INCLUDES: Micro-sized LED driver and flex and plug
APPLICATIONS: Cabinet lighting, display lighting, wall washing, discreet highlighting
IMPORTANT: DALI driver may not fit into cutout hole and may need to be installed by other means
NOTES: Black model is 10% lower in lumen output declared
WARRANTY: 3 years (replacement)
