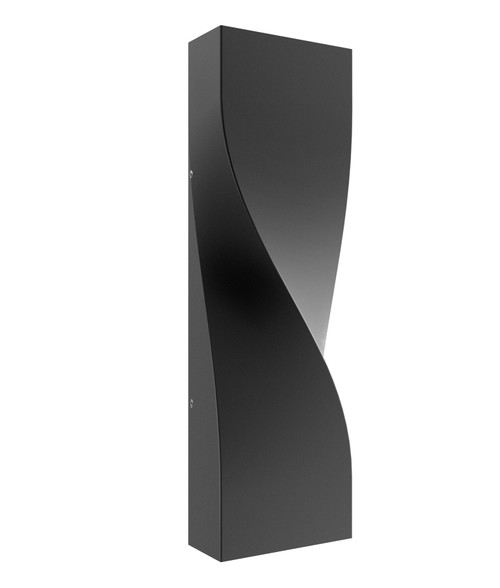

This LED up down light in dark grey is engineered to deliver reliable illumination with advanced performance characteristics. Designed with a robust aluminium housing and heatsink, complemented by a clear acrylic diffuser and aluminium back plate, it ensures both durability and effective light distribution. Its compact dimensions of 400mm in height, 125mm in width, and 60mm projection allow it to integrate seamlessly into a wide range of architectural settings, while the modern dark grey finish offers a refined and contemporary appearance.
Equipped with integrated 8pcs 5050 LED chips, this luminaire produces lumen outputs of 1094lm at 3000K, 1242lm at 4000K, and 1135lm at 6500K. The Tri-CCT function with an internal switch allows effortless selection between warm white, cool white, and daylight white, enabling customisation of ambience according to the application. The high colour rendering index of >80 ensures faithful colour reproduction, while the 20W power consumption is optimised through an inbuilt constant current driver, delivering stable performance with a power factor of 0.9.
Engineered with a beam angle of 85° as standard, or a narrower 65° when using the included stickers, this fitting offers versatile light control to suit precise requirements. It is surface mounted for secure installation and is suitable for both two-way switching and operation with PIR or microwave sensors, providing adaptability for residential and commercial environments. With an IP65 rating, it is fully weatherproof and capable of withstanding harsh outdoor conditions, supported by an operational temperature range of -20°C to 40°C.
This LED up down light offers a long service life of 30,000 hours and is designed for consistent, maintenance-free operation. It is not dimmable, ensuring constant output, and must be installed by a licensed electrician to comply with safety standards. The product is backed by a 3-year replacement warranty, affirming its reliability and quality. This combination of technical precision, efficiency, and resilience makes it a dependable solution for enhancing exterior architectural lighting schemes.
COLOUR: Dark Grey
MATERIAL: Aluminium (housing and heatsink), clear acrylic (diffuser), aluminium (back plate)
DIMENSIONS: 400mm (height) x 125mm (width) x 60mm (projection)
IP RATING: IP65 (fully weatherproof)
VOLTAGE: 100-240V AC 50/60Hz
WATTAGE: 20W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6500K (daylight white)
LUMENS: 1094lm (3000K), 1242lm (4000K), 1135lm (6500K)
CRI: >80
BEAM ANGLE: 85° (without stickers), 65° (with beam narrowing stickers)
POWER FACTOR: 0.9
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: No
LED CHIPS: 8pcs 5050
LIFE SPAN: 30,000 hours
DRIVER: Yes (Inbuilt constant current driver)
MOUNTING: Surface mounted
OPERATION: Suitable for 2-way switching; suitable for use with PIR or microwave sensors
INSTALLATION: Must be installed by a licenced electrician
WARRANTY: 3 years (replacement)
