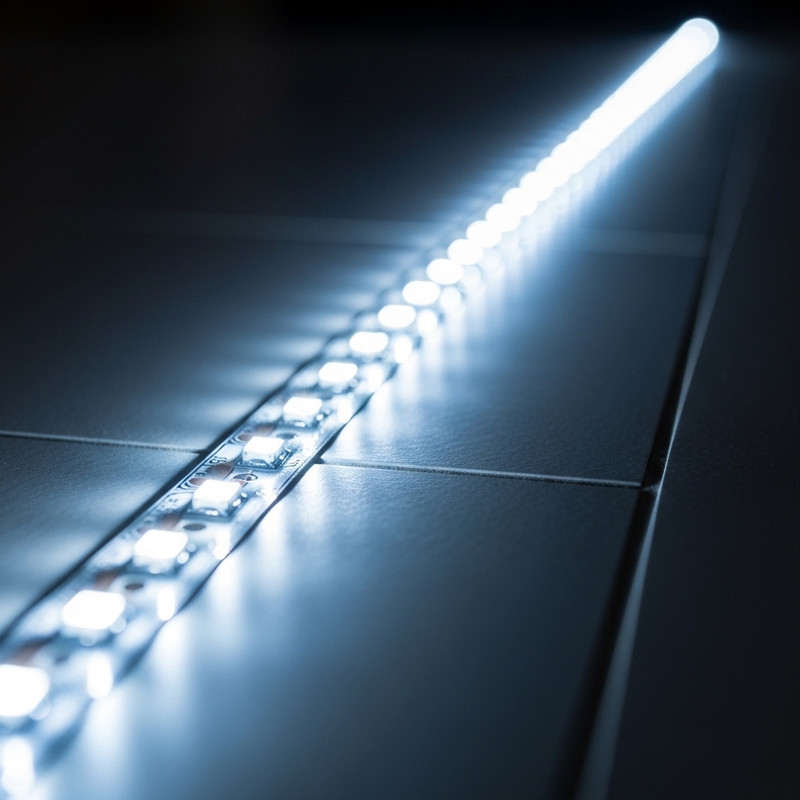

This LED strip light is supplied in a continuous 5m length, designed for high-brightness linear illumination with a seamless, dotless appearance. Operating on 24V DC, it offers efficient power distribution and reduced heat generation. Featuring COB technology with 640 LEDs per metre, the strip produces smooth light output without visible spotting. At 20W per metre, it delivers 2000lm in neutral white 4000K, providing balanced brightness ideal for task areas and general illumination.
The 180° beam angle ensures uniform coverage, while a CRI of ≥90 delivers excellent colour rendering for enhanced visibility. Fully dimmable with appropriate drivers, it allows precise brightness adjustment for both ambient and focused lighting needs. The strip’s 25mm cutting increments enable versatile installation, supporting custom layouts for diverse project applications.
Engineered for long-term use, this strip is rated for 50,000 hours of service life. It supports continuous runs up to 3m when powered from one end or up to 6m with two-end feeding, making it adaptable to different installation requirements. It is designed to operate in ambient temperatures from -20°C to 50°C and can be stored between -30°C and 80°C. Photometric data is available upon request for detailed design purposes.
Rated IP54, this strip is weather-resistant and suitable for use in indoor wet areas such as kitchens and bathrooms. Installation on an aluminium heat sink is required for effective thermal control and warranty protection. Supplied in a 5m length, it is backed by a 3+2 year replacement warranty, providing a reliable and efficient lighting solution.
LENGTH: 5000mm
IP RATING: IP54 (weather-resistant)
VOLTAGE: 24V DC
LED WATTAGE: 20W (per metre)
LED TYPE: COB (640 LEDs per metre)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 4000K (cool white)
LUMENS: 2000lm (per metre)
CRI: ≥90
BEAM ANGLE: 180°
DIMMABLE: Yes
LIFE SPAN: 50,000 hours
WIRING: Parallel
CUTTING INCREMENT: 25mm
CONTINUOUS RUN: 3000mm (one end driver feed), 6000mm (two end driver feed)
AMBIENT TEMP: -20°C to 50°C
STORAGE TEMP: -30°C to 80°C
DRIVER: Requires 24V DC constant voltage LED driver (not included)
INSTALLATION: Requires installation on aluminium heat sink (failure to do so will void warranty)
APPLICATIONS: Indoor use only - suitable for indoor wet areas
PHOTOMETRIC DATA: Available upon request
WARRANTY: 3+2 years (replacement)
