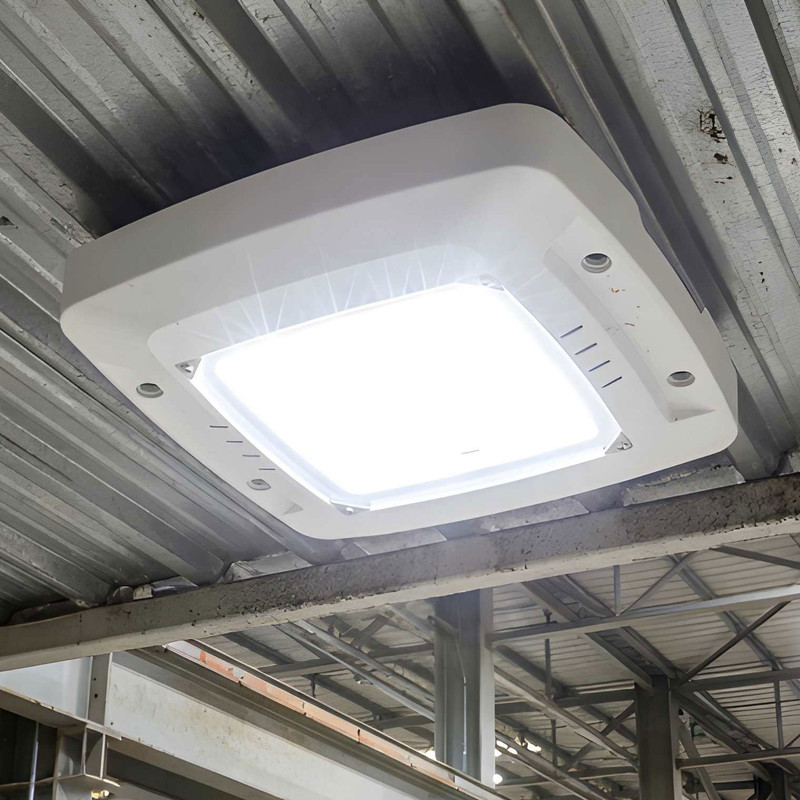

This commercial grade low bay light is engineered to deliver high-performance illumination in demanding outdoor and semi-industrial environments. Constructed from durable die-cast aluminium, the fitting provides excellent structural integrity and efficient thermal dissipation, ensuring stable operation and long-term reliability. Its compact, low-profile design combined with a surface-mounted configuration makes it ideal for canopy installations where space efficiency and robust construction are critical.
Operating with adjustable wattage settings of 120W, 90W, 60W, and 36W, this luminaire offers flexible energy management while delivering up to 19920 lumens of high-output illumination. The integrated SMD LED system ensures consistent luminous efficacy and uniform light distribution across a wide 120° beam angle. With a colour rendering index of 80, the fitting provides accurate visual clarity suitable for functional lighting applications where visibility and safety are essential.
The fitting incorporates Tri-CCT technology, allowing seamless switching between 3000K (warm white), 4000K (cool white), and 5000K (daylight white) to suit varying operational requirements and environmental conditions. Designed for resilience, it features an IP65 rating for full weatherproof protection and an IK08 rating for impact resistance, making it suitable for exposed installations. The unit supports 0-10V dimming, enabling compatibility with lighting control systems for enhanced efficiency and adaptability.
With a lifespan of 50000 hours and an operating temperature range of -30°C to 50°C, this luminaire is built to perform reliably in extreme conditions. Measuring 369.5mm x 368.5mm x 65mm and weighing 3.9kg, it offers a balanced combination of durability and manageable installation. Suitable for car parks, petrol stations, drive-through restaurants, loading docks, and truck stops, this fitting represents a dependable and high-quality lighting solution backed by LM-80 and RCM compliance and a 5-year warranty.
COLOUR: White
MATERIAL: Aluminium (die-cast)
WATTAGE: 120W/90W/60W/36W (adjustable)
GLOBE: LED (includes fixed LED chips in fitting)
LUMENS: 19920lm / 14940lm / 9960lm / 5976lm
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white) and 5000K (daylight white)
CRI: 80
BEAM ANGLE: 120°
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
DIMENSIONS: 369.5mm x 368.5mm x 65mm
WEIGHT: 3.9kg
VOLTAGE: 220-240V AC 50Hz
LIFE SPAN: 50000 hours
WORKING TEMP: -30°C to 50°C
DIMMABLE: Yes (0-10V)
COMPLIANCE: LM-80, RCM
PHOTOMETRIC DATA: Available upon request
FEATURES: Architecturally designed fitting; die-cast heat sink for thermal performance
WARRANTY: 5 years
MOUNTING: Surface mounted
LED SOURCE: SMD
WIRING METHOD: Hardwire
APPLICATIONS: Car parks, petrol stations, drive-through restaurants, loading docks, truck stops
