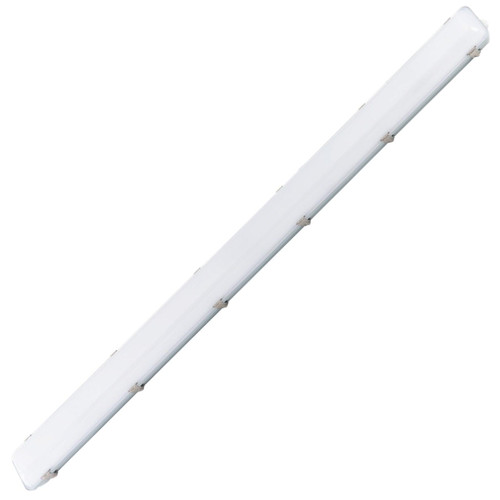

This commercial grade LED batten light is engineered to deliver high-performance illumination for demanding commercial and industrial environments, combining robust construction with advanced optical control to ensure reliable operation in both indoor and outdoor applications. The luminaire is rated to IP65 (fully weatherproof) and IK08 (impact and vandal resistant), providing effective protection against dust ingress, water exposure, and mechanical impact. Its Class I electrical classification supports safe operation when correctly connected to earth, making it suitable for use in warehouses, retail stores, garages, parking areas, and industrial environments where durability and compliance are essential.
The integrated solid-state light source utilises fixed LED chips to deliver stable and efficient luminous output without the need for replaceable globes. The fitting offers selectable colour temperature options of 3000K (warm white), 4000K (cool white), and 6000K (daylight white), enabling optimisation of visual comfort and task-specific illumination across different environments. High-quality light rendering is achieved with a colour rendering index of >80, supporting accurate colour perception in workspaces, while the luminaire is specified as not dimmable to maintain consistent performance under standard operating conditions.
Electrical performance is enhanced through a dual power selectable configuration, allowing operation at 30W or 60W to balance energy efficiency with illumination requirements. At its optimal configuration, the luminaire delivers up to 7200lm at 4000K (cool white), with corresponding outputs of 6000lm at 3000K (warm white) and 6000K (daylight white). A wide 120° beam angle ensures broad and uniform light distribution across large surface areas, reducing shadowing and supporting effective ambient illumination in open-plan and circulation spaces.
The batten light features a streamlined form factor with overall dimensions of 1560mm (length) x 117mm (width) x 79mm (height), allowing straightforward integration into surface-mounted lighting layouts. Installation efficiency is enhanced by the inclusion of a large terminal block for easy installation, supporting secure electrical termination and reduced installation time. Backed by a 3 years warranty, this luminaire represents a durable and professionally specified lighting solution designed for long-term performance in challenging commercial and industrial environments.
COLOUR: White
DIMENSIONS: 1560mm (length) x 117mm (width) x 79mm (height)
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08 (impact and vandal resistant)
CLASSIFICATION: Class I
WATTAGE: 30W / 60W (dual power selectable)
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6000K (daylight white)
LUMENS: 6000lm (3000K), 7200lm (4000K), 6000lm (6000K)
DIMMABLE: No
CRI: >80
BEAM ANGLE: 120°

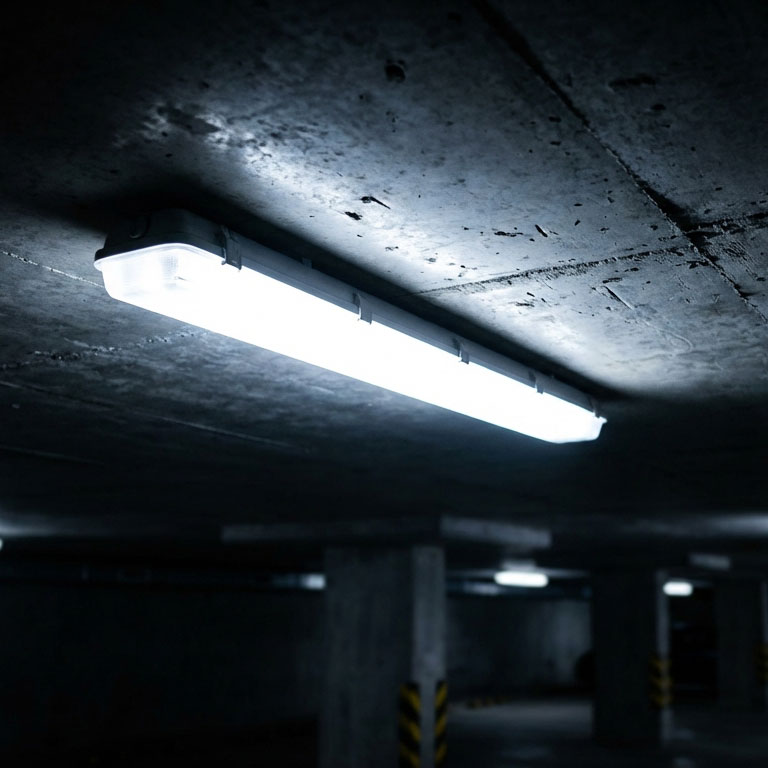

APPLICATIONS: Warehouses, retail stores, garages, parking areas, industrial environments
INSTALLATION: Large terminal block for easy installation
WARRANTY: 3 years
