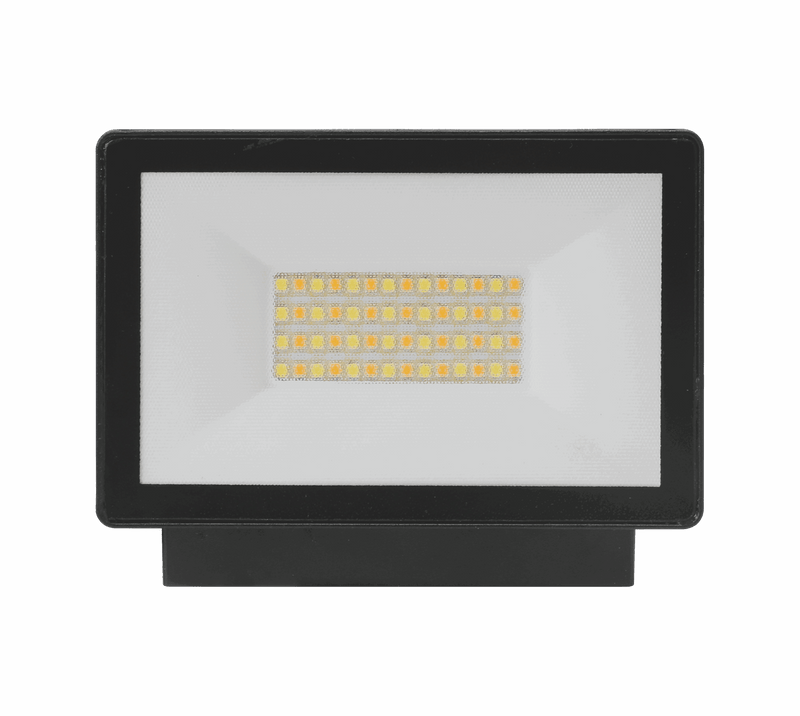

This LED floodlight is designed as a compact and high-performance exterior lighting solution for applications requiring reliable, uniform illumination and long-term durability. The luminaire is constructed from a matt black aluminium housing with a tempered glass lens and a stainless steel angled mounting bracket, providing excellent structural rigidity and resistance to environmental exposure. Its low-profile form factor, featuring a housing width of 140mm and an overall height of 95mm, allows seamless integration into architectural surfaces while maintaining robust mechanical integrity for outdoor installations.
The integrated LED light source delivers a maximum luminous output of 2000lm, distributed through a 100° beam angle to achieve wide and even light coverage. The fitting incorporates Tri-CCT selectable technology, enabling selection between 3000K (warm white), 4000K (cool white), and 5000K (daylight white) to suit varying functional and visual lighting requirements. With a colour rendering index of Ra>80, the luminaire ensures accurate colour reproduction and high visual clarity in external environments.
Operating at a total LED wattage of 20W and powered by a 220-240V 50Hz supply, the floodlight is engineered for energy-efficient performance with consistent luminous output. The LED system provides a rated service life of 30,000 hours at Ta25°C, reducing maintenance requirements and supporting long-term operational reliability. Protection against dust and water ingress is ensured by an IP65 (fully weatherproof) rating, making the luminaire suitable for exposed outdoor locations.
The floodlight is designed for surface mounting and is supplied with a 0.6m flex and plug to facilitate straightforward installation. An adjustable mounting bracket allows 180° vertical tilt and 45° rotational adjustment, enabling precise aiming of the light beam to suit the installation environment. Classified as Class I electrical equipment, installation must be carried out by a licensed electrician, with a 2-year replacement warranty applicable under correct installation conditions. This luminaire delivers a durable, efficient, and professionally engineered lighting solution for exterior applications.
COLOUR: Matt Black
MATERIAL: Aluminium housing with tempered glass; stainless steel angled bracket
DIMENSIONS: 140mm (width) x 95mm (height) x 50mm (depth)
IP RATING: IP65 (fully weatherproof)
MOTION SENSOR: No
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 1600lm (3000K), 2000lm (4000K), 1700lm (5000K)
CRI: Ra>80
BEAM ANGLE: 100°
LIFE SPAN: 30,000 hours @ Ta25°C
LED WATTAGE: 20W
VOLTAGE: 220-240V 50Hz
CAPABILITIES: Tilt up/down rotation 180° / 45°
ELECTRICAL CLASS: Class I
INCLUDES: 0.6m flex & plug
APPLICATIONS: Entrances, alfresco areas and exterior applications; security lighting and safety
MOUNTING: Surface mounted
COMPLIANCE: Aust/NZ Approval No. SAA220552
INSTALLATION: By licensed electrician only (warranty applies only if installed by a licensed electrician)
WARRANTY: 2 years (replacement)
